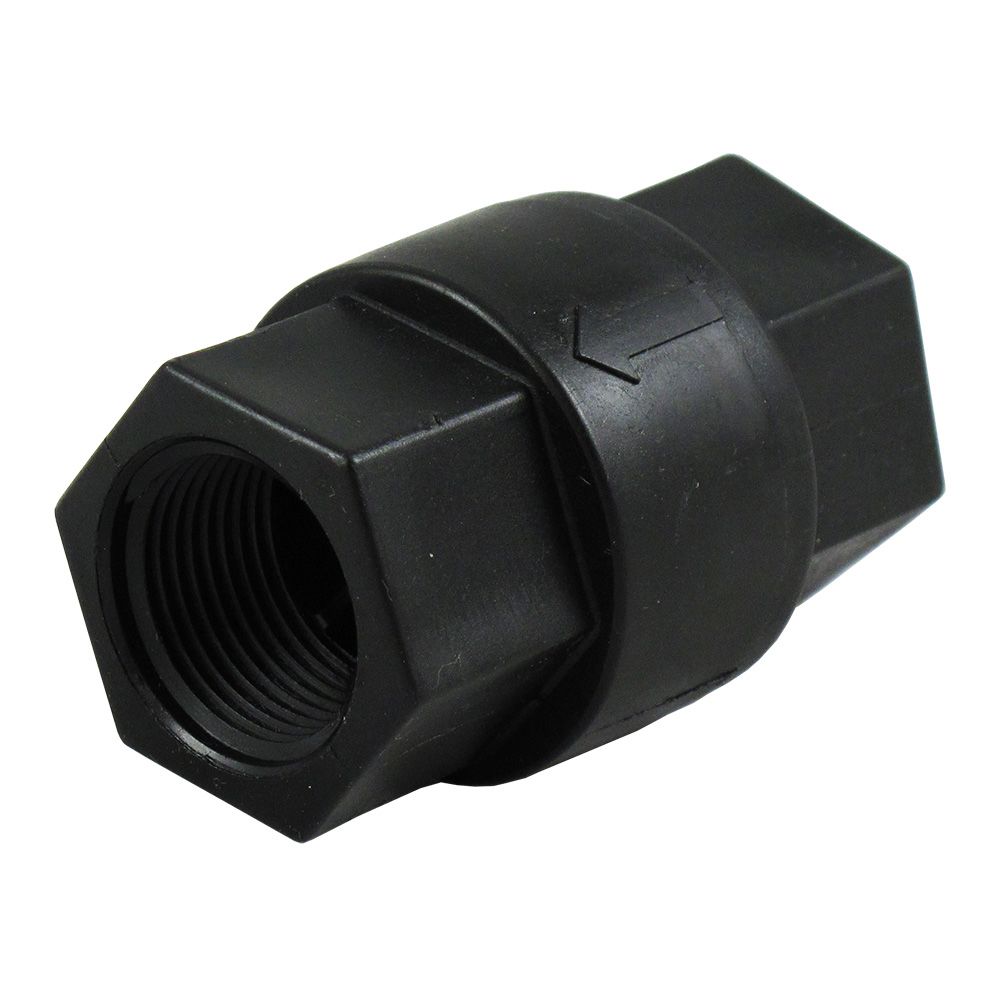

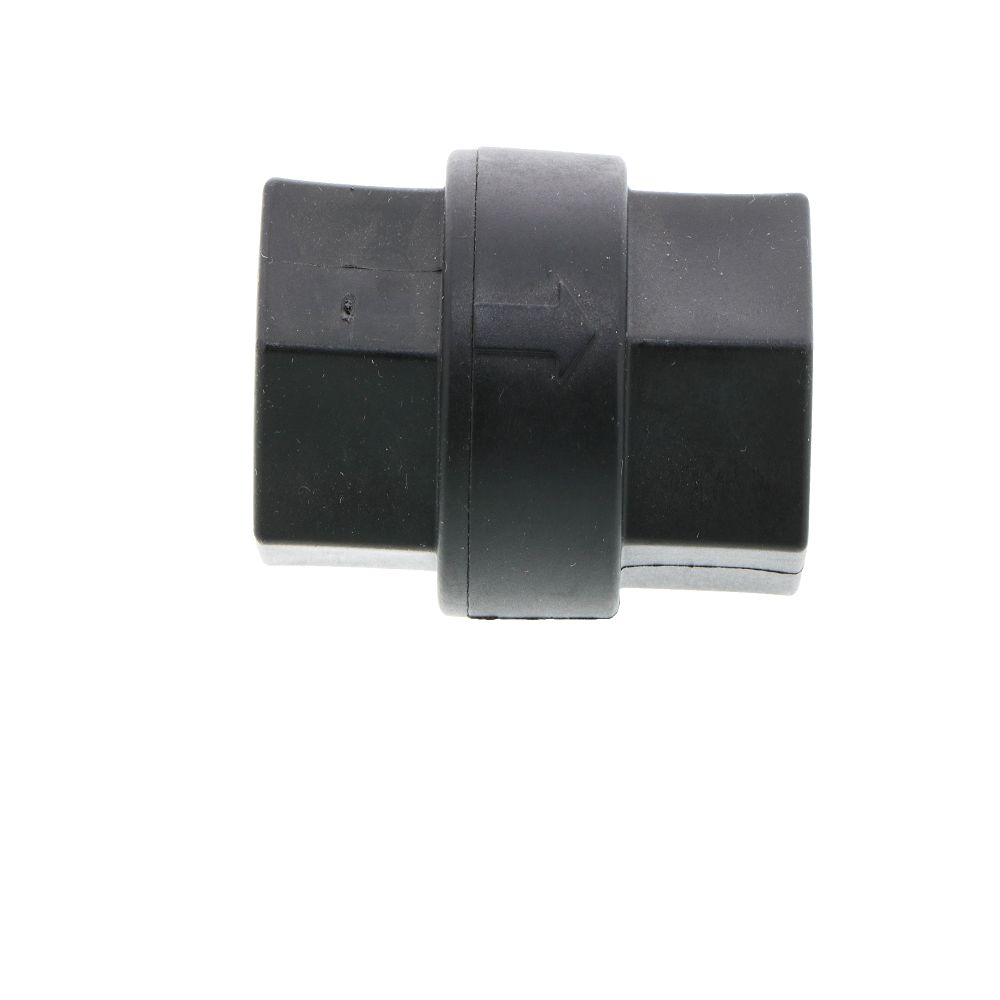

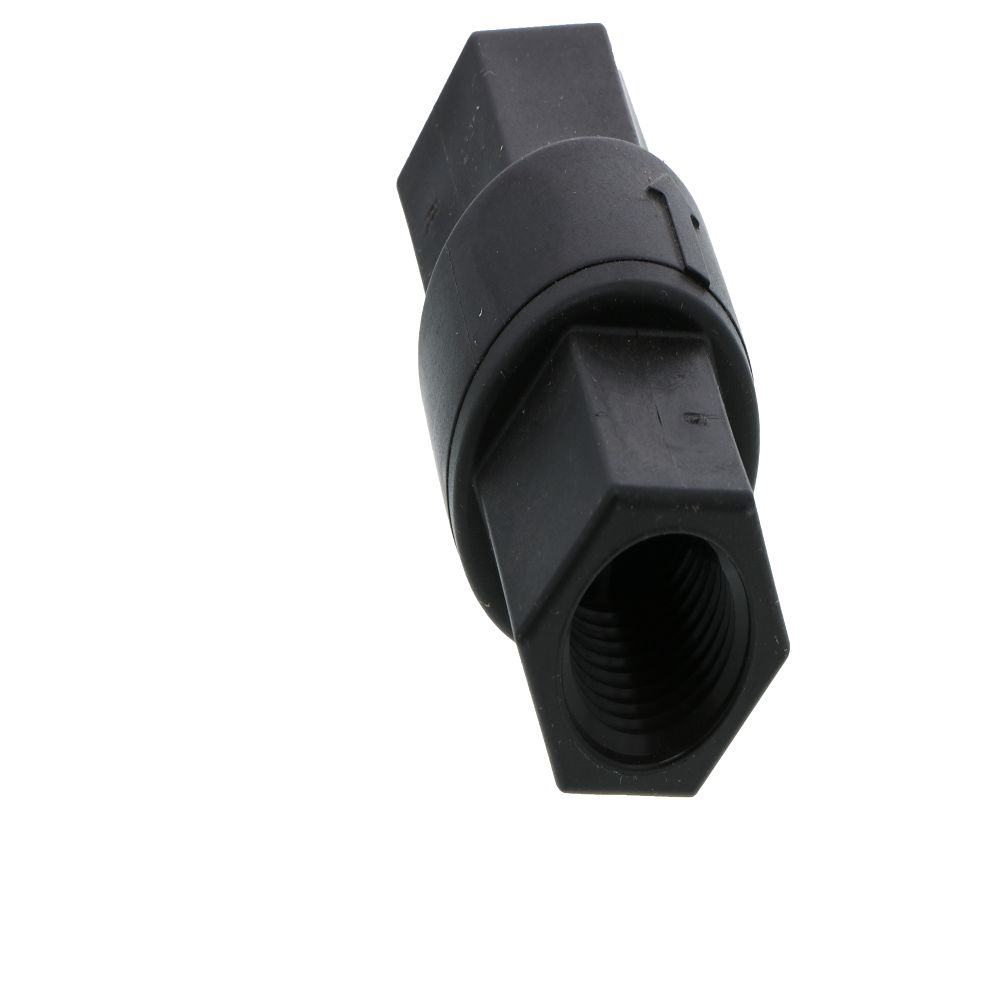

Inline Poppet Check Valve 685 Series PP 1/2" FPT - BUNA

6850090 SMCFP CHK 685-8F8F-B
Mouse over to view larger image.

Model: 685 Series
Part Number: 6850090
Alt. Part Number: FP CHK 685-8F8F-B
In Stock, Ready to Ship!
MSRP: $16.20
Price: $11.57
5+ for $11.54 ea
10+ for $11.51 ea
20+ for $11.48 ea
Qty:

How do we compare?
$13.49 $1.92 more ea @ Zoro
  as of Jun 11, 2018
$15.55 $3.98 more ea @ grainger.com
  as of Jun 11, 2018
$17.16 $5.59 more ea @ mscdirect.com
  as of Jun 11, 2018

The 685 Series Inline Poppet Check Valve 1/2" FPT:


The 685 Series Poppet Check Valve Prevents reverse flow and cross contamination and incorporates a thin elastomer disc supported by a poppet that seals on the seat. Pressure in the flow direction moves the seal off the seat first before pressure builds enough to move the poppet away from the seat. The 685 Series Check Valve maximum operating pressure of 125 psi covers a wide range of air and fluid applications. The 685 Check is a compact design with a light cracking pressure, high flow rate, and a positive seal at very low back pressure or slight vacuum. For higher cracking pressure applications, an embedded o-ring poppet is substituted for the standard elastomer disc poppet.

Material Polypropylene Body & Poppet, Black.  Custom order: White
Seal Buna-N.  Custom order:  Ethylene Propylene or Fluoroelastomer (Viton®)
Inlet x Outlet1/2 Female NPT X 1/2 Female NPT
1/2 Female NPT x 1/2 Male NPT
1/2 Male NPT x 1/2 Female NPT
1/2 Male NPT x 1/2 Male NPT
Cracking Pressure 302 Stainless Spring @ 1/3 psi.  Custom order:  1, 3, 7 psi or Hastelloy Spring @ 1/3, 1, 3 psi.
Certifications
USA
Dimensions
General
Material
Polypropylene
Operating Condition
125 psi
Mouse over for more information.
