Doulton

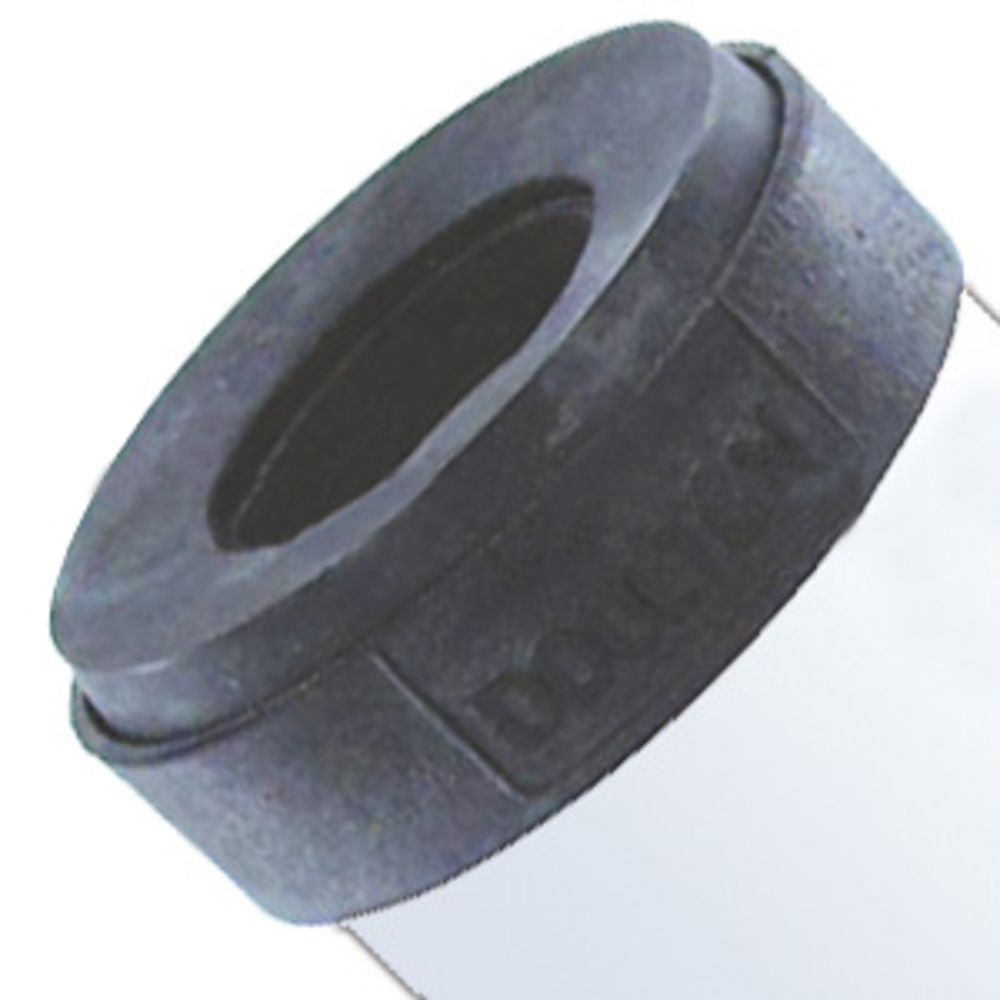

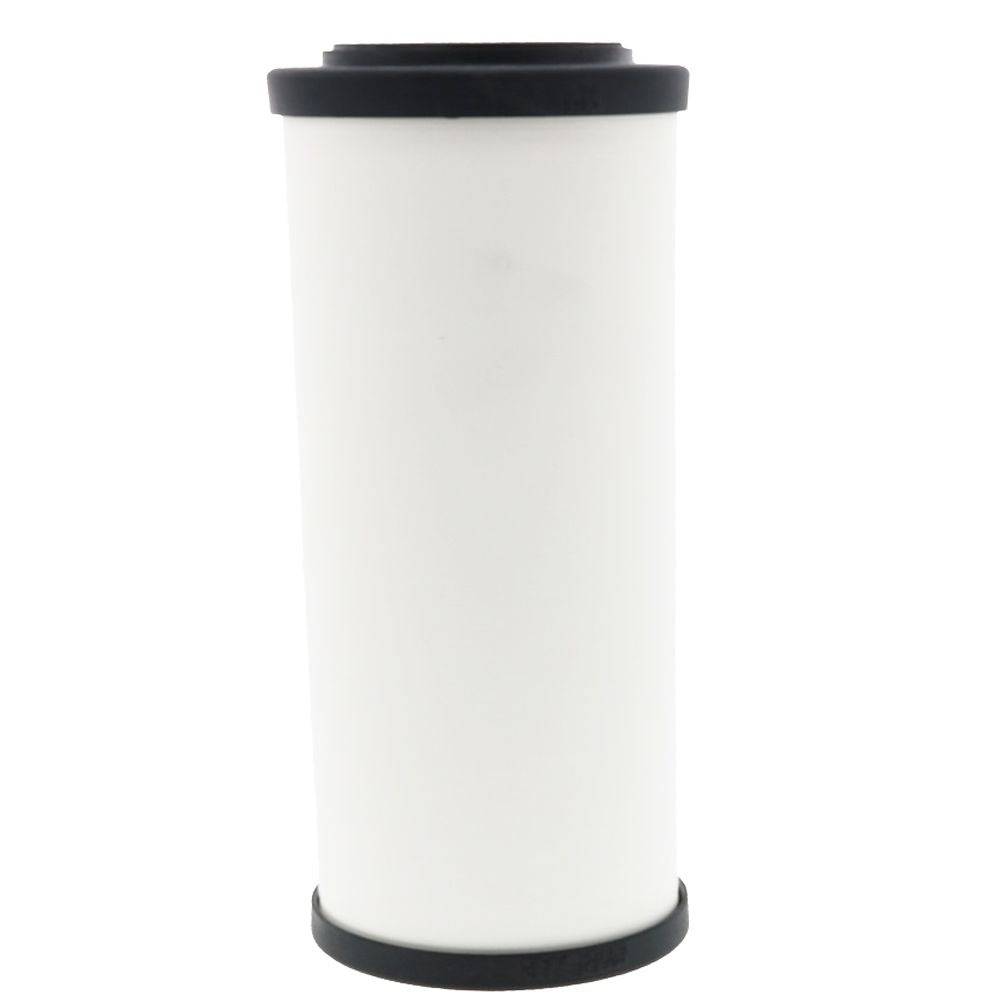

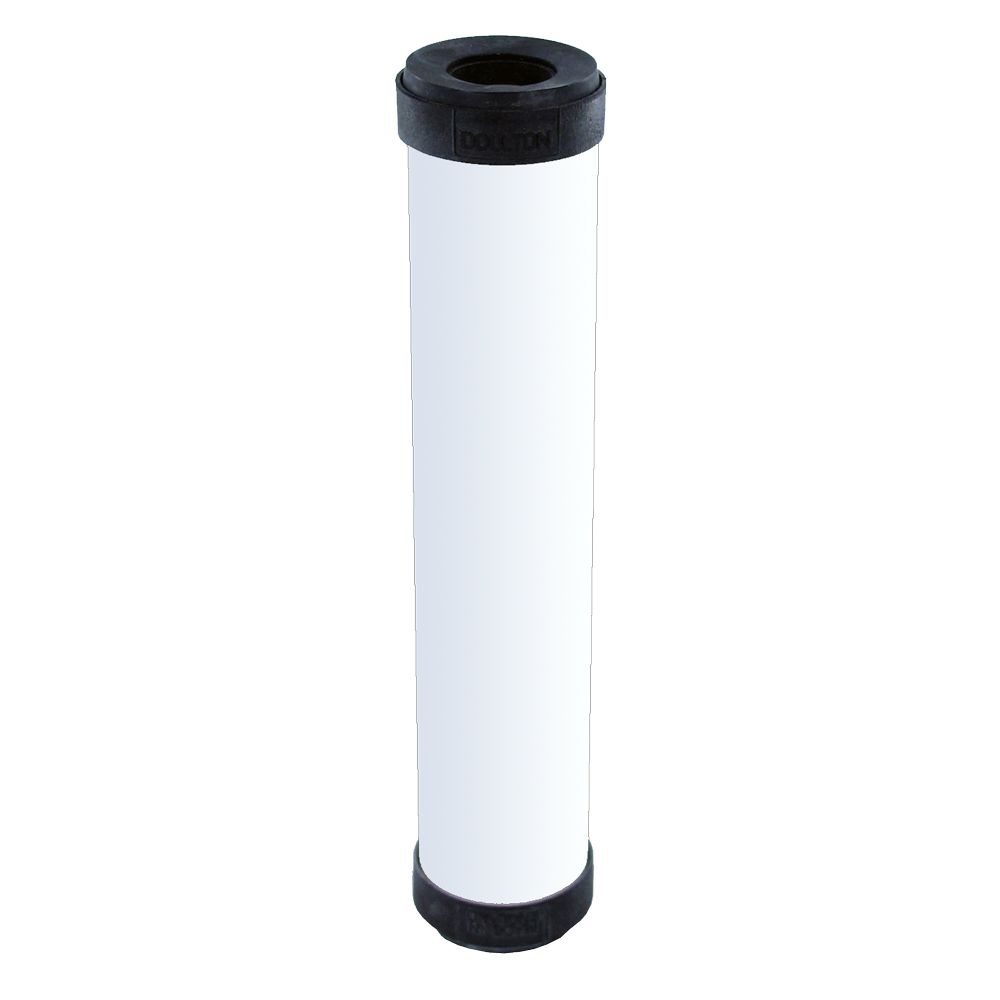

Doulton W9223022 Imperial Ultracarb OBE Ceramic Filter

Part Number: W9223022

Alt. Part Number: (formerly p/n's W9223013, W9223006)

In Stock

out of stock

In Stock

$65.99

The Doulton W9223022 “Imperial" elements are designed to fit in most “industry standard" 10 inch housings offering a greater flow rate over the “Slimline" filter elements. All Imperial filters measure 2-3/4" in diameter and 9-3/4" in length. All ceramic elements are based upon the Sterasyl outer shell with various types of core materials for different applications.

The 10" Imperial Ultracarb ceramic filter is manufactured with the highly consistent and controlled pore structure necessary to remove a wide range of water borne contaminants over the life of the ceramic cartridge.
In addition to find particulate matter, bacteria, cysts, and turbidity are removed to a high level of efficiency.

The Doulton Imperial Ultracarb ceramic filter incorporates silver locked within the ceramic structure inhibits the growth of bacteria and gives each cartridge enhanced bacteriostatic and self-sterilizing properties.

Doulton Imperial Ultracarb 10" Ceramic Filter Features:
  • The Doulton W9223022 filter is ideal for RO guard and post filtration
  • Complimentary to UV systems
  • Filtration efficiency of >99.99% at 0.9 micron
  • Filtration efficiency of >99.99% at 0.5 to 0.8 micron
  • Highly efficient bacteriological filtration
  • Tested with live cryptosporidium to a removal efficiency > 99.999%
NOTE: Fits most standard 10" housings, excluding Doulton housings. Replaces p/n W9223013, W9223006



Weight & Dimensions

Weight (lbs)

1.8

Approx Length (Inches)

9-3/4" (24.8 cm)

Details

Max Temp (°F)

100

Max Pressure (Psi)

125

Min Temp (°F)

40

Min Pressure (Psi)

10

Capacity

2000 Gallons, 12 Months

Cartridge Style

Drop-In

Case Quantity

9

End Cap Type

Double Open Ended (DOE)

Filter Application

Sediment/Dirt/Rust, Chlorine/Taste/Odor, Lead, Cyst Reduction, Bacteria Reduction

Flow Rate

.9 GPM

Media Type

Ceramic

Micron Rating (Absolute)

0.9 µm

Micron Rating (Nominal)

0.5-0.8 µm

Origin

England

Outer Diameter

2-3/4"

Warranty & Certifications

Certifications

NSF 42; NSF 53


Doulton

Doulton




The Doulton W9223022 “Imperial" elements are designed to fit in most “industry standard" 10 inch housings offering a greater flow rate over the “Slimline" filter elements. All Imperial filters measure 2-3/4" in diameter and 9-3/4" in length. All ceramic elements are based upon the Sterasyl outer shell with various types of core materials for different applications.

The 10" Imperial Ultracarb ceramic filter is manufactured with the highly consistent and controlled pore structure necessary to remove a wide range of water borne contaminants over the life of the ceramic cartridge.
In addition to find particulate matter, bacteria, cysts, and turbidity are removed to a high level of efficiency.

The Doulton Imperial Ultracarb ceramic filter incorporates silver locked within the ceramic structure inhibits the growth of bacteria and gives each cartridge enhanced bacteriostatic and self-sterilizing properties.

Doulton Imperial Ultracarb 10" Ceramic Filter Features:
  • The Doulton W9223022 filter is ideal for RO guard and post filtration
  • Complimentary to UV systems
  • Filtration efficiency of >99.99% at 0.9 micron
  • Filtration efficiency of >99.99% at 0.5 to 0.8 micron
  • Highly efficient bacteriological filtration
  • Tested with live cryptosporidium to a removal efficiency > 99.999%
NOTE: Fits most standard 10" housings, excluding Doulton housings. Replaces p/n W9223013, W9223006


Weight & Dimensions

Weight (lbs)

1.8

Approx Length (Inches)

9-3/4" (24.8 cm)

Details

Max Temp (°F)

100

Max Pressure (Psi)

125

Min Temp (°F)

40

Min Pressure (Psi)

10

Capacity

2000 Gallons, 12 Months

Cartridge Style

Drop-In

Case Quantity

9

End Cap Type

Double Open Ended (DOE)

Filter Application

Sediment/Dirt/Rust, Chlorine/Taste/Odor, Lead, Cyst Reduction, Bacteria Reduction

Flow Rate

.9 GPM

Media Type

Ceramic

Micron Rating (Absolute)

0.9 µm

Micron Rating (Nominal)

0.5-0.8 µm

Origin

England

Outer Diameter

2-3/4"

Warranty & Certifications

Certifications

NSF 42; NSF 53
