Eco-Tech

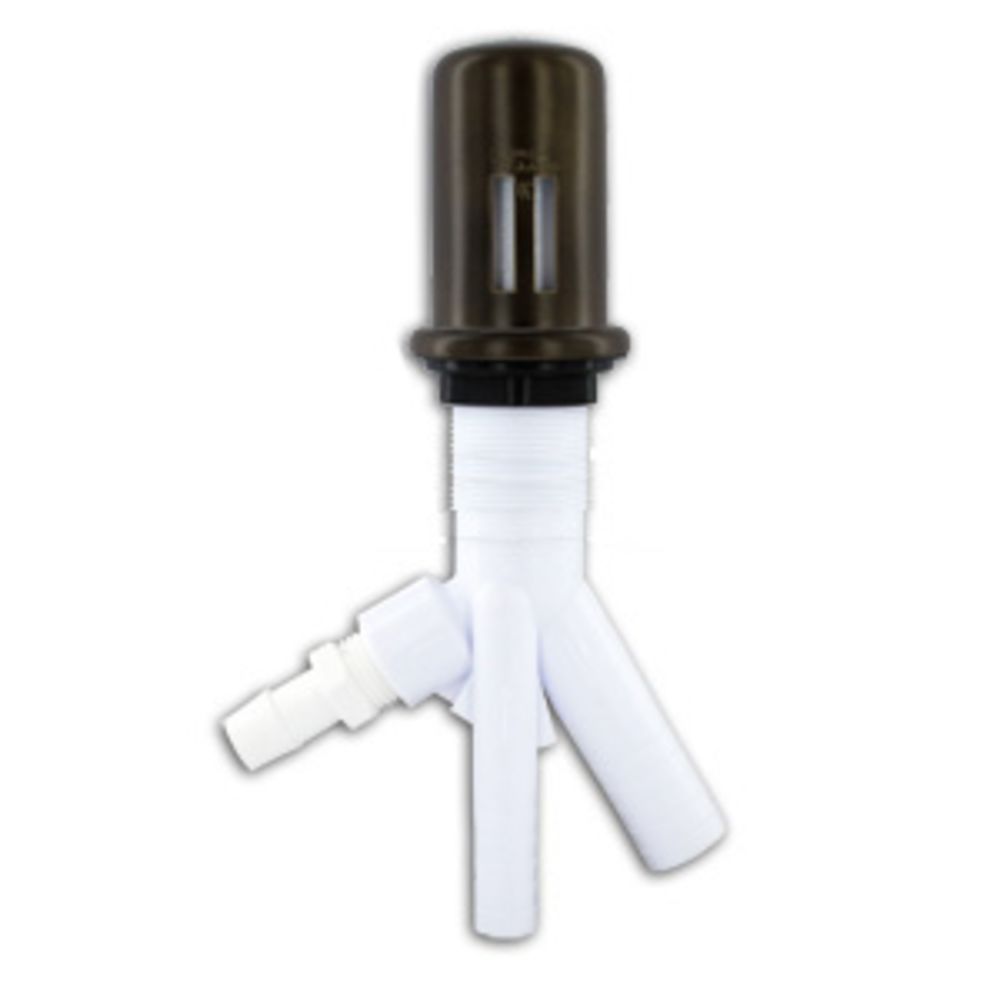

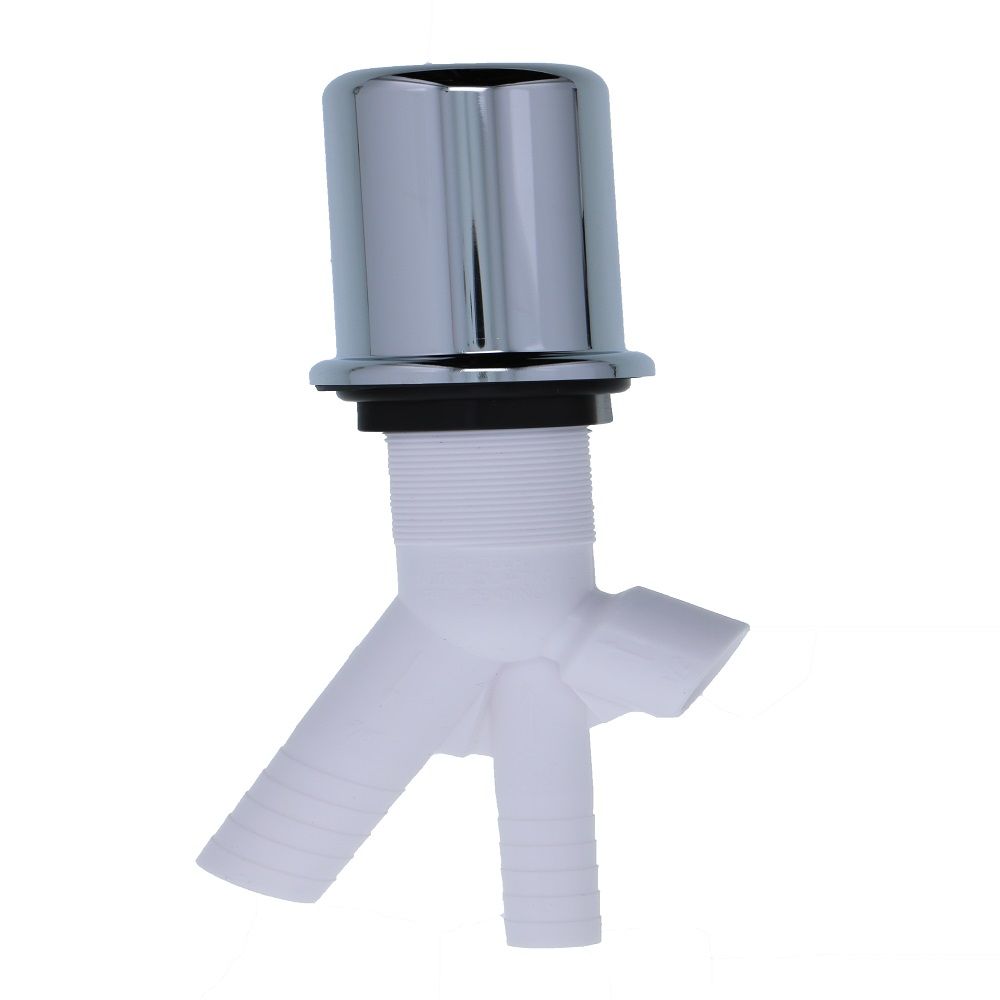

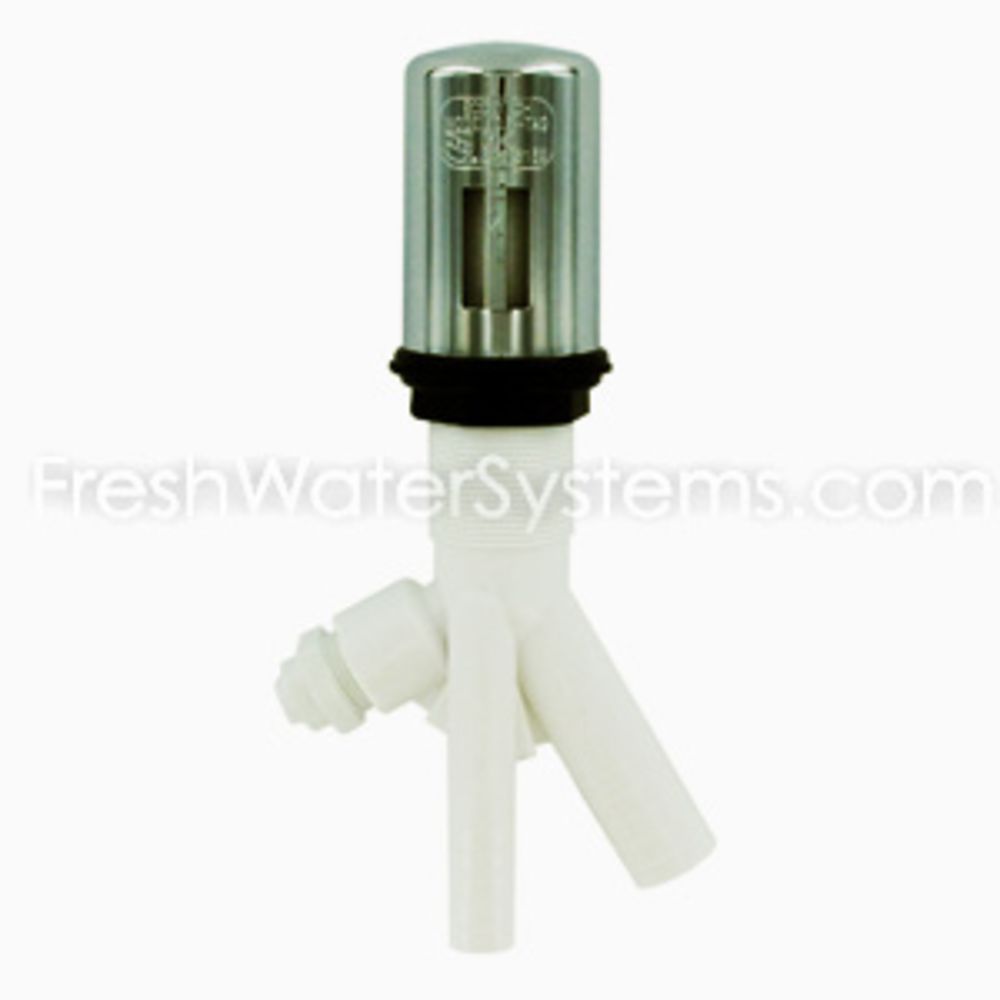

Twin Inlet High Flow Dual Air Gap with Brass Cover Cap

Part Number: TAG-NC-NF|TAG-CB-CH

Alt. Part Number: DLA-TAG

In Stock

out of stock

In Stock

$27.59

The DLA-TAG is a two inlet airgap (TAG) that connects two separate drain lines to a single countertop dishwasher air-gap device. The TAG dual inlet dishwasher air gap is specifically designed for double dishwasher drawers or to connect drain lines from any combination of dishwasher, Reverse Osmosis or water softeners. The DLA-TAG is also known as a double air gap.

Features:
  • Ideal for Reverse Osmosis appliances
  • Ideal Dual Air Gap for Double Drawers
  • Ideal for two dishwashers or any dishwasher with high output (high flow rates) drain discharge such as Hobart, Miele and Bosch
  • Expensive Air Gap Faucet no longer required and allows for a larger selection of designer faucets
  • Eliminate noisy drains
  • Allows for legal installation - eliminates need for drain saddles which are commonly used and cause leaks

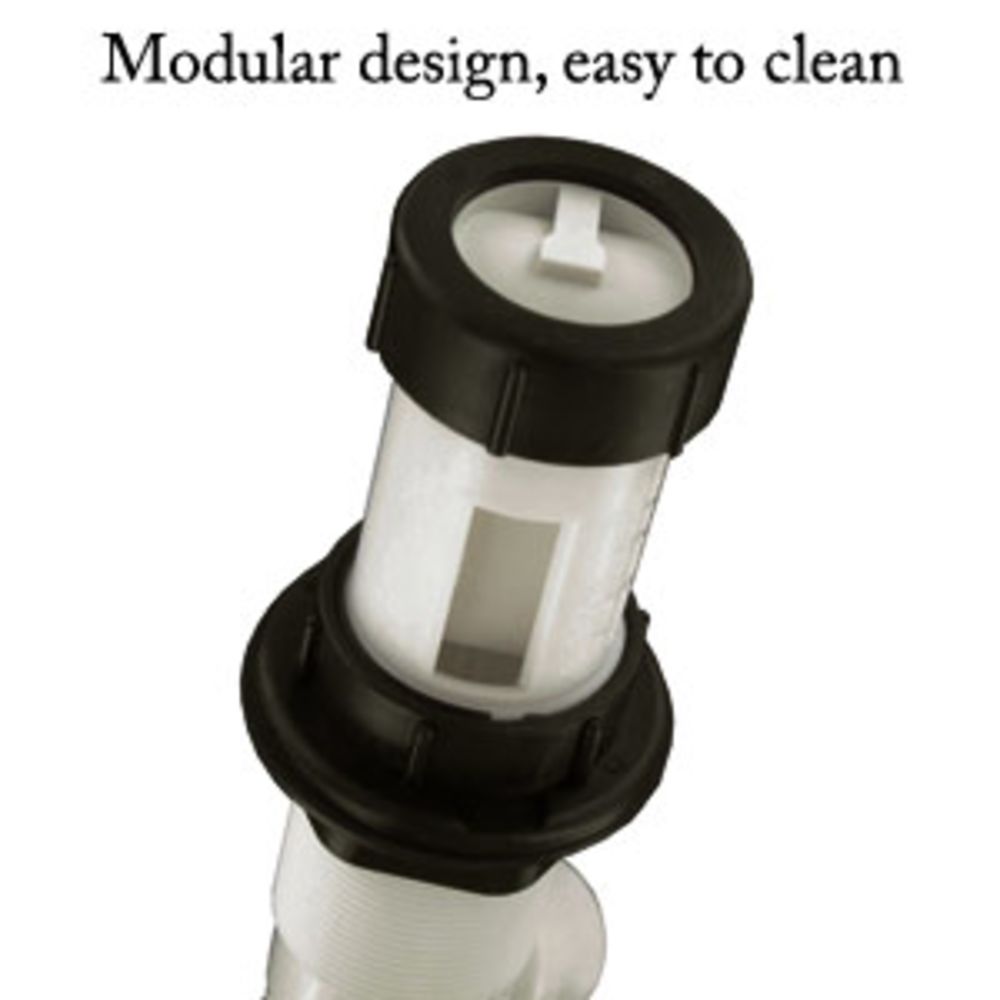

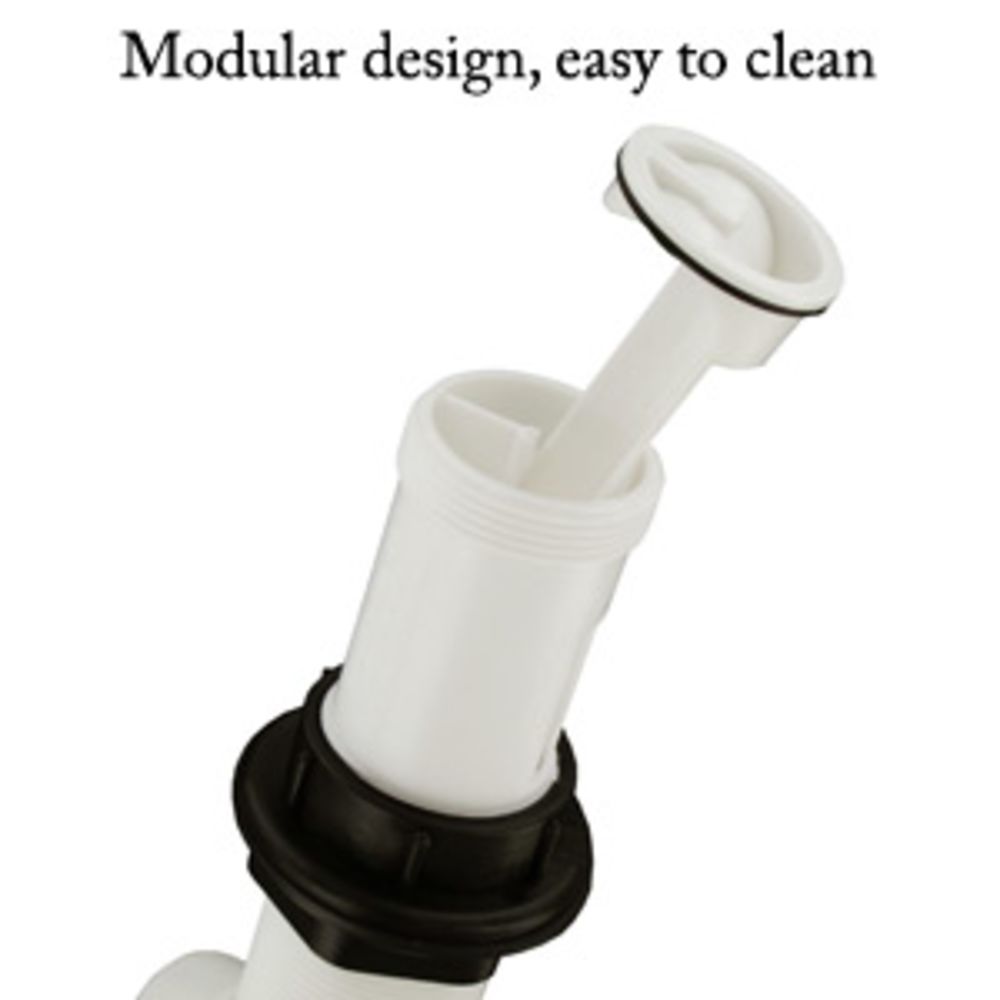

Retrofit existing dishwasher airgap, or install as new.  For single inlet installations, a PVC 1/2" plugs and vinyl end caps are available to seal off any unused ports. Maintenance can be quickly performed from the countertop, by simply removing decorative cover and top nut to dislodge debris.
  • KitchenAid Architect II Series air gap (including models KUDD01DPPA), KitchenAid Pro Line Series
  • Fisher & Paykel airgap including models DD-224C DCS, DD-224PH DCS
  • Sears Kenmore Elite double drawer air gap

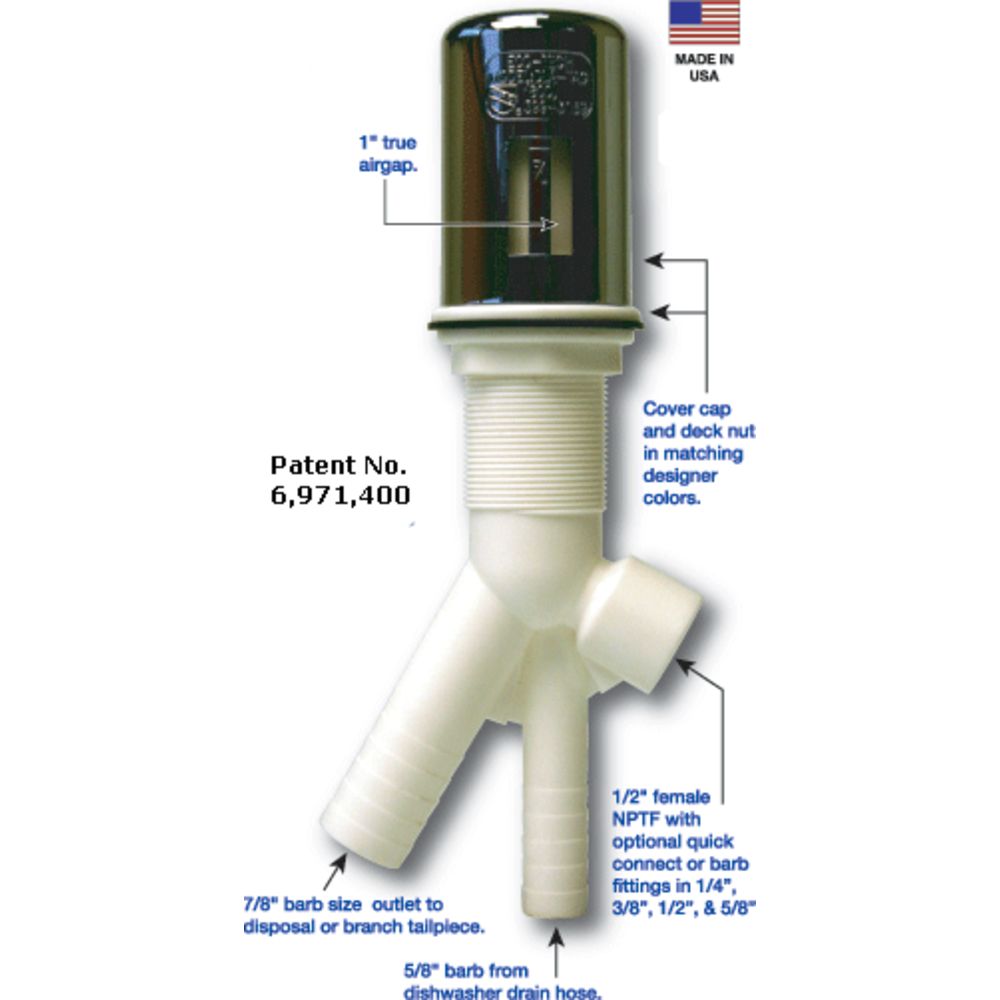

DLA-TAG Specifications:
  • Outlet: 7/8" Barb
  • Max Counter Thickness: 1.5"
  • Hole Size: 1-1/2" - 1-3/8"
  • Inlet #1: 5/8" Barb for dishwasher connection
  • Inlet #2: 1/2" female NPT accepts a variety of MIPT inlet adapter sizes that are available for various applications
  • Flow Rate:  up to 10 GPM
  • air gap
Note: Universal Air Gap Covers will not work with the Twin Inlet Air Gap.


Details

Hole Size

1-1/2 inch(es) – 1-3/8 inch(es) Inches

Max Flow Rate

10 Gallons Per Minute

Origin

USA


Twin




The DLA-TAG is a two inlet airgap (TAG) that connects two separate drain lines to a single countertop dishwasher air-gap device. The TAG dual inlet dishwasher air gap is specifically designed for double dishwasher drawers or to connect drain lines from any combination of dishwasher, Reverse Osmosis or water softeners. The DLA-TAG is also known as a double air gap.

Features:
  • Ideal for Reverse Osmosis appliances
  • Ideal Dual Air Gap for Double Drawers
  • Ideal for two dishwashers or any dishwasher with high output (high flow rates) drain discharge such as Hobart, Miele and Bosch
  • Expensive Air Gap Faucet no longer required and allows for a larger selection of designer faucets
  • Eliminate noisy drains
  • Allows for legal installation - eliminates need for drain saddles which are commonly used and cause leaks
Retrofit existing dishwasher airgap, or install as new.  For single inlet installations, a PVC 1/2" plugs and vinyl end caps are available to seal off any unused ports. Maintenance can be quickly performed from the countertop, by simply removing decorative cover and top nut to dislodge debris.
  • KitchenAid Architect II Series air gap (including models KUDD01DPPA), KitchenAid Pro Line Series
  • Fisher & Paykel airgap including models DD-224C DCS, DD-224PH DCS
  • Sears Kenmore Elite double drawer air gap
DLA-TAG Specifications:
  • Outlet: 7/8" Barb
  • Max Counter Thickness: 1.5"
  • Hole Size: 1-1/2" - 1-3/8"
  • Inlet #1: 5/8" Barb for dishwasher connection
  • Inlet #2: 1/2" female NPT accepts a variety of MIPT inlet adapter sizes that are available for various applications
  • Flow Rate:  up to 10 GPM
  • air gap
Note: Universal Air Gap Covers will not work with the Twin Inlet Air Gap.
