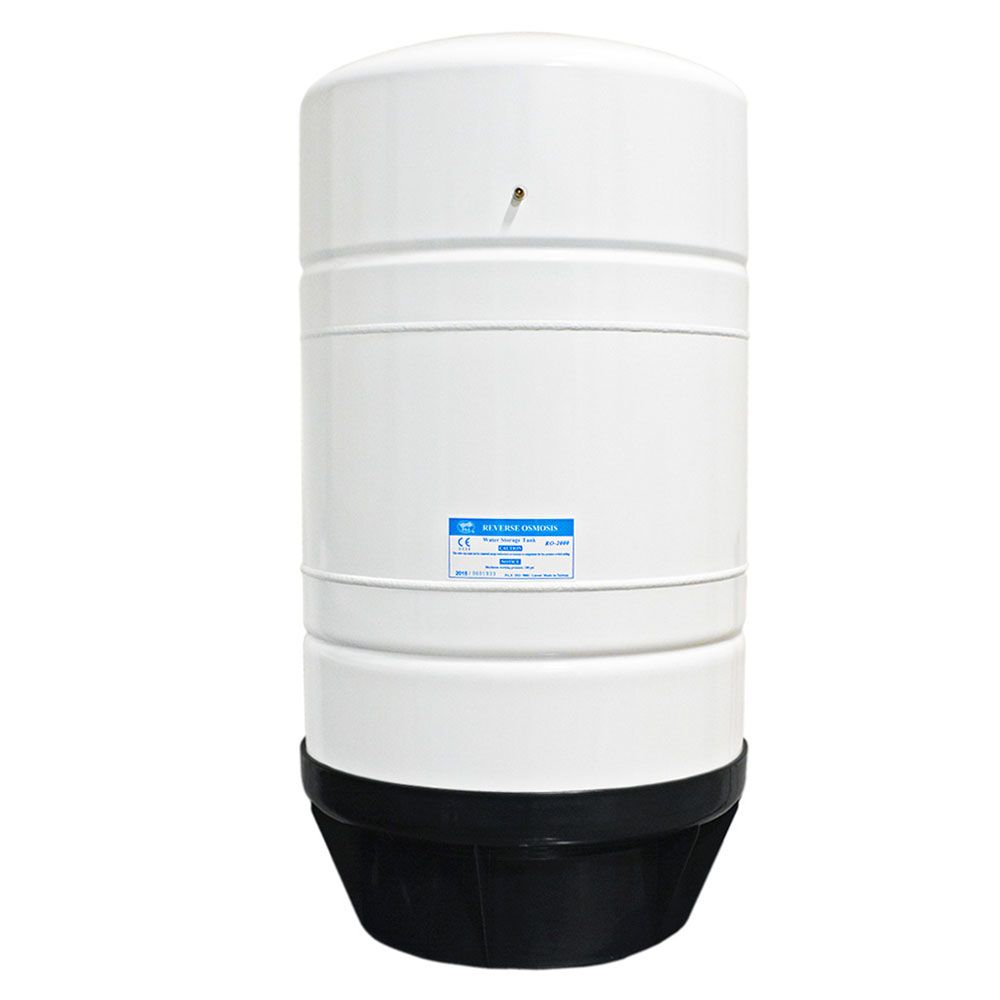

PAE TP-150 Reverse Osmosis Storage Tank Powder Coated Steel 40 Gal

Part Number: ROT-40-10

Alt. Part Number: TP-150

In Stock

out of stock

In Stock

$189.00

The PAE ROT-40-10 is built with FDA approved materials. The water storage chamber features a virgin polypropylene liner, high-grade chlorobutyl diaphragm and stainless steel 1" BSP water connection. The diaphragm is post-cured to ensure that your water is tasteless, odorless and contaminant free. The tank is built with a sealed brass air valve and o-ring sealed cap to ensure a leak-free air chamber.

Features:
  • Certification. The PAE TP-150 is CE approved and certified to meet NSF standard 58. NSF standard 58 was specifically established to provide the minimum requirements for point-of-use (POU) reverse osmosis systems for public or private drinking water.
  • Construction. The PAE TP-150 is coated steel water storage tank that features a two part epoxy primer and a polyurethane paint finish. This tank uses stainless steel water connections, a high-grade chlorobutyl diaphragm, and a virgin polypropylene liner.
  • Clean and Safe Water. The PAE TP-150 diaphragm is post-cured to ensure that your water is tasteless, odorless and contaminant free.


Weight & Dimensions

Weight (lbs)

75

Height W/ Stand

46.90"

Details

Max Pressure (Psi)

100

Capacity

11 Gallons @ 40 psi

Diameter

16.90"

Diaphragm Materials

Butyl Rubber

Material Of Construction

Stainless Steel

Origin

Taiwan

Size

1"

Air Valve Stem Location

Side

Inlet/Outlet Location

Bottom

Tank Pre-Charge

7 PSI

Volume

40 Cubic Feet

Inlet/Outlet Connection

1" BSP

Warranty & Certifications

Certifications

NSF Certified to Standard 58


PAE




The PAE ROT-40-10 is built with FDA approved materials. The water storage chamber features a virgin polypropylene liner, high-grade chlorobutyl diaphragm and stainless steel 1" BSP water connection. The diaphragm is post-cured to ensure that your water is tasteless, odorless and contaminant free. The tank is built with a sealed brass air valve and o-ring sealed cap to ensure a leak-free air chamber.

Features:
  • Certification. The PAE TP-150 is CE approved and certified to meet NSF standard 58. NSF standard 58 was specifically established to provide the minimum requirements for point-of-use (POU) reverse osmosis systems for public or private drinking water.
  • Construction. The PAE TP-150 is coated steel water storage tank that features a two part epoxy primer and a polyurethane paint finish. This tank uses stainless steel water connections, a high-grade chlorobutyl diaphragm, and a virgin polypropylene liner.
  • Clean and Safe Water. The PAE TP-150 diaphragm is post-cured to ensure that your water is tasteless, odorless and contaminant free.

Weight & Dimensions

Weight (lbs)

75

Height W/ Stand

46.90"

Details

Max Pressure (Psi)

100

Capacity

11 Gallons @ 40 psi

Diameter

16.90"

Diaphragm Materials

Butyl Rubber

Material Of Construction

Stainless Steel

Origin

Taiwan

Size

1"

Air Valve Stem Location

Side

Inlet/Outlet Location

Bottom

Tank Pre-Charge

7 PSI

Volume

40 Cubic Feet

Inlet/Outlet Connection

1" BSP

Warranty & Certifications

Certifications

NSF Certified to Standard 58
