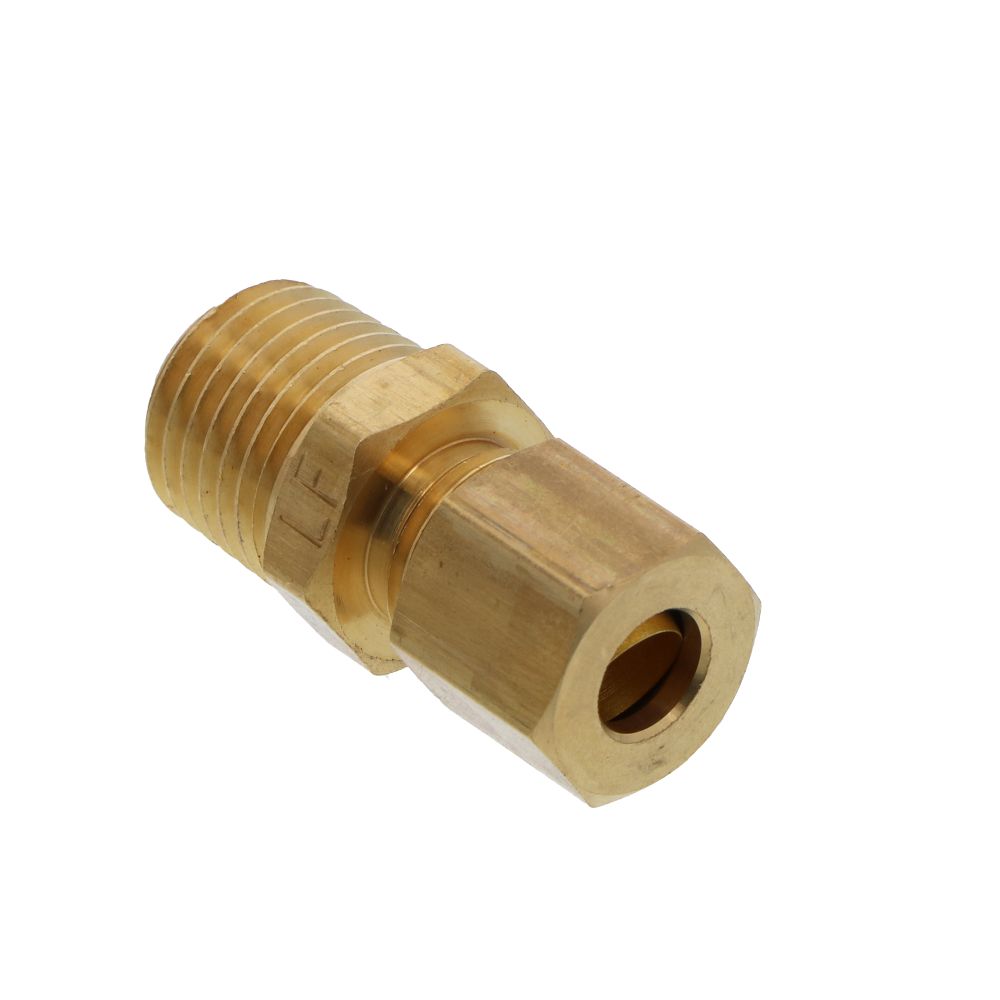

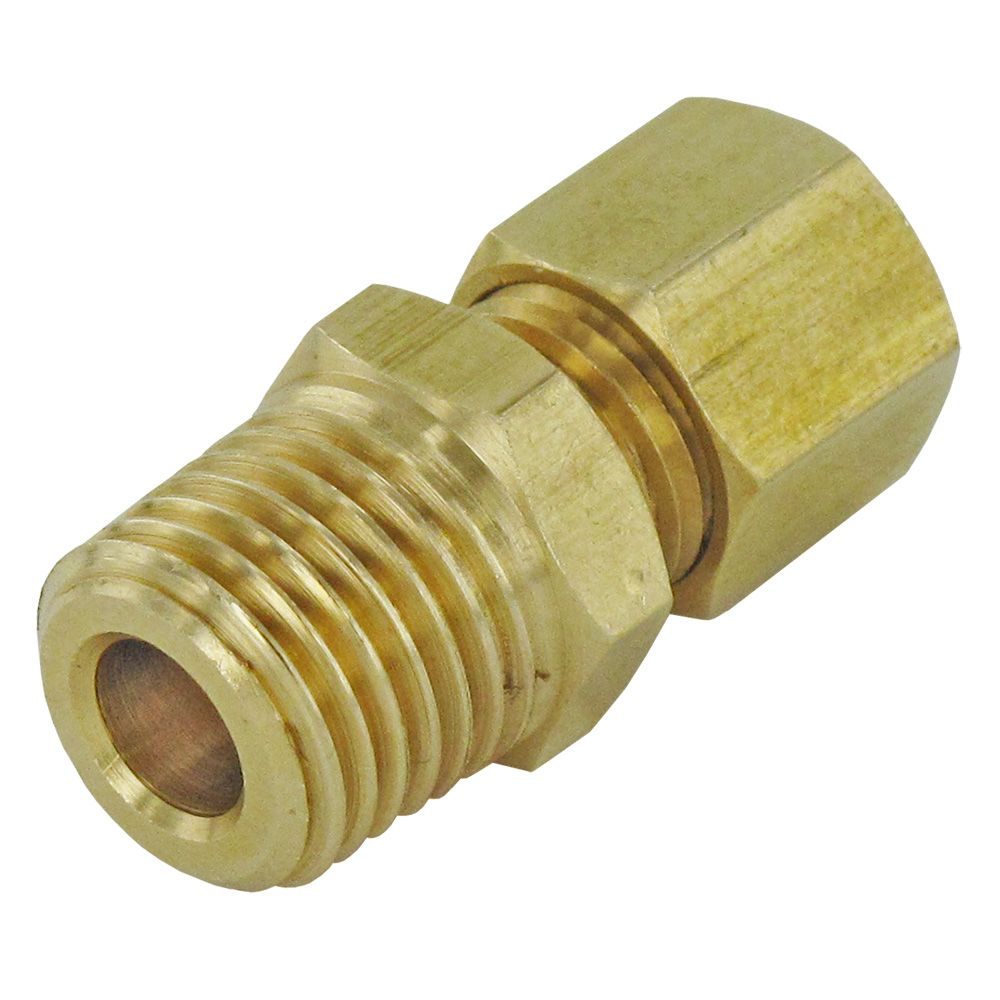

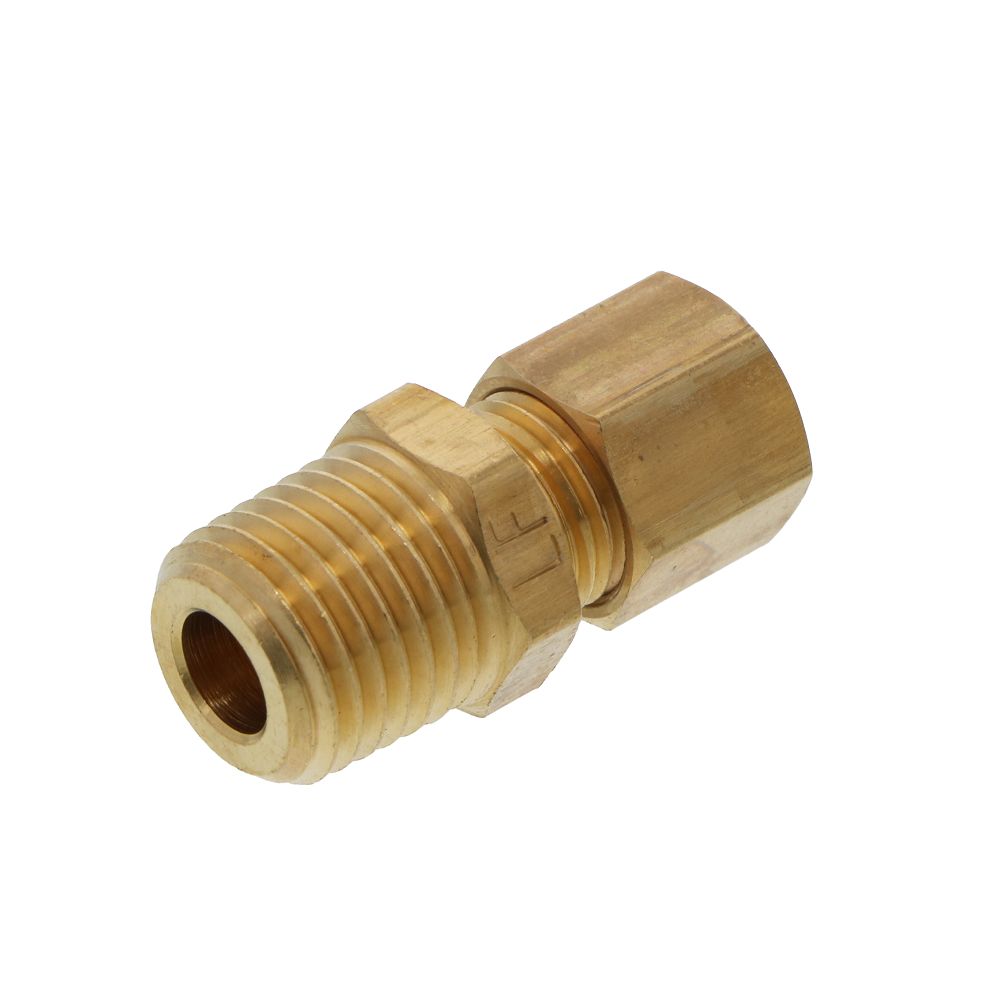

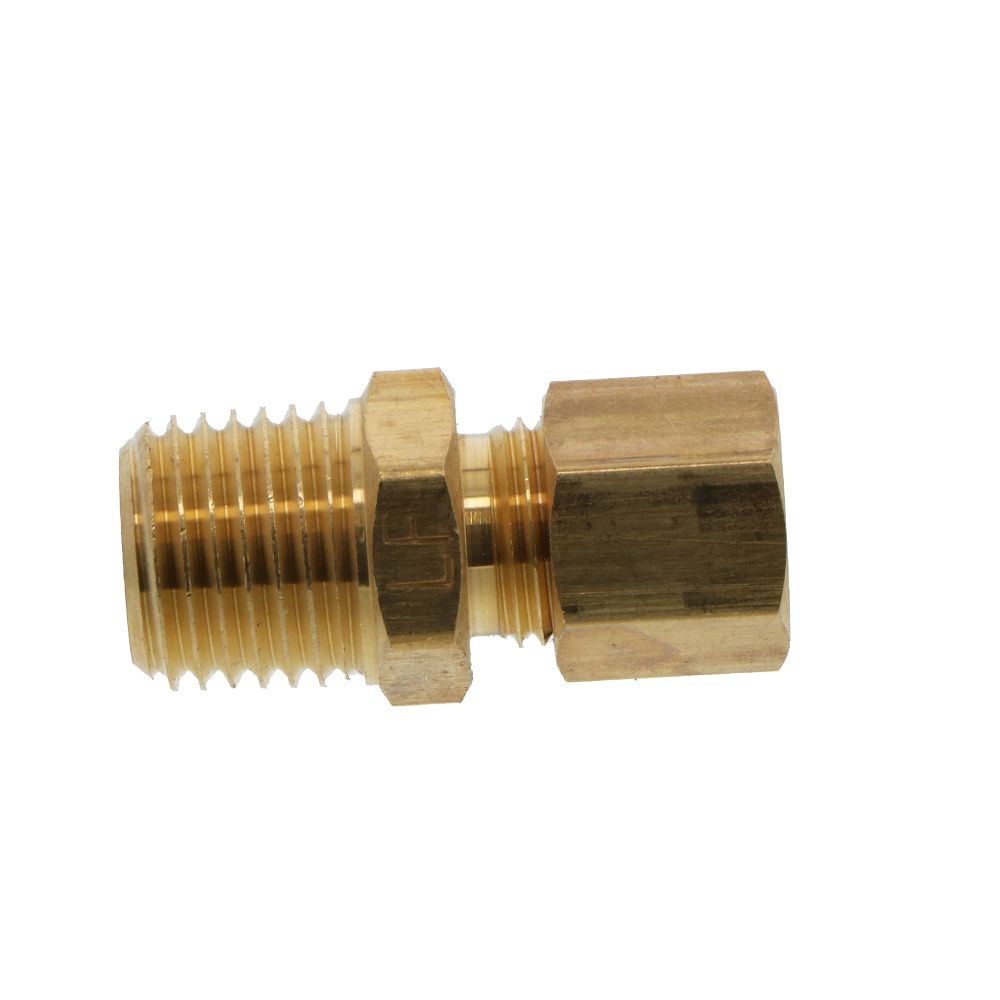

Brass Male Connector 1/4 Compression x 1/4 NPT

Part Number: BCMC-0404

Alt. Part Number: 68C-4-4

In Stock

out of stock

In Stock

$1.59 Regular price


Use with copper, brass, and aluminum. Not recommended for steel tubing. Manufactured for low medium pressure tubing connection work.

Specifications:
  • 1/4 compression x 1/4 NPT male thread
  • Material: brass

Assembly Instructions:
  1. Slide nut, then sleeve into tubing. The thread end of the nut must face out.
  2. Insert the tube into the fittings. Be sure the tube is bottomed on the fitting shoulder.
  3. Assemble nut to body, and tighten.




Weight & Dimensions

Height (inches)

0.5

Length (inches)

1.13

Weight (lbs)

0.003125

Width (inches)

0.5

Details

Application

Water; Oil; Gas; Air

Body Material

Brass

Inlet/Outlet Connection

1/4" Compression; 1/4" MPT

Mounting Options

Thread

Push-In Size

1/4" OD

Series

Brass

Size

1/4"




Use with copper, brass, and aluminum. Not recommended for steel tubing. Manufactured for low medium pressure tubing connection work.

Specifications:
  • 1/4 compression x 1/4 NPT male thread
  • Material: brass

Assembly Instructions:
  1. Slide nut, then sleeve into tubing. The thread end of the nut must face out.
  2. Insert the tube into the fittings. Be sure the tube is bottomed on the fitting shoulder.
  3. Assemble nut to body, and tighten.
