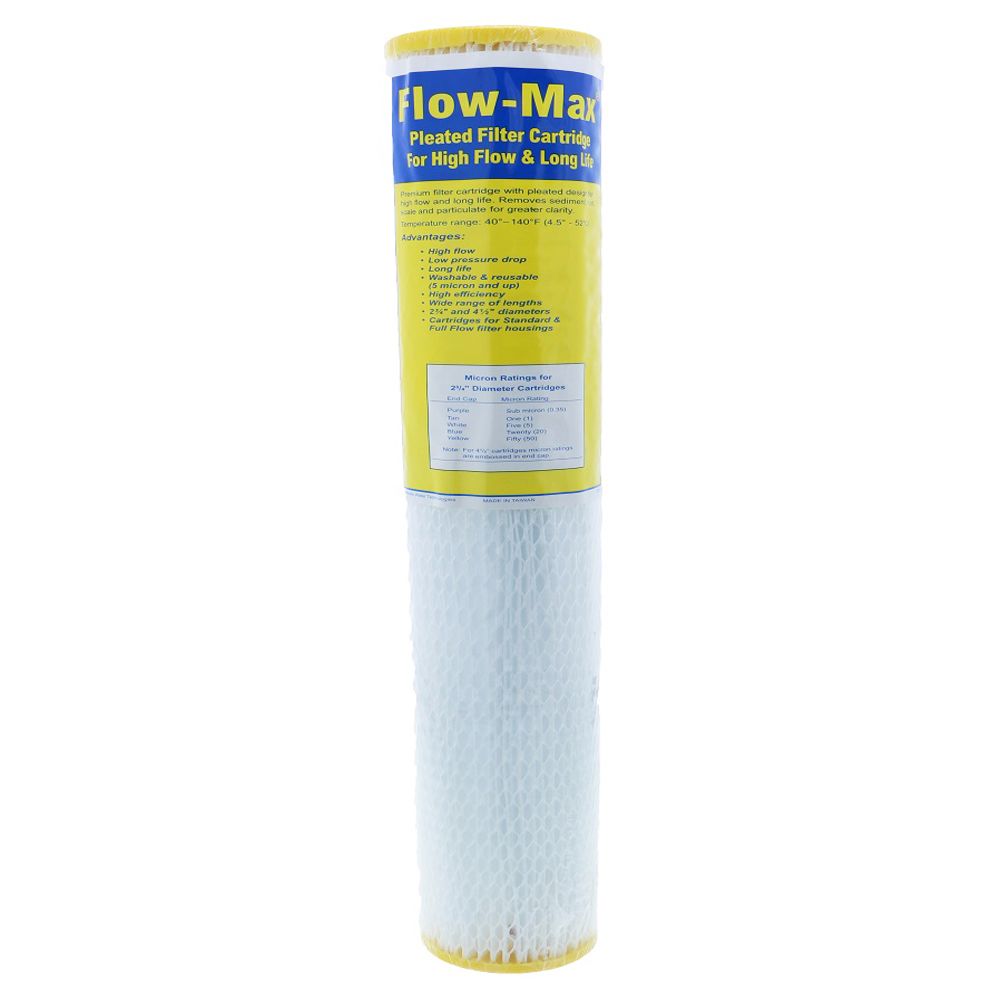

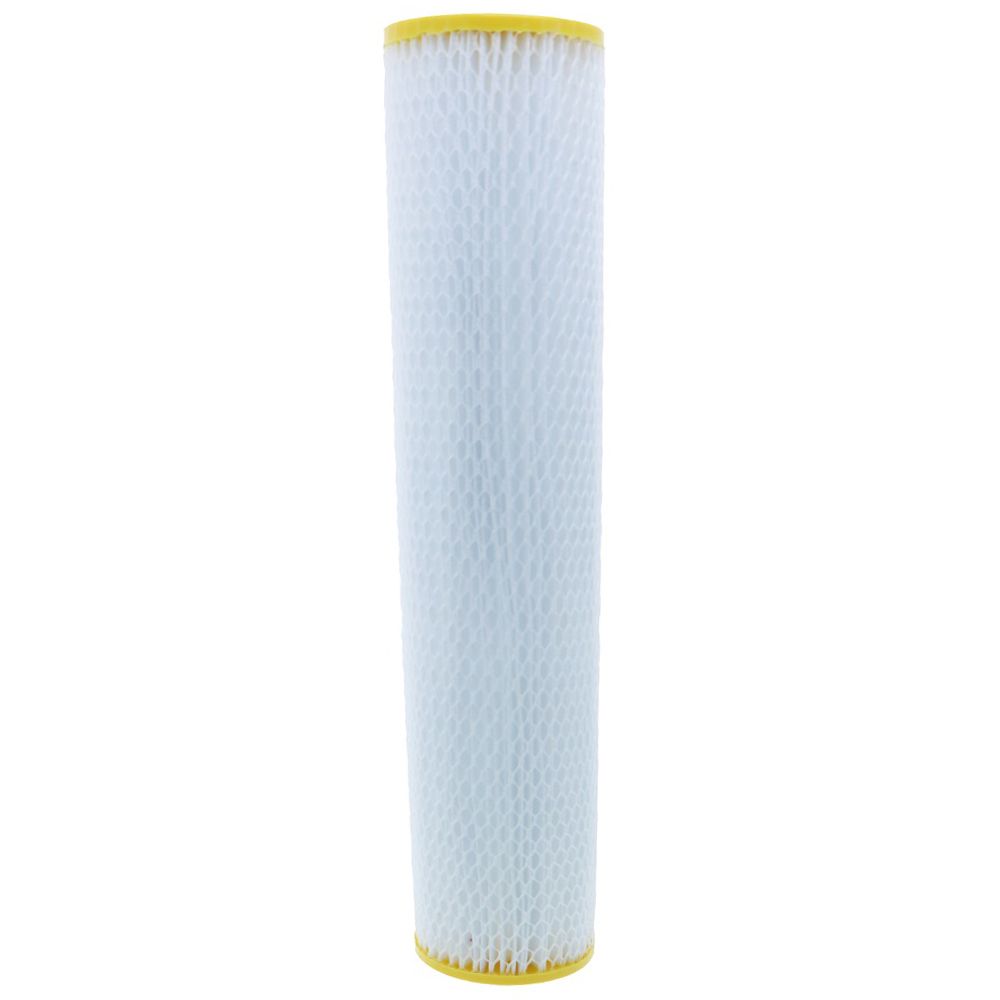

20" x 2-3/4" Flow-Max Pleated Poly - 50 mic

Flow-Max FM-50-20 Pleated Poly 20" x 2-3/4" - 50 mic Filter

The Watts Flow-Max FM-50-20 Filter cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because our cartridges are pleated to provide increased surface area and longer life. Savings is realized with extended filter life from the 100% synthetic filter media, which is cleanable on filter cartridges 5 micron and up.

Cleanable Filter
Sediment Filtration
50 Micron
3-10 GPM per 10" cartridge depending on micron rating
Pleated Polyester Filtration
100% Cellulose Free

Flow-Max FM-50-20 Brochure & Technical Specifications

Also known as:

Unicel

T-0720-50-B

Filter Specifications

Filter Application

Cyst, Sediment/Dirt/Rust

Cartridge Style

Drop-In

Micron Rating (Nominal)

50 µm

Manufacturer

Flowmatic

Dimensions

Length

20" (50.8 cm)

Outer Diameter

2.75"

Quantity per case

Operating Conditions

Flow Rate

20 gpm

Initial Pressure Drop

40 psid

Temperature Rating

40-140 °F

Filter Life

Change Frequency

As Needed

Materials of Construction

End Cap Material

PVC

Filter Media

Pleated Polyester

End Caps

DOE

Certifications

Mouse over for more information.
