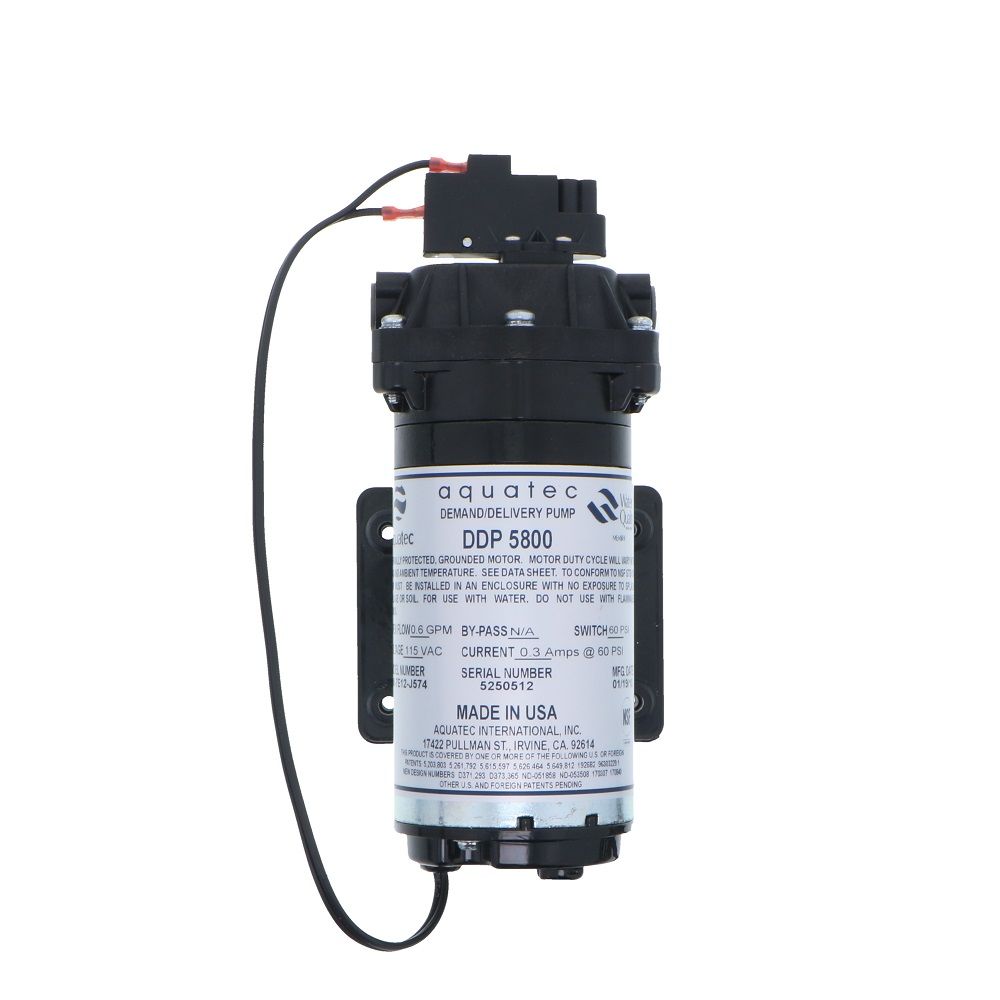

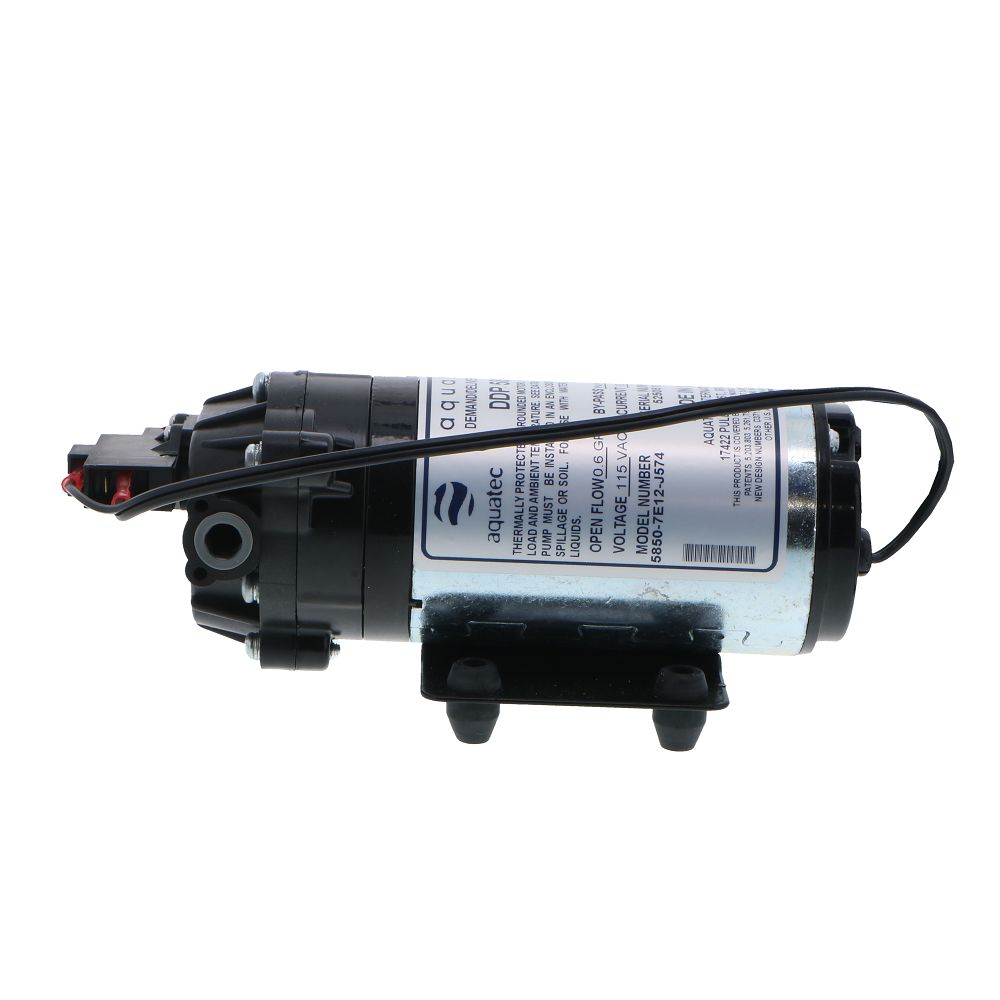

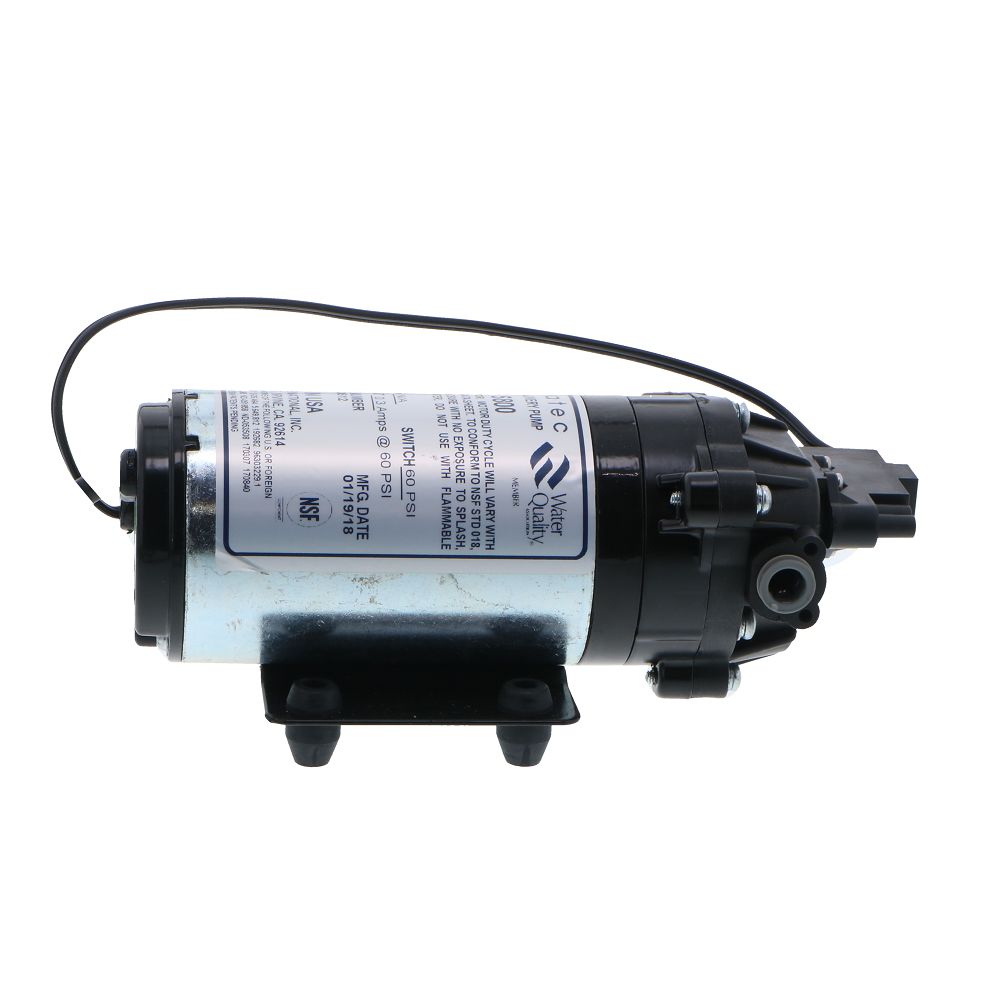

Aquatec 5850-7E12-J574 Pump .6 GPM, 3/8"JG, 115V

Aquatec 5800 Demand Pump .6 gpm 60psi 3/8"JG 115v Cord Features:

The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

3-chamber construction
Closed impervious diaphragm
Asymmetrical manifold
Integral switch or bypass
Highest structural integrity
Seven point clamping
Engineered composite plastics
Corrosion resistant metal

Aquatec 5850-7E12-J574 Demand Pump Benefits:

Adjustable switch and bypass settings
Self-priming, auto-purging
Near silent operation at lower flows
Highly efficient
Minimal pulsations
7 year design life
Runs dry without damage

Aquatec 5850-7E12-J574 Demand Pump Technical Information
Aquatec 5800 Series Demand Pump Data

Pump Specifications

Pump Type

Demand

Outlet

3/8" QC

Flow Rate

0.6 @ 60psi gpm

Voltage

115VAC

Amps	0.3 @ 60psi AMP

Motor RPM

1200 RPM

Power Cord

Cord/Pressure Switch Wires

Operating Conditions

Liquid Temperature

140 max °F

Dimensions

Length

8.46 "

Height

3.60 "

Width

4 "

Materials

Housings

Polypropylene

Valves

EPDM

Diaphragm

Santoprene

Certifcations

Certifications

NSF 58

Warranty

2 years

Mouse over for more information.
