AXEON HF1-2540 1000 GPD RO Membrane Element

5.0
(2 reviews)
Part Number: 200376 Alt. Part Number: RE2540-BLN, RE4040-BLN

AXEON HF1-2540 1000 GPD RO Membrane Element

5.0
(2 reviews)
Part Number: 200376 Alt. Part Number: RE2540-BLN, RE4040-BLN
MSRP: $420.64
Regular price $220.84

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

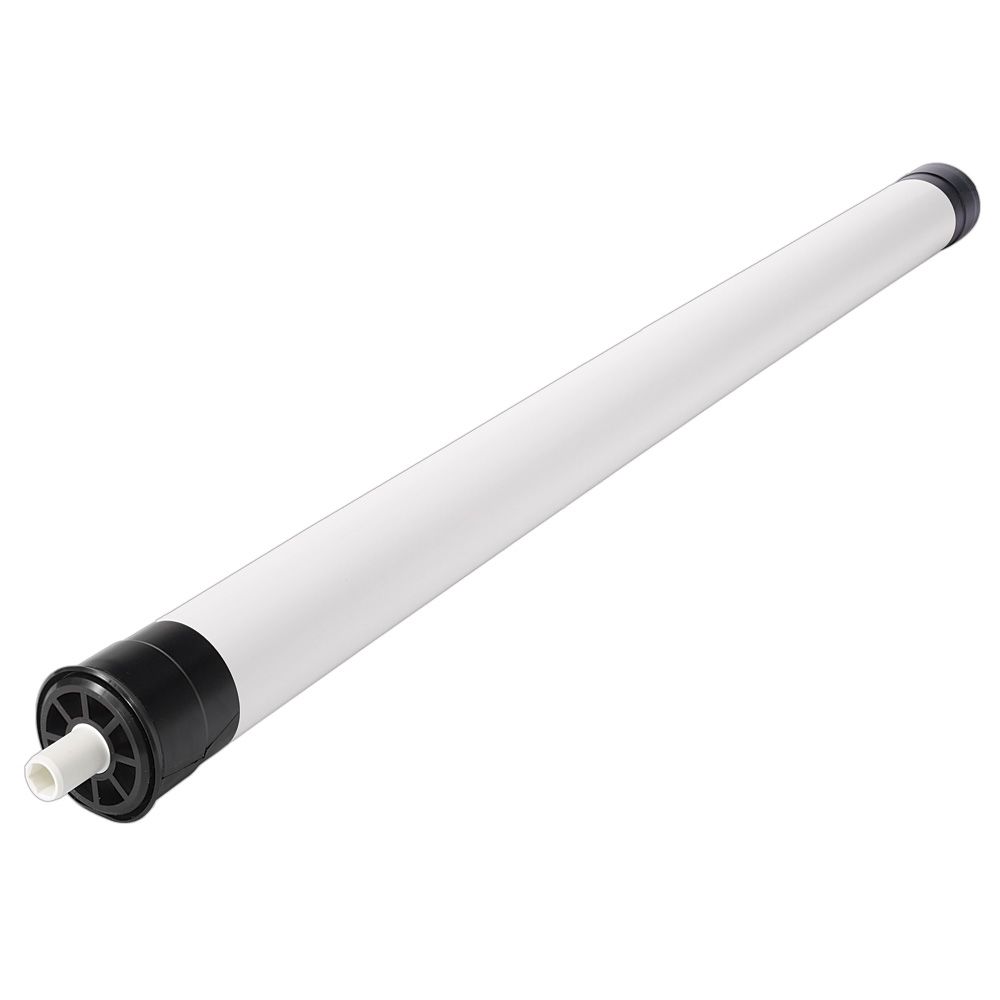

The AXEON HF1-2540 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The HF1-2540 RO membrane elements are available in all standard commercial sizes, feature a protective ABS shell, and are 100% vacuum integrity tested. The polyamide thin-film used in the AXEON HF1 Series membranes is manufactured by a major US membrane film manufacturer.

Features:
  • Permeate Flow Rate: 1000 gallons per day
  • Membrane Type: Polyamide Thin-Film
  • Applied Pressure: 150 psi
  • Dimensions: 2.5" x 40"
  • Minimum Concentrate Flow Rate: 5:1
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Low Energy, Brackish Water
  • Formerly known as RO UltraTec HF1-2540


AXEON RO membranes are dry packed

Specifications

  • Product Details
  • Average Nacl Rejection
    98
  • Chlorine Tolerance
    0 ppm
  • Cleaning Ph Range
    1-13
  • Direction
    Outside - In
  • Feed Water Temperature
    77°F
  • Feed Water
    Brackish Water
  • Inlet Pressure
    150 PSI
  • Max Feed Silt Density Index
    5 Silt Density Index
  • Max Feed Water Turbidity
    1 Nephelometric Turbidity Units
  • Max Pressure Drop
    10 PSI Differential
  • Membrane Type
    Reverse Osmosis
  • Minimum Salt Rejection Cl
    0.96
  • Permeate Flow Rate
    1000 gpd / (3.79 m³/d)
  • Permeate Tube Diameter
    0.75 in
  • Recovery Rate
    0.15
  • Series
    HF1
  • Shipping Dimensions
  • Shipping Length
    41.5
  • Shipping Width
    3
  • Shipping Height
    3
