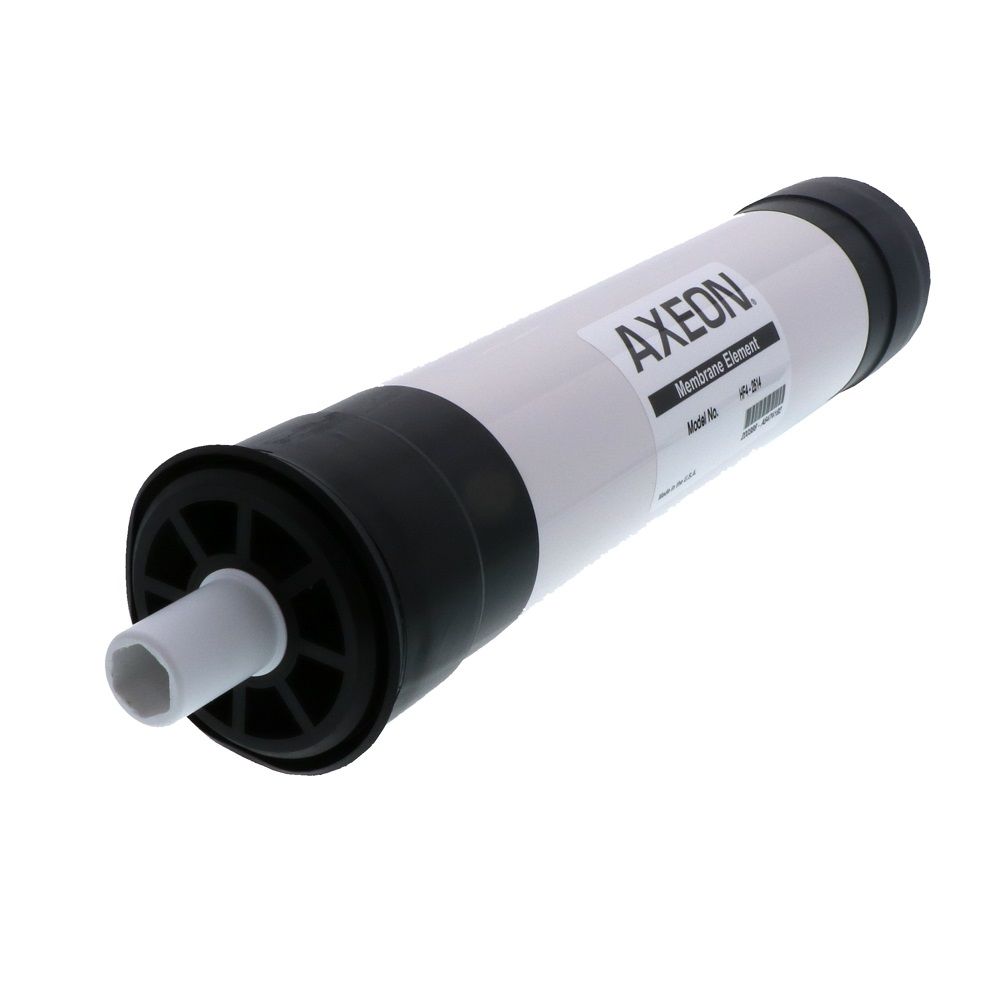

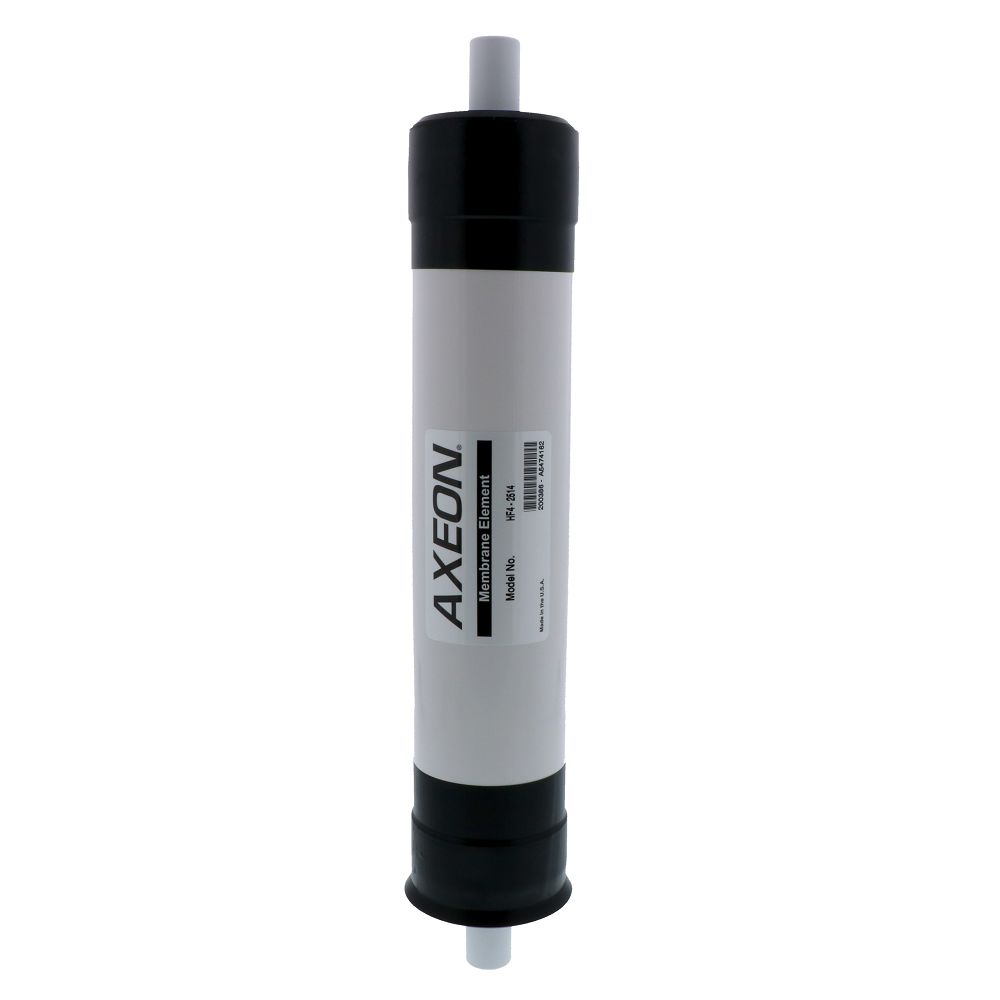

AXEON HF4-2514 225 GPD RO Membrane Element

5.0
(1 reviews)
Part Number: 200386

AXEON HF4-2514 225 GPD RO Membrane Element

5.0
(1 reviews)
Part Number: 200386
MSRP: $212.63
Regular price $111.63

Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.

Expected Ship Date: June 17, 2026

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The AXEON HF4-2514 Reverse Osmosis Membranes are one of the industry's most reliable and highest performing reverse osmosis elements.The HF4-2514 RO membrane elements are available in all standard commercial sizes, feature a protective ABS shell, and are 100% vacuum integrity tested. The polyamide thin-film used in the AXEON HF4 Series membranes is manufactured by a major US membrane film manufacturer.

Specifications:
  • Permeate Flow Rate: 225 gallons per day
  • Membrane Type: Polyamide Thin-Film
  • Applied Pressure: 100 psi
  • Dimensions: 2.5" x 14"
  • Minimum Concentrate Flow Rate: 5:1
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Extra Low Energy, Brackish Water
  • Formerly known as RO UltraTec HF4-2514


AXEON RO membranes are dry packed

Compatible with:
Desal MembranesAK2514TF, 1220978
Axeon Water200374

Specifications

  • Product Details
  • Average Nacl Rejection
    98
  • Chlorine Tolerance
    0 ppm
  • Cleaning Ph Range
    1-13
  • Direction
    Outside - In
  • Feed Water Temperature
    77°F
  • Feed Water
    Brackish Water
  • Inlet Pressure
    100 PSI
  • Max Feed Silt Density Index
    5 Silt Density Index
  • Max Feed Water Turbidity
    1 Nephelometric Turbidity Units
  • Max Pressure Drop
    10 PSI Differential
  • Membrane Type
    Reverse Osmosis
  • Minimum Salt Rejection Cl
    0.96
  • Permeate Flow Rate
    225 gpd / (0.85 m³/d)
  • Permeate Tube Diameter
    0.75 in
  • Recovery Rate
    0.15
  • Series
    HF4
  • Shipping Dimensions
  • Shipping Length
    15.5
  • Shipping Width
    3
  • Shipping Height
    3
