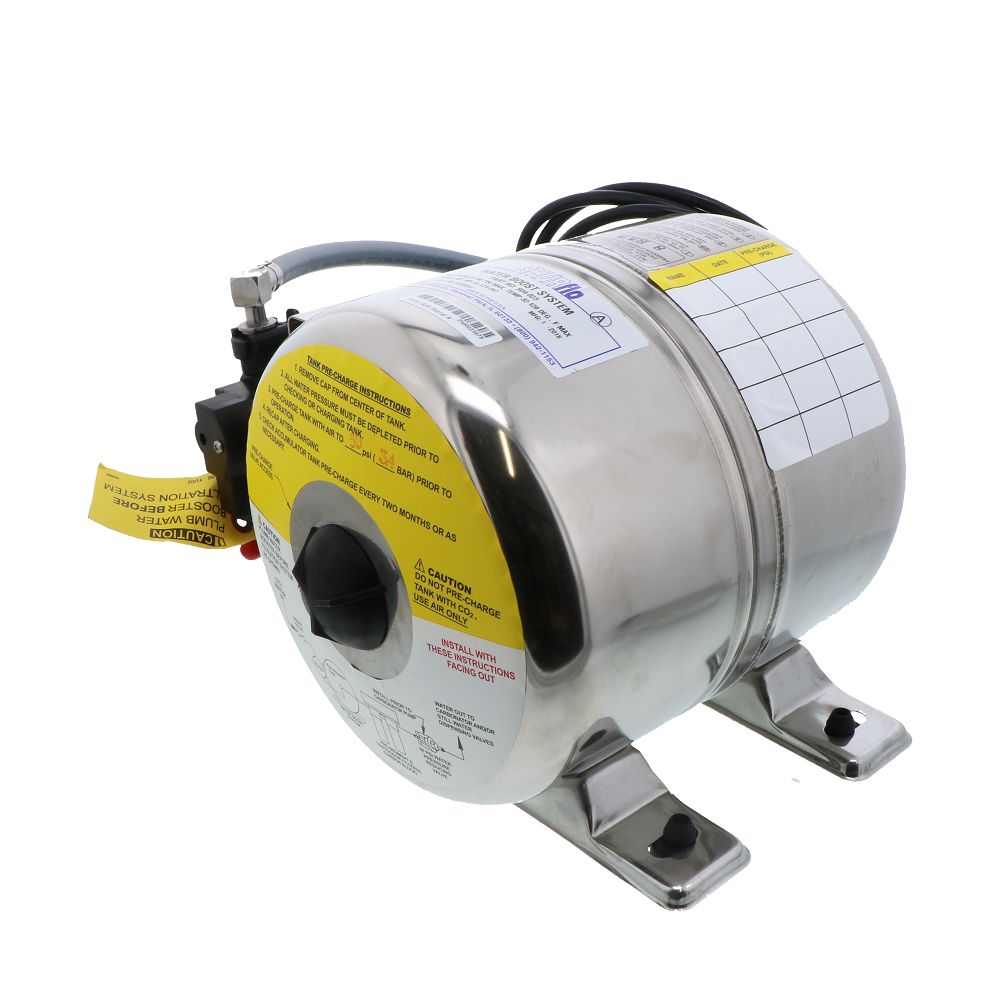

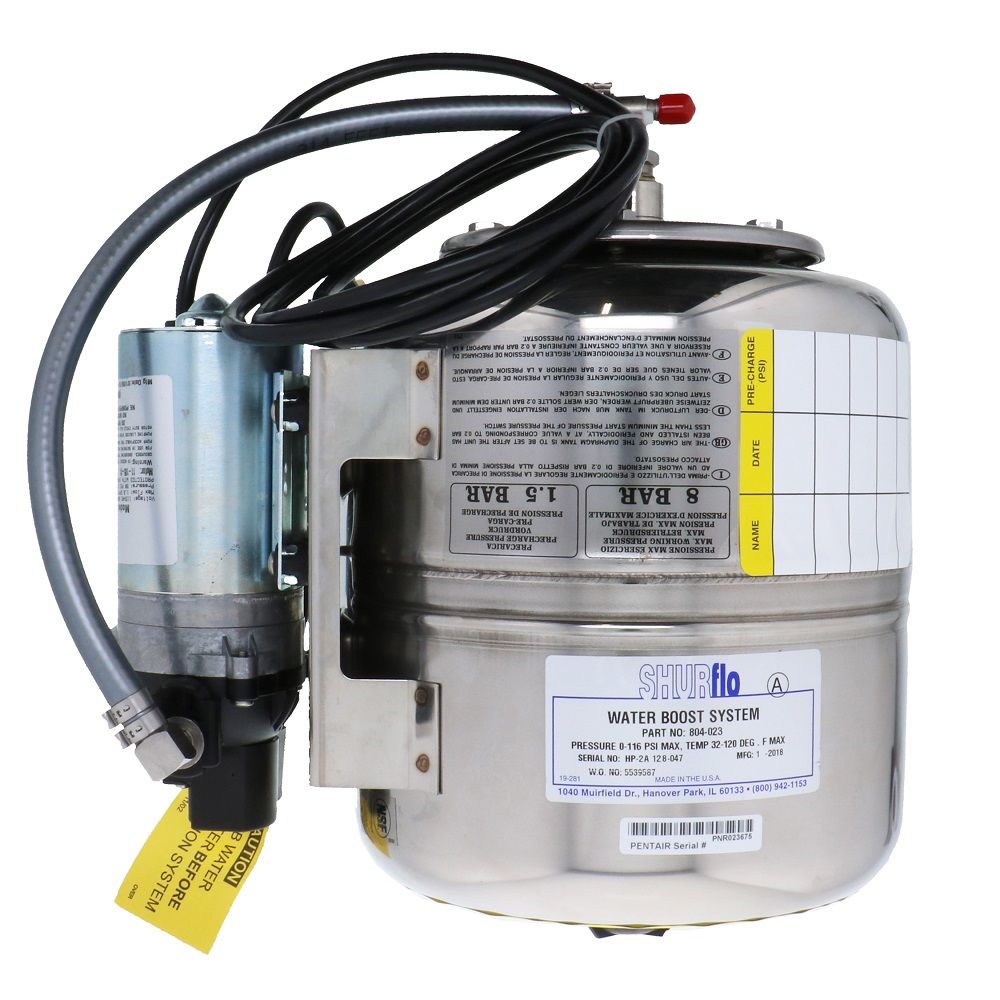

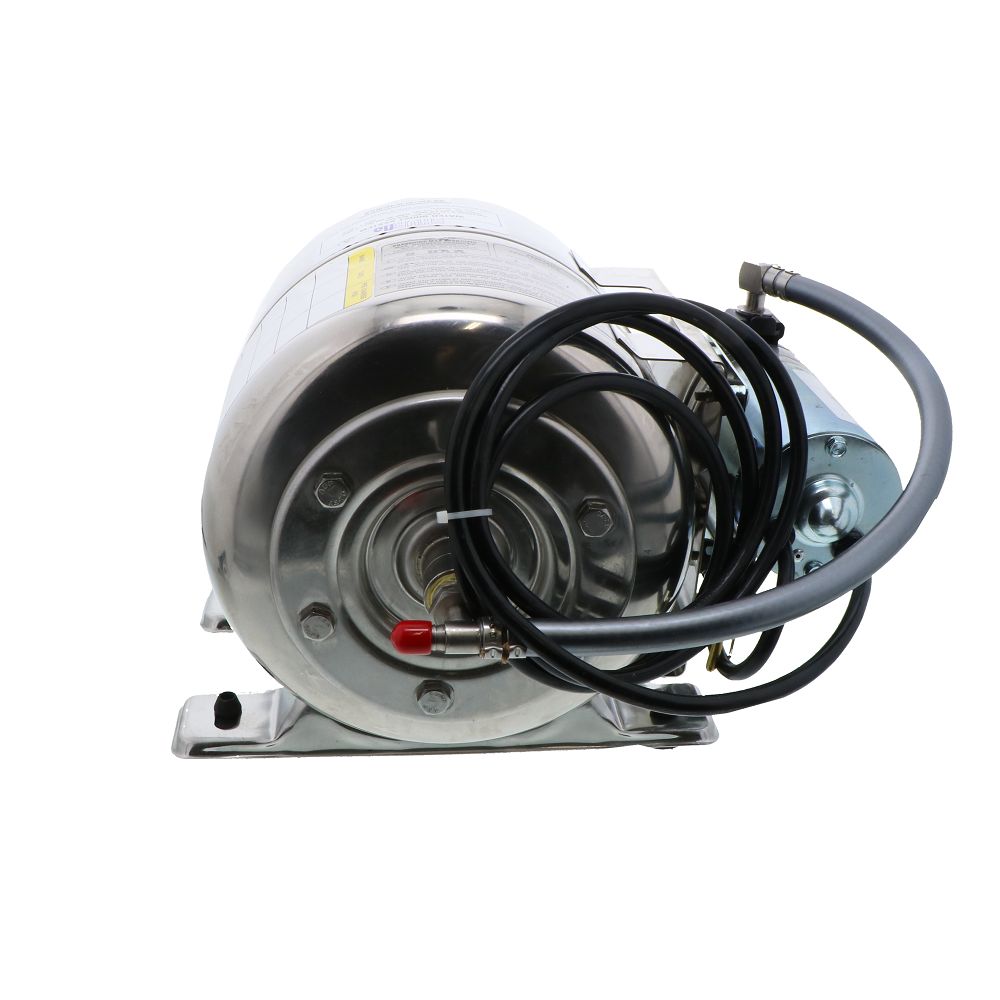

SHURflo 804-023 Medium Water Boost System

SHURflo 804-001 Mini Water System 60 psi, 3/8



Maintains consistent water pressure for fountain systems

Part Number: 804-023

Price: $399.99
Qty:


SHURflo 804-023 Medium Water Boost System Features:


The increased popularity of non-carbonated drinks and the inconsistency of city water pressure and flow requires the need for a Water Boost System to deliver quality drinks in many installations. SHURflo's Water Boost Systems are for applications where low, fluctuating, or no water pressure exists. The pump and accumulator tank maintain consistent water pressure to one or more dispensing valves or faucets.

  • Pump and tank are NSF, UL, and CSA listed
  • SHURflo 8000 Series Pump, 90 psi, 115 VAC
  • 2 Gallon Stainless Steel Accumulator Tank
  • Can run dry without damage
  • Self priming up to 8 vertical feet
  • Increase flow and pressure to carbonated and non carbonated soda valves
  • Maximizes filter life on filtration systems
  • Low profile allows for undercounter installation

SHURflo 804-023 Medium Water Boost System Application





PSI
BAR
GPM
LPM
Amps
 20 1.61.6 5.40 0.23
 40 2.8 1.42 4.80 0.61
 60 4.1 1.13 4.30 0.73
 90 6.2 0.68 2.60 0.90


SHURflo 804-023 Medium Water Boost System Specifications

Pump Specifications
Booster
3/8" Barb
3/8" Barb
115VAC
0.75 Gallons
50 psi
Operating Conditions
34 - 120 °F
117 psi
Dimensions
13.5 "
9.5 "
9.5 "
Materials
Zinc Plated Steel
EPDM
Santoprene
Certifcations
NSF, UL, and CSA Listed
1 Year
