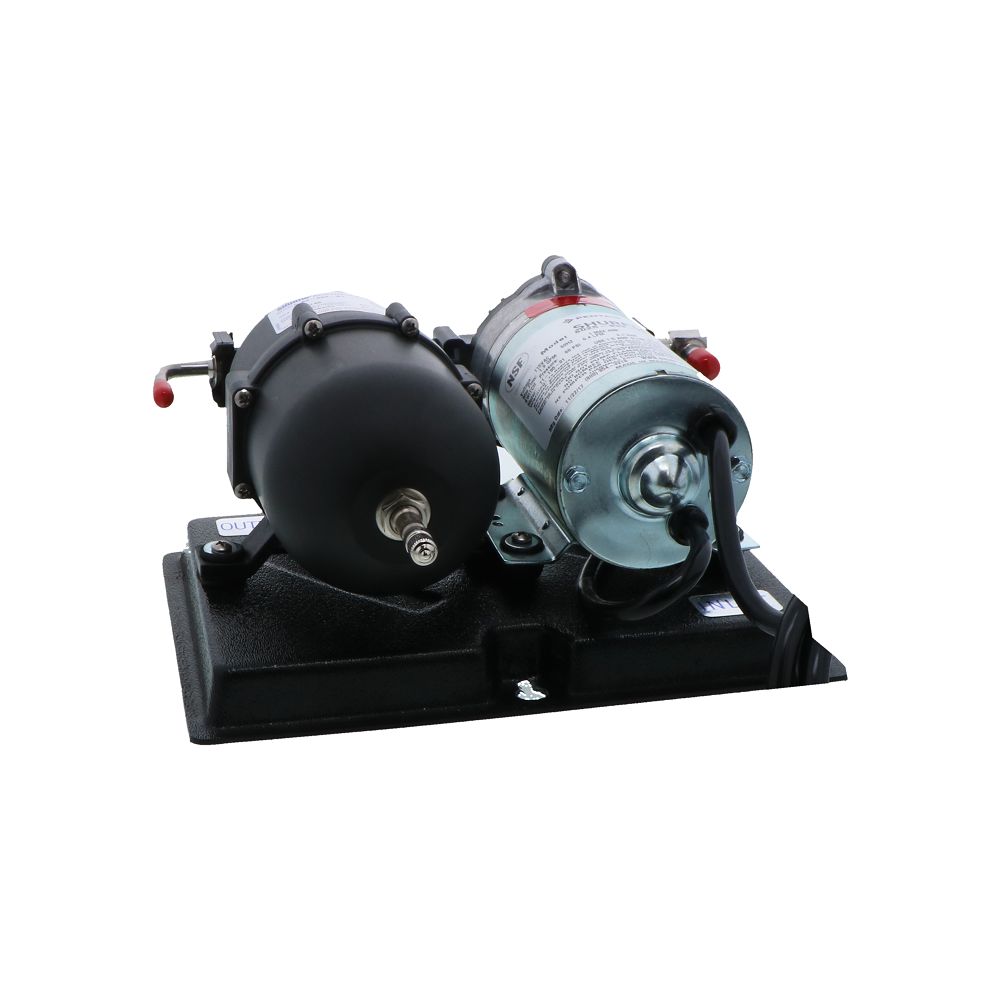

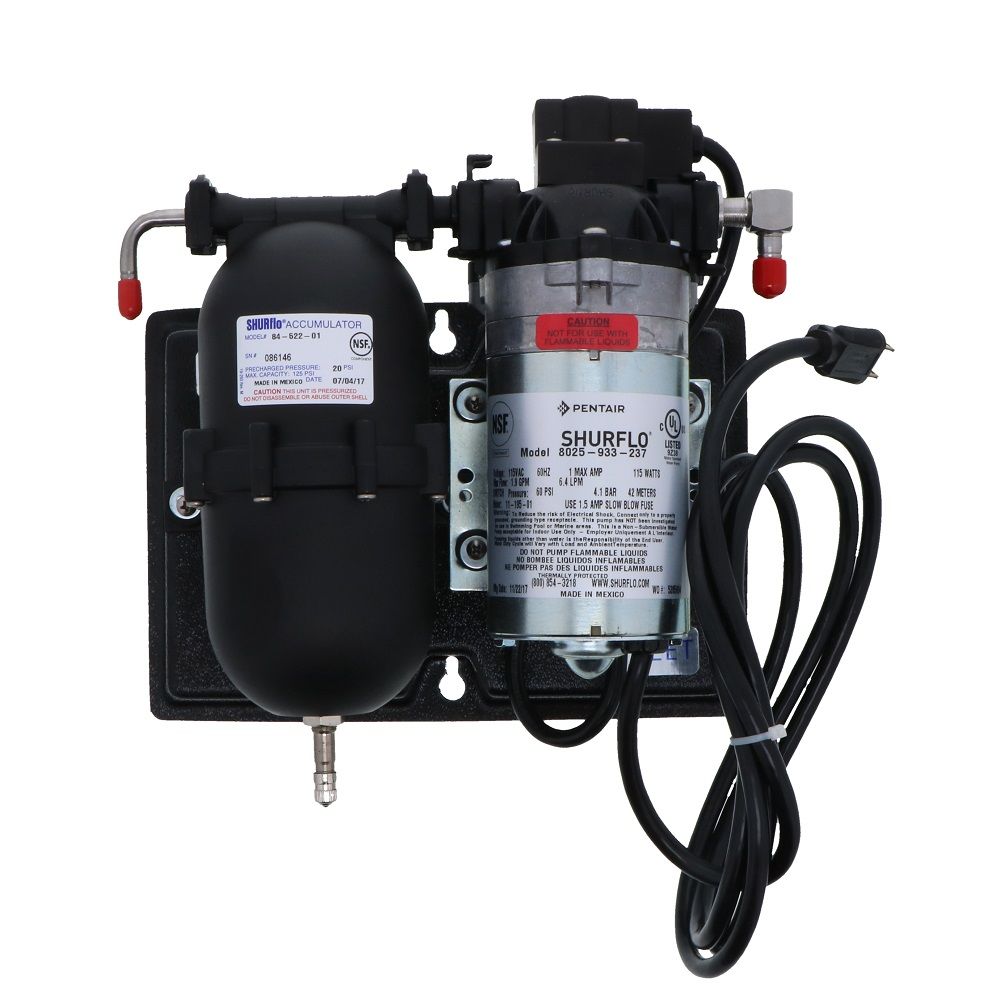

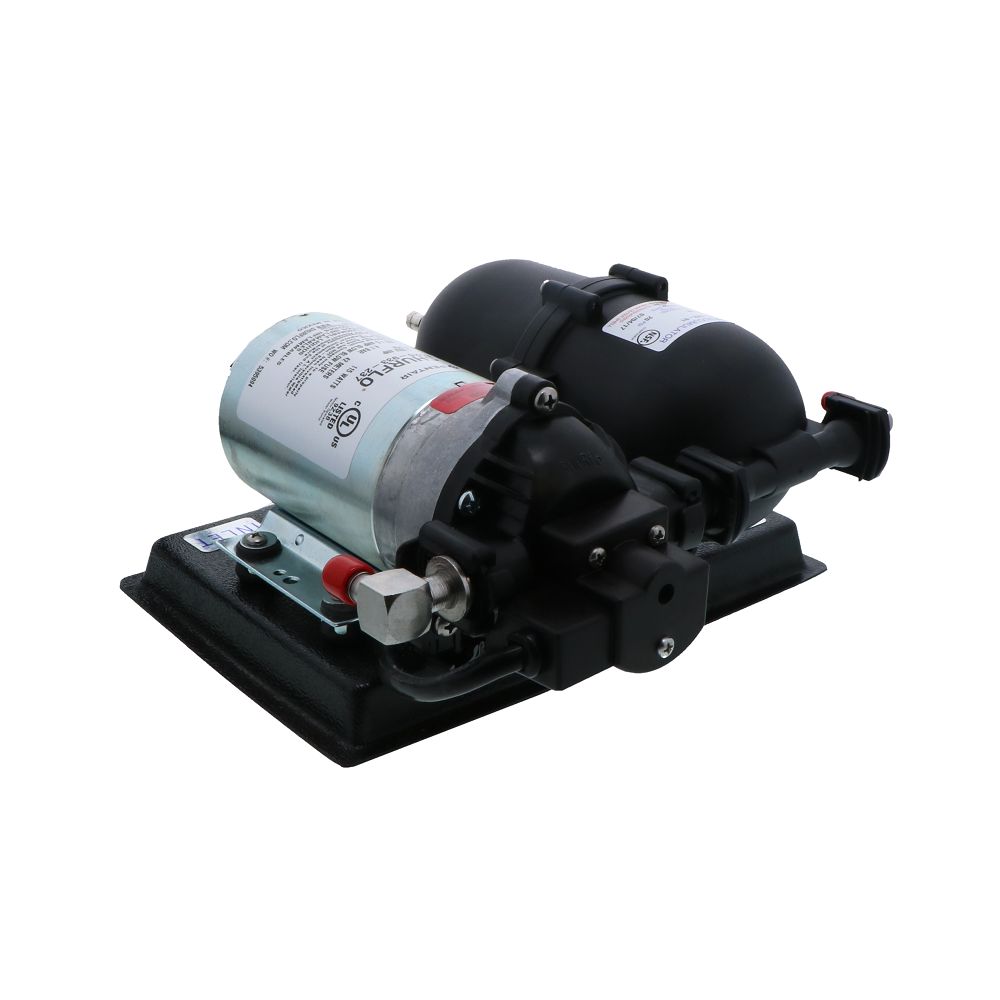

SHURflo 804-001 Mini Water Boost System 60 psi, 1/2" Barb Inlet 3/8" Barb Outlet, 115 VAC

SHURflo 804-001 Mini Water System 60 psi, 3/8

Part Number: 804-001

Price: $239.99

Qty:

Details
Specs
Reviews
Related

SHURflo 804-001 Mini Water Boost System Features:

The increased popularity of non-carbonated drinks and the inconsistency of city water pressure and flow requires the need for a Water Boost System to deliver quality drinks in many installations. SHURflo's Water Boost Systems are for applications where low, fluctuating, or no water pressure exists. The pump and accumulator tank maintain consistent water pressure to one or more dispensing valves or faucets.

Pump and tank are NSF, UL, and CSA listed
Features reliable SHURflo 8025 Series Pump
Can run dry without damage
Self priming up to 8 vertical feet
Pressure reducing valves on inlet help prevent damage

SHURflo 8040-001 Mini Water Boost System Application

PSI	BAR	GPM	LPM	Amps
20	1.4	1.42	4.90	0.40
40	2.8	1.26	2.50	0.49
60	4.1	1.13	0.10	0.54

SHURflo 804-001 Mini Water Boost System Specifications

Pump Specifications

Pump Type

Booster

Inlet

1/2" Barb

Outlet

3/8" Barb

Voltage

115VAC

PSI Bypass

60 psi

Operating Conditions

Liquid Temperature

34 - 170 °F

Inlet Pressure

30 psi

Dimensions

Length

10.3 "

Height

10 "

Width

4.6 "

Materials

Housings

Glass Filled Nylon

Valves

EPDM

Diaphragm

Santoprene

Certifcations

Certifications

NSF/UL/CSA Listed

Mouse over for more information.
