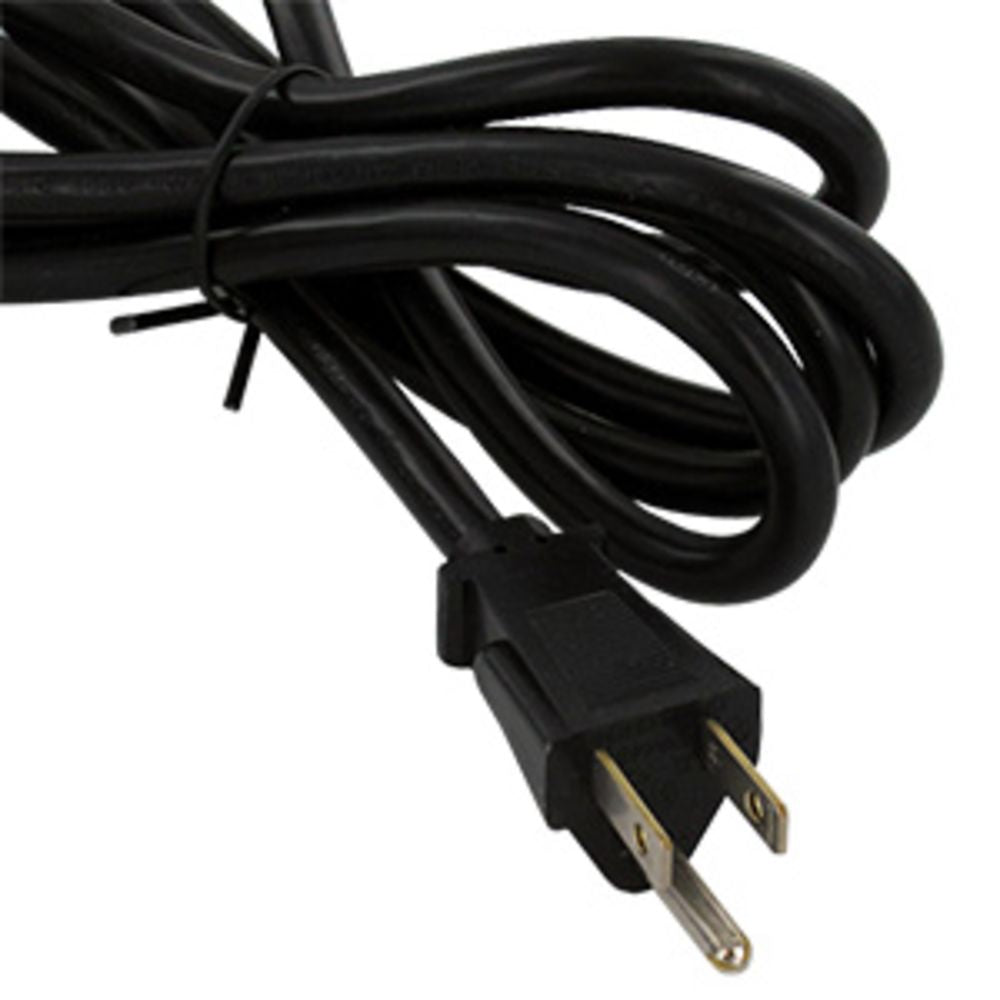

SHURflo 8025-213-256 Delivery Pump - 1.5gpm, 45psi, 3/8 FPT, 115VAC With Cord

SHURflo 8005-233-236 Demand Pump - 1.5gpm, 60psi, 3/8 FPT, 115VAC No Cord

Part Number: 8025-213-256

Price: $144.99

Qty:

Details
Specs
Reviews
Related

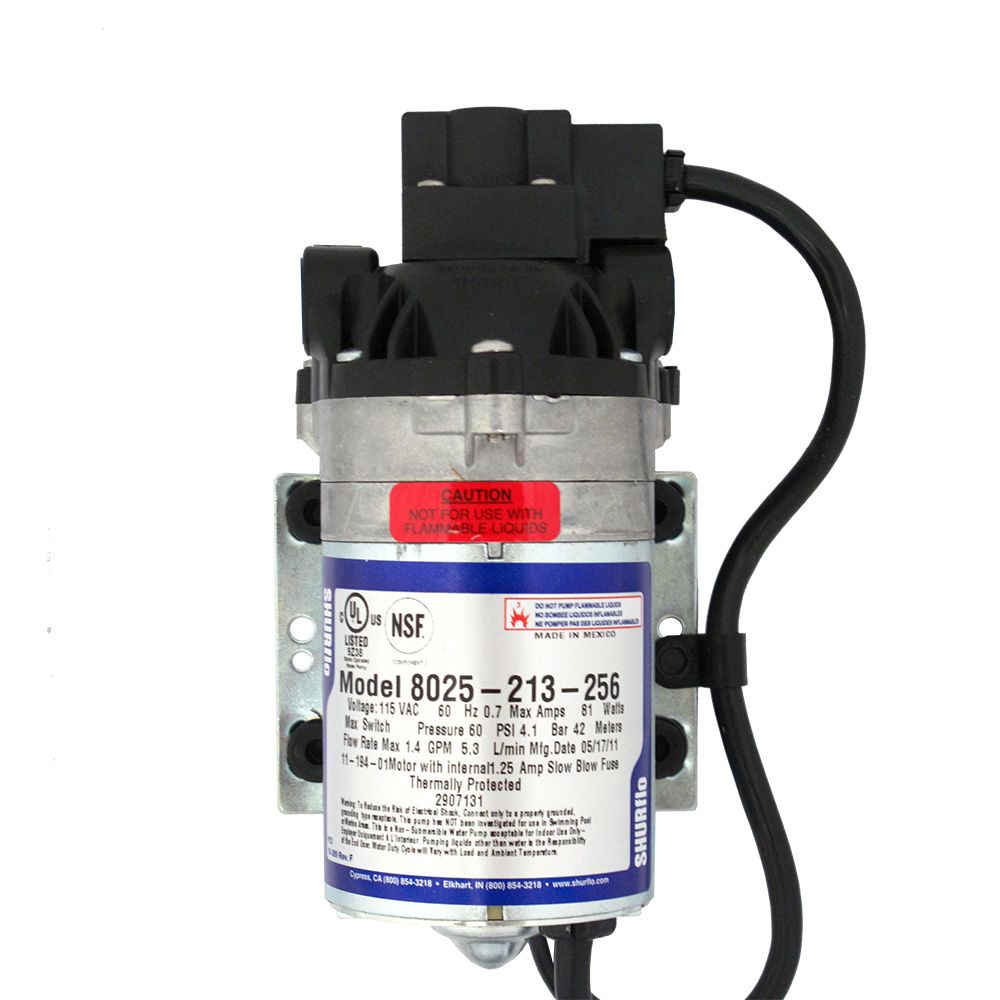

SHURflo 8025-213-256 Delivery Pump features:

The SHURflo 8025-213-256 Delivery Pump is ideal in applications that require high pressure and a flow rate of 1.5 GPM and low amp draw. The pump can be mounted in any position, is compact and is designed for long trouble-free life. Spherically shaped valves and diaphragms are available in a variety of materials to meet a wide range of applications.

1.5 GPM flow rate
Demand Switch
Can run dry without damage
Self priming up 8 vertical feet
3/8" NPT female ports
Santoprene® diaphragm
Built-in check valve
NSF, UL and CSA listed

SHURflo 8025-213-256 Delivery Pump Applications:

Water delivery
Soil extraction

SHURflo 8025-213-256 Product Data Sheet
SHURflo 8000 Series Manual

Pump Specifications

Inlet

3/8" FPT

Outlet

3/8" FPT

Flow Rate

1.5 gpm

Voltage

115VAC

PSI Bypass

45 psi

Operating Conditions

Liquid Temperature

170 °F

Inlet Pressure

30 psi

Dimensions

Length

7.66 "

Height

4.24 "

Width

3.28 "

Materials

Housings

Zinc Plated Steel

Valves

EPDM

Diaphragm

Santoprene

Certifcations

Certifications

NSF/UL/CSA Listed
