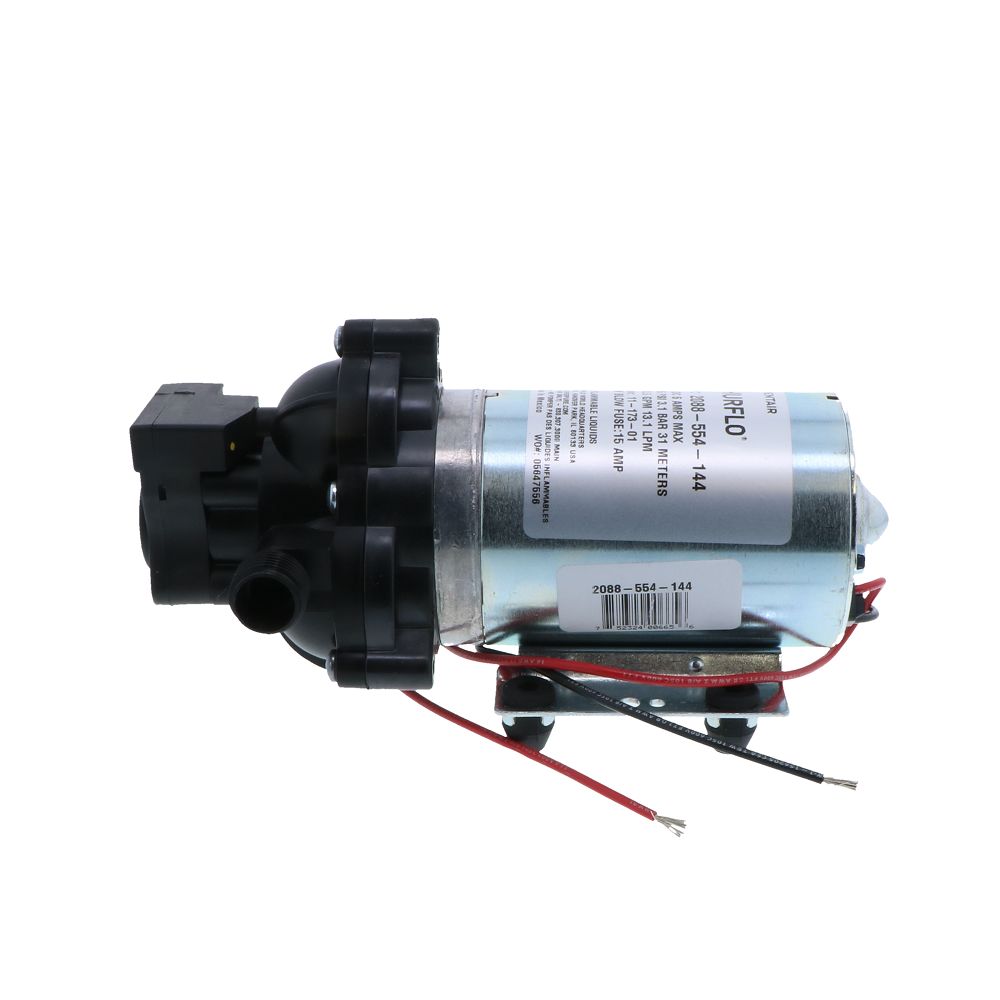

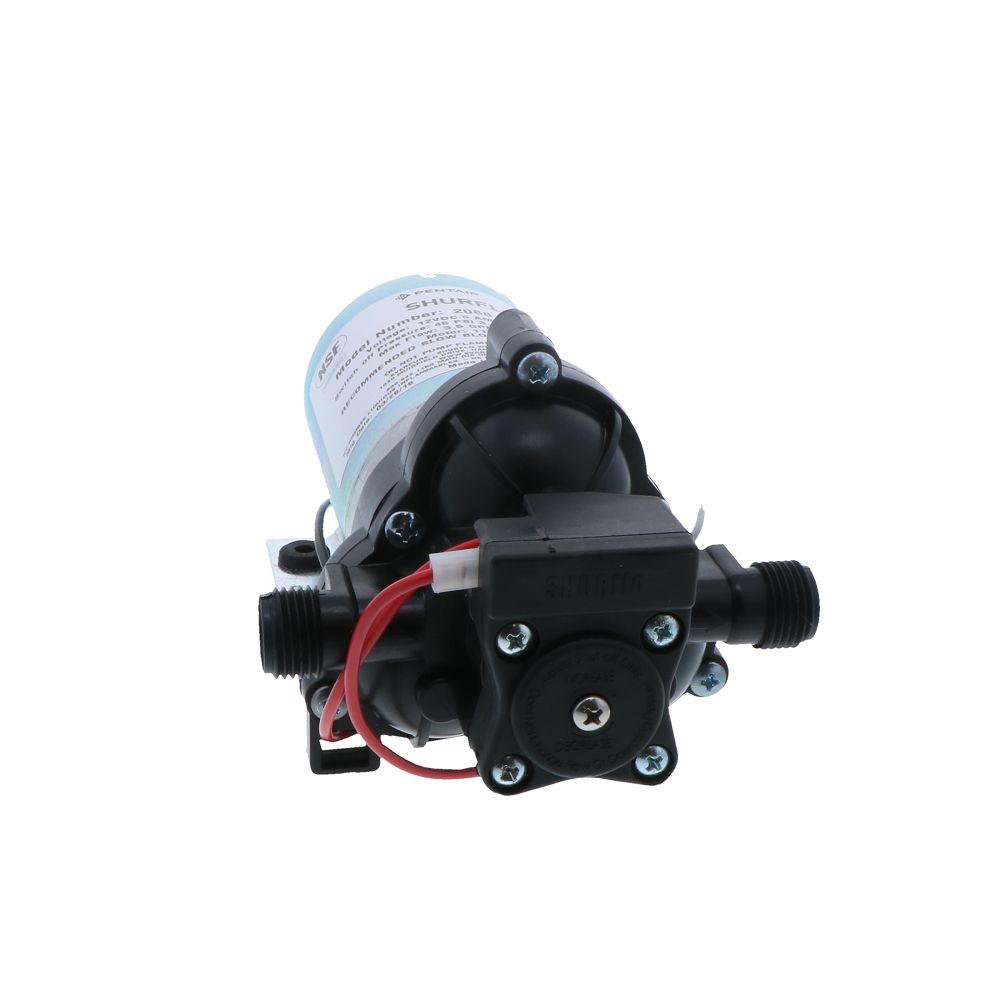

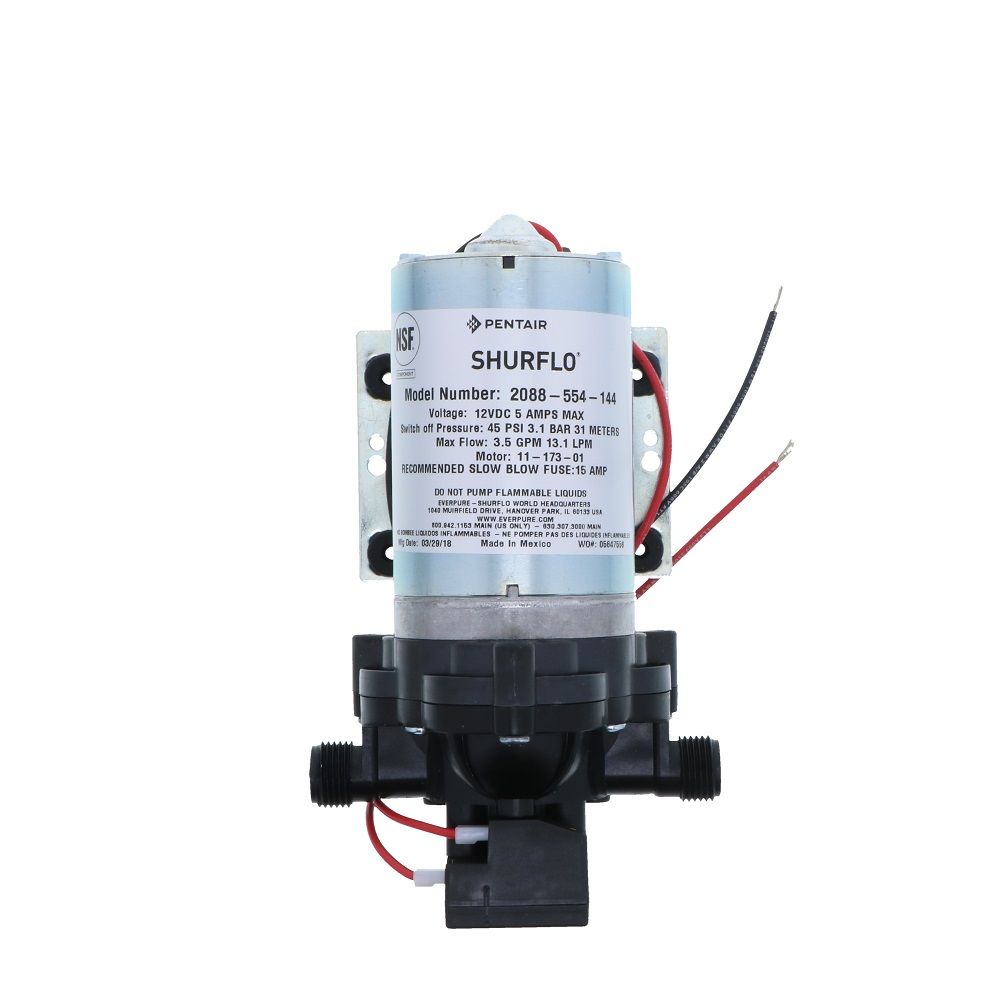

SHURflo 2088-554-144 Delivery Pump - 3.5gpm, 45psi, 1/2 NPSM, 12VDC No Cord

SHURflo 2088-554-144 Delivery Pump features:

The SHURflo 2088-554-144 Delivery Pump delivers reliable performance in high flow, moderate pressure applications. 2088 series pumps are used in a variety of transfer and dispense-on demand applications. They can be mounted in any position and are designed for easy maintenance.

3.5 GPM flow rate
Positive Displacement 3 Chamber Diaphragm
Santoprene® Valves & Diaphragm
Poly Housing
45 psi Demand Switch
1/2" - 14 Male Parallel Thread Ports
Open Flow & Self-Priming (up to 9 vertical feet)
Prevents back flow of fluid through the pump
Can run dry without damage
Ground wires w/ base plate
NSF, UL and CSA listed

SHURflo 2088-554-144 Applications:

Water delivery
RV Potable Water

SHURflo 2088-554-144 Data Sheet
SHURflo 2088 Series Delivery Pump Manual
SHURflo 2088 Series Delivery Pump Parts List

Pump Specifications

Pump Type

Demand

Inlet

1/2" - 14 Male Parallel Thread

Outlet

1/2" - 14 Male Parallel Thread, 1/2" MPT

Flow Rate

3.5

Voltage

12VDC

Power Cord

NONE

Operating Conditions

Max Total Head

9 ft

Liquid Temperature

130 MAX °F

Cut in Flow Rate

25 (+/-5) psi

Cut out Flow Rate

45 psi

Dimensions

Materials

Housings

Poly

Valves

Santoprene

Diaphragm

Santoprene

Certifcations

Certifications

NSF, UL & CSA

Warranty

SHURflo warrants Industrial 2088 series pumps to be free from material and workmanship defects (under normal use and service) for a period of one (1) year from the date of manufacture. or (1) one year use with proof of purchase, not to exceed 2 years
