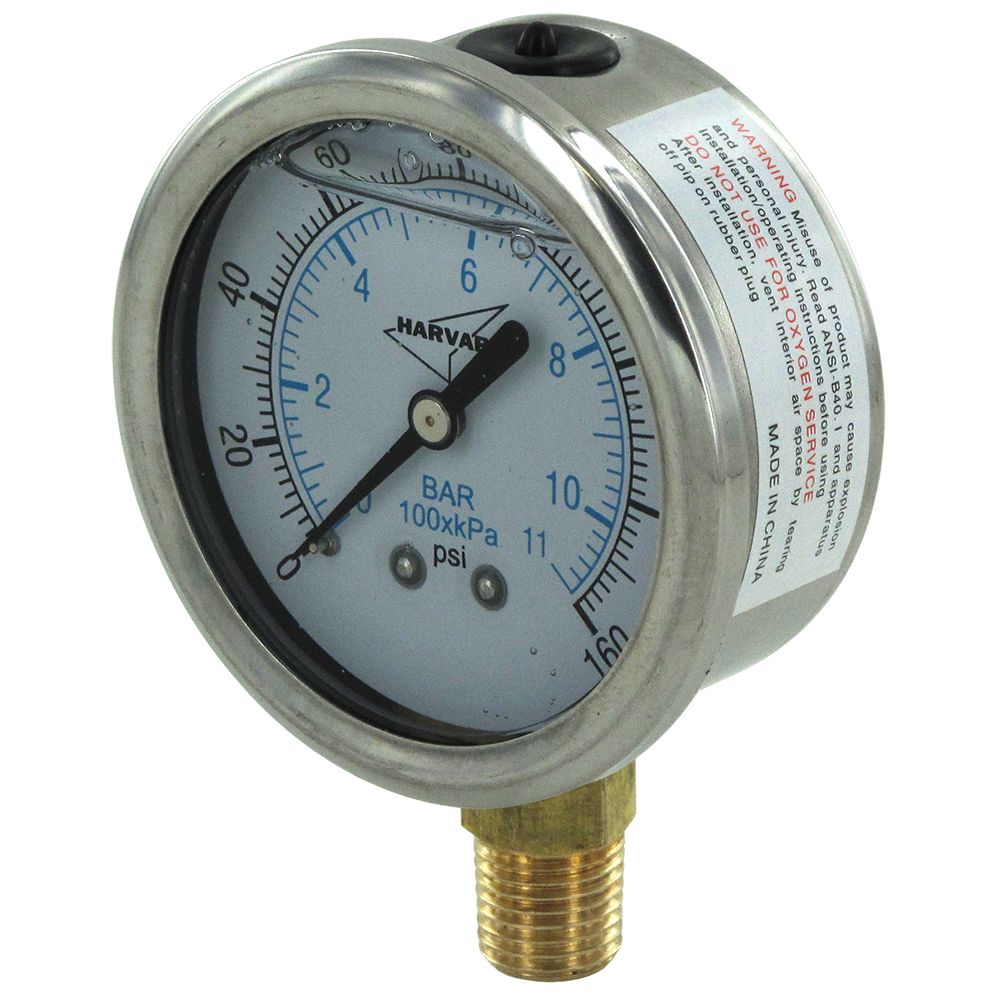

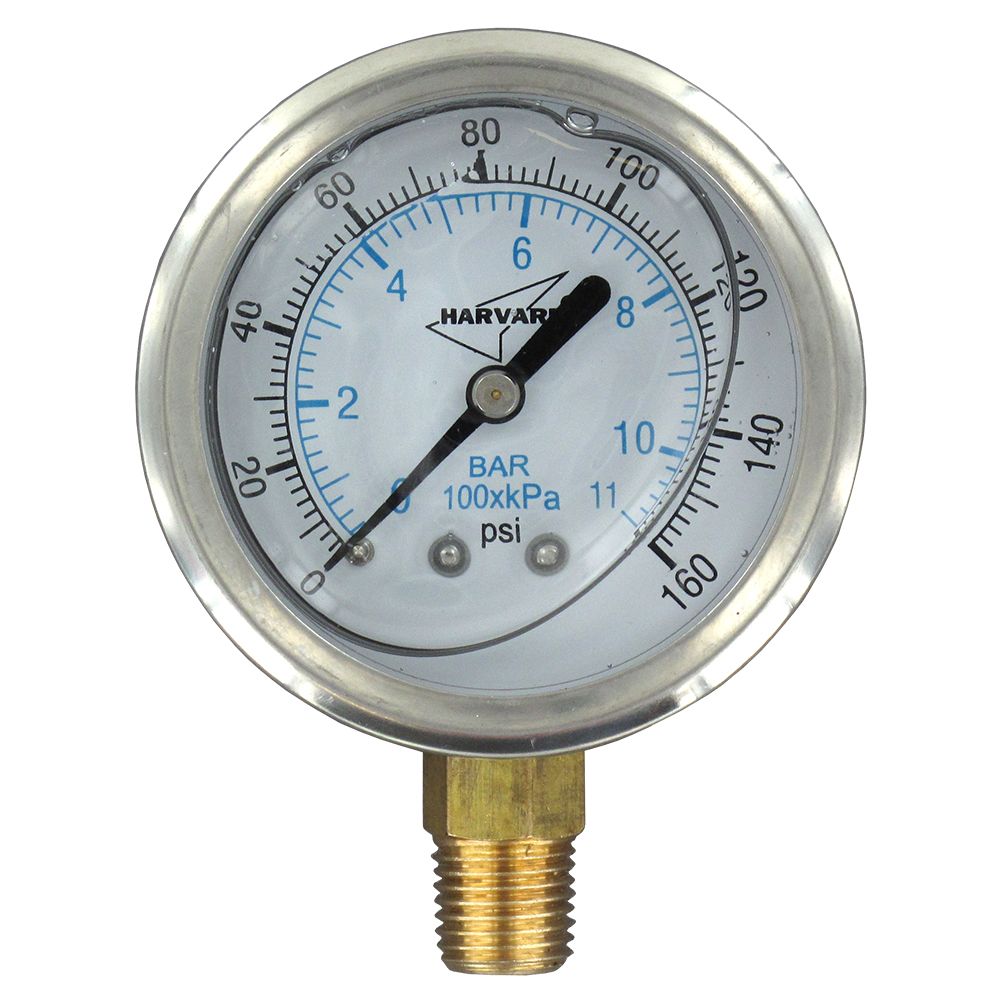

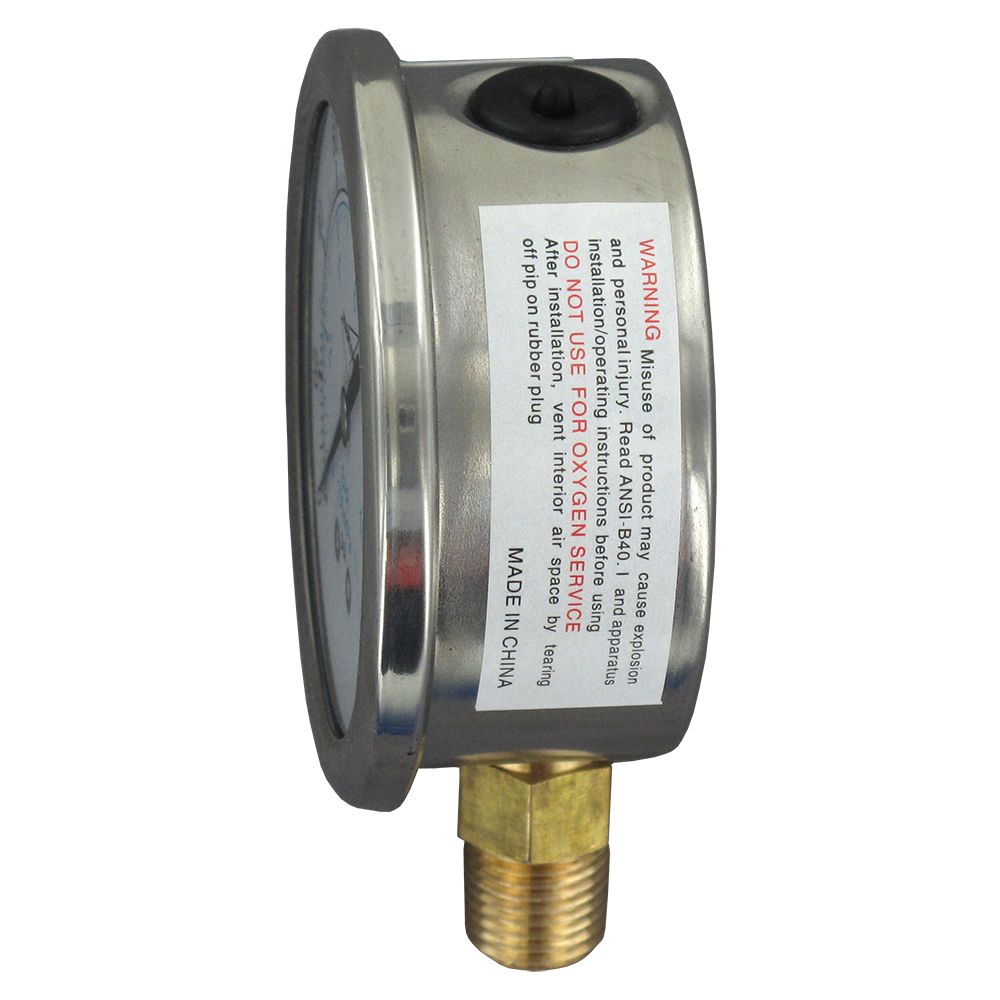

Bottom Mount 2.5" Water Pressure Gauge - 0-160 PSI, S.S., 1/4" NPT

Part Number: PGB25160L
Alt. Part Number: SEC-201L-254F

MSRP: $26.04

Price: $14.42

10+ for $11.54 ea
25+ for $10.82 ea

Qty:

Details
Specs
Reviews
Related

Bottom Mount Water Pressure Gauge - 2.5", 0-160 PSI, S.S., 1/4" NPT

Bottom Mount Water Pressure Gauges are extremely high quality pressure gauges. From the the special synthetic fluid they use in their liquid filled gauges, that are UV resistant and will not fade in sunlight, to our special chrome plated stems.

Bottom Mount Water Pressure Gauges have easy-to-read two-tone dials printed in bold UV resisstant ink for ease of legibility even after extensive exposure to direct sunlight. Every gauge is tested for accuracy and leakage. These pressure gauges are designed for demanding applications internationally such as Reverse Osmosis, Oil Refining, Chemical, Food Processing plants, Water Treatment, just to name a few.

Bottom Mount 2.5" Pressure Gauge 0-160 PSI, S.S., 1/4" NPT Specifications

General

Face Diameter

2.5"

Mount Type

Lower Bottom

Connection

1/4" MPT

Operating Specs

Pressure Range

0 - 160 psi

Temperature Range

0 - 140 °F

Construction

Casing

304 Stainless Steel

Internals

Brass and 316SS

Stem

Brass

Face	White Aluminum with Black/Blue Print

Lens	Clear Acrylic

Pointer

Aluminum - Black

Fluid

UV resistant synthetic silicone

Mouse over for more information.
