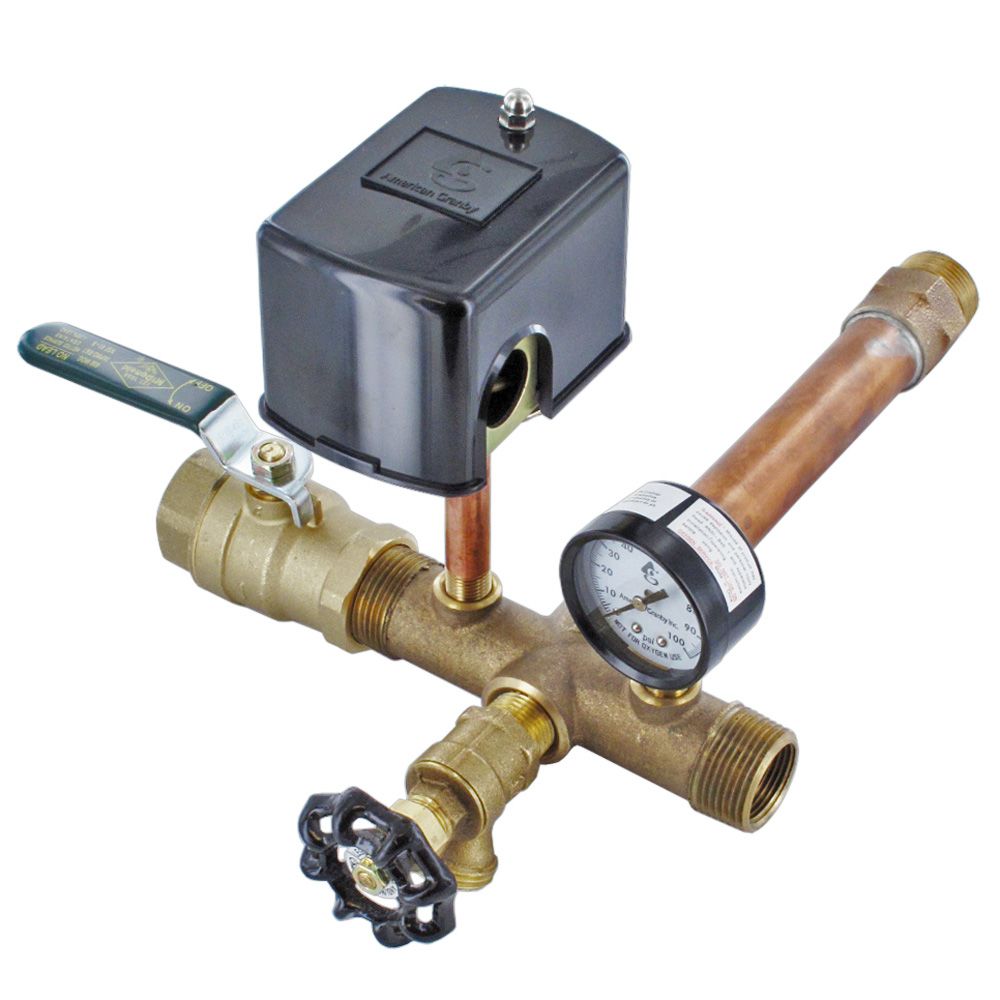

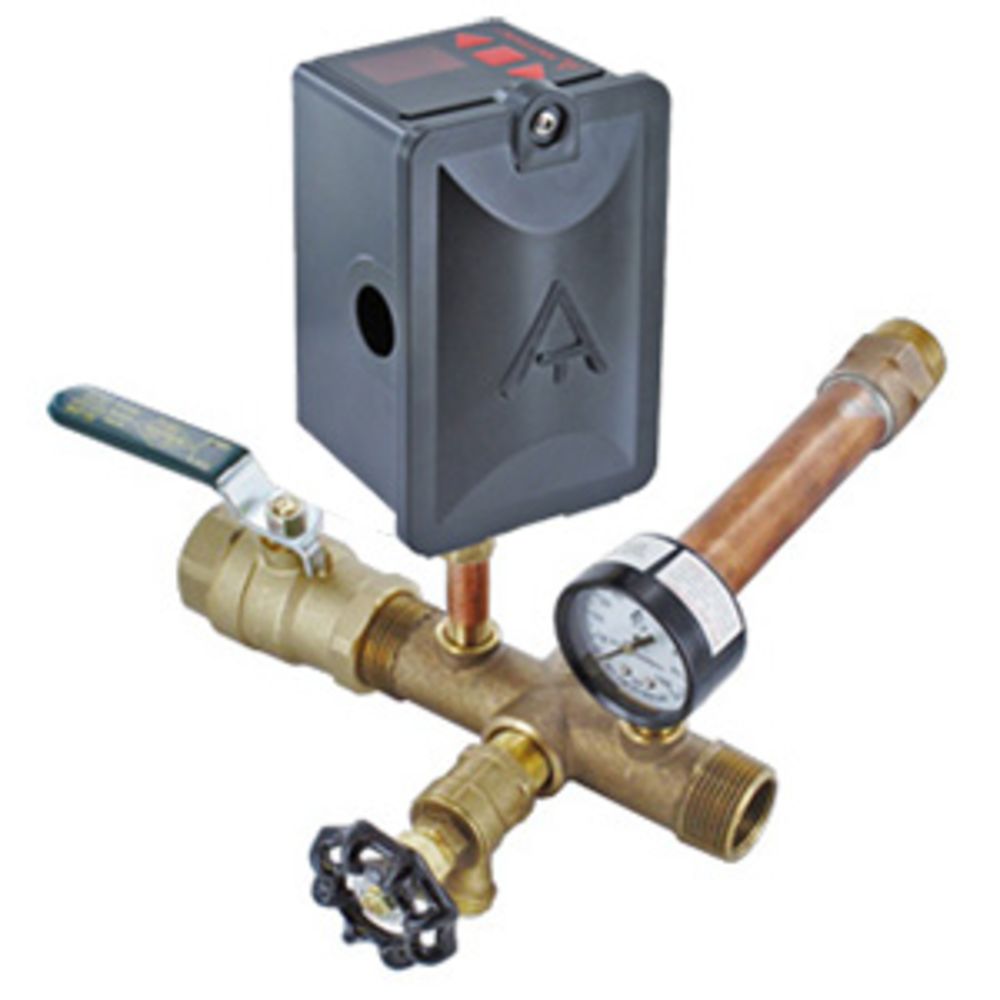

Well-X-Trol Tank Fittings Package TFP1

Part Number: TFP1-3050
The TFP1 Tank Installation Package for Well-X-Trol Tanks are supplied un-assembled, providing the opportunity to combine any of the optional devices. When assembling the components, use a quality thread sealant or Teflon tape. Use a non-Teflon based thread sealant when assembling plastic to metal connections or plastic to plastic connections. The TFP1 is compatible with the Well-X-Trol WX-201, WX-202, WX-203.

Specifications:
  • Standard Duty Pressure Switch
  • 1" Ball Valve
  • 1/2" Boiler Drain
  • Pressure Gauge (0-100 psi)
  • Tank Cross


Cross Length 10"
Tank Connection 1" MIPT
Leg Connections 1" MIPT and 3/4" FIPT
Drain Port 1/2" FIPT
Top Ports (qty) 1/4" FIPT (2)
