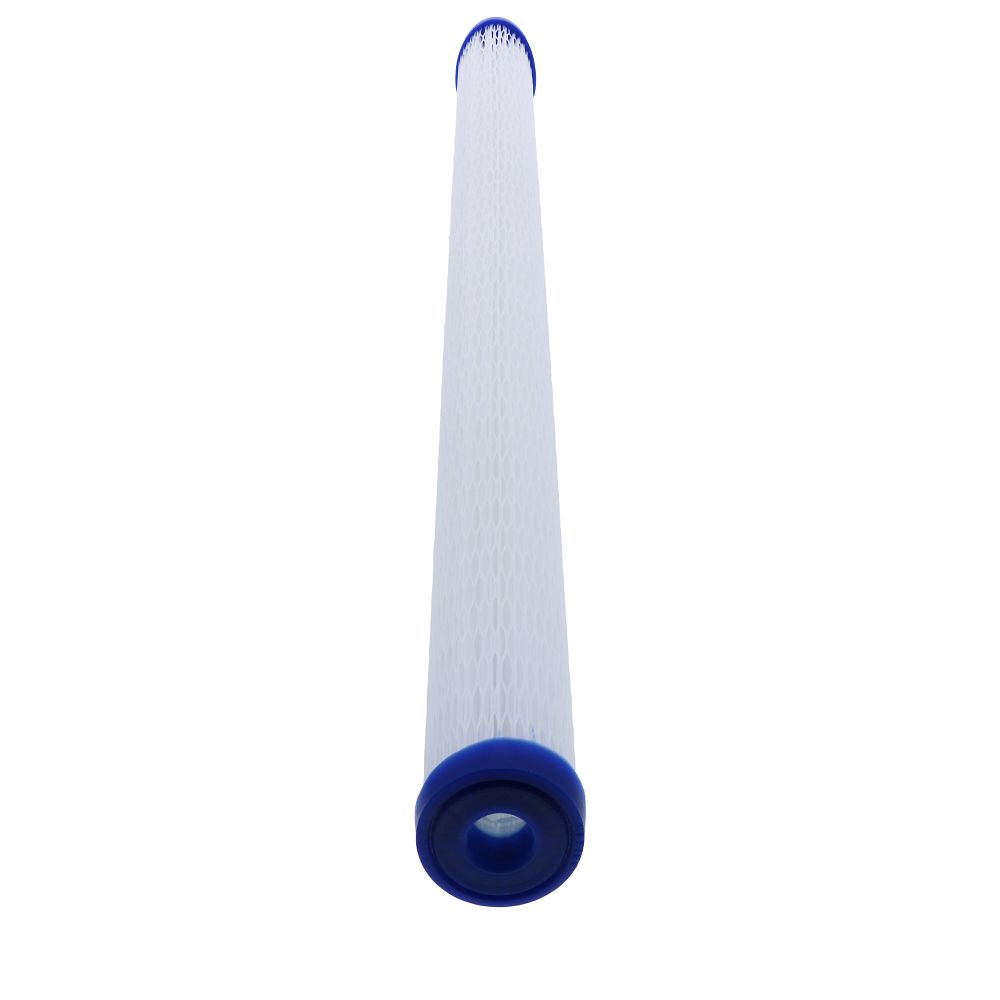

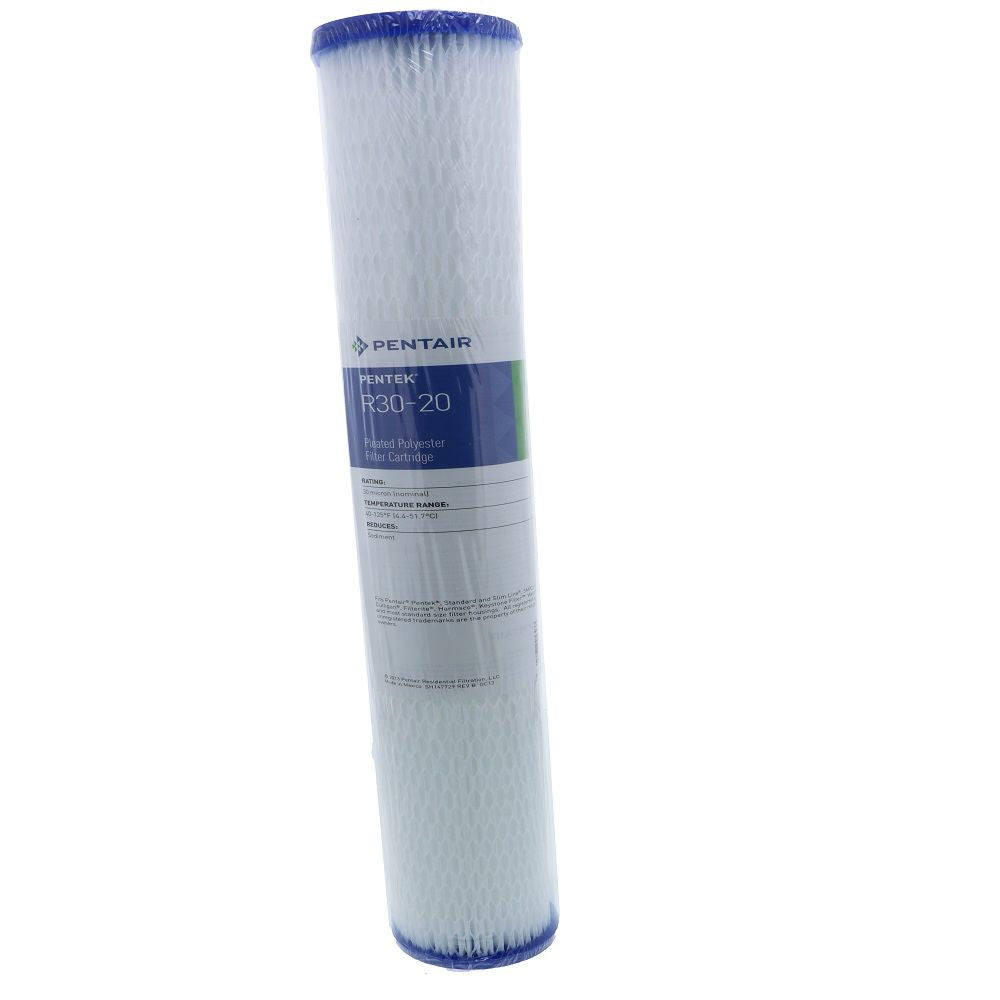

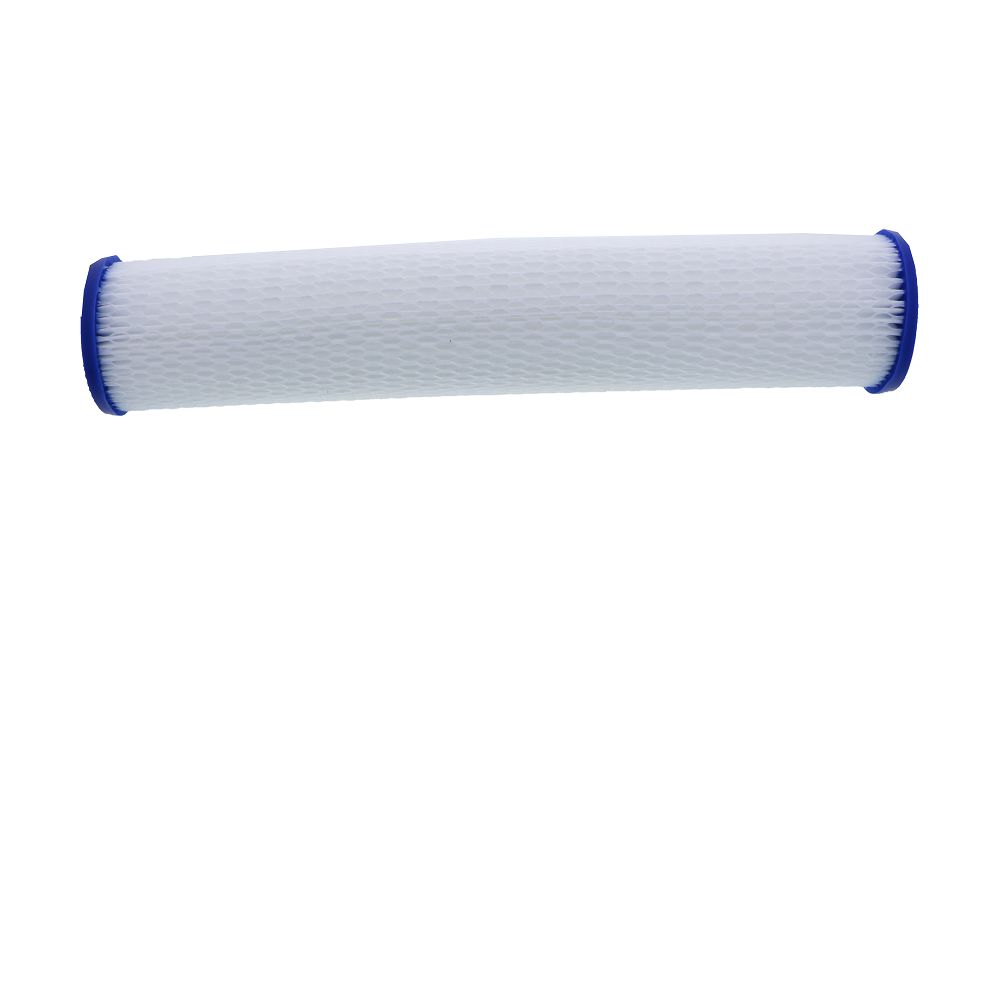

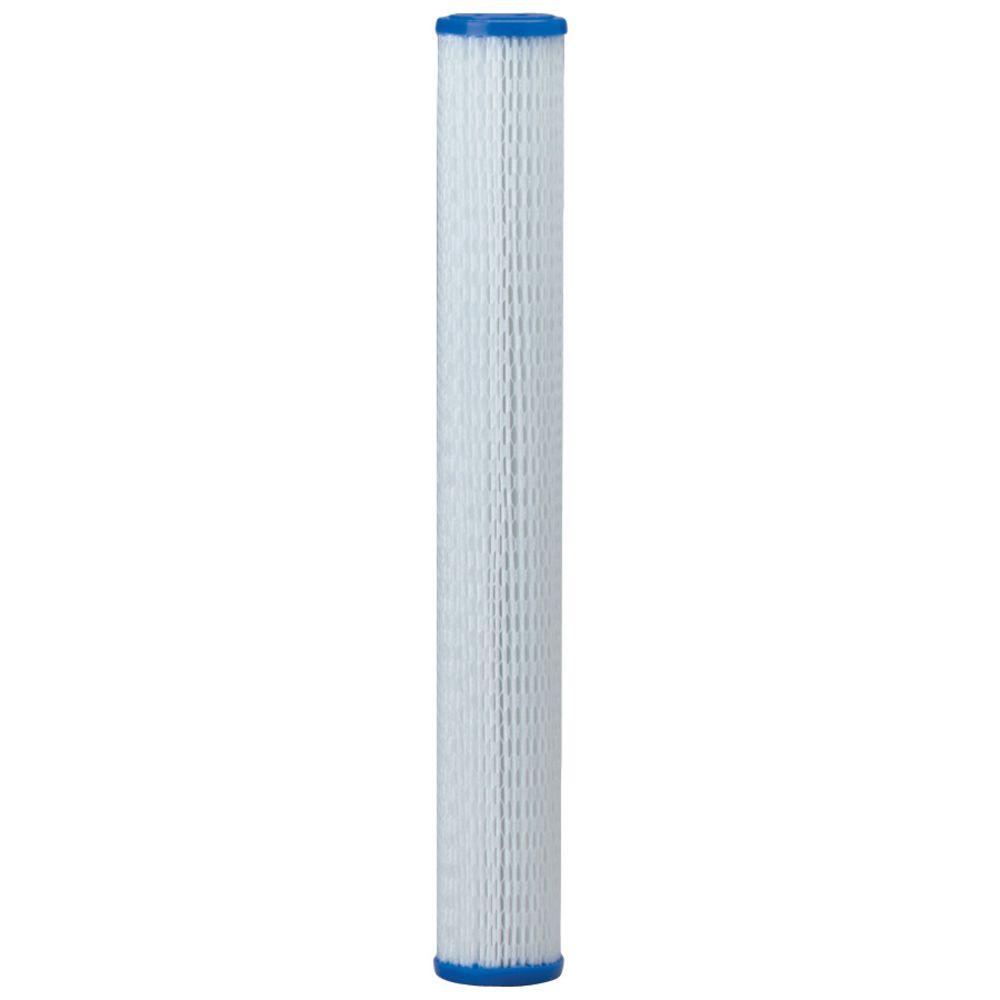

20" Pentek R30-20 Reusable Pleated Polyester 30 Micron Filter

20" Pentek R30-20 Reusable Pleated Polyester 30 Micron Filter Features:

R Series cartridges are manufactured from a durable, non-woven and reusable polyester fabric that is suitable for a wide range of filtration uses.
The media is pleated around a polypropylene core for added strength and the ends are are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unified end cap and gasket. The overlap seam is sonically welded to reduce internal bypass improving filtration efficiency.

Replacement filter for most 20" Standard Housings
Pleated design maximizes dirt-holding capacity
Versatile and reusable, allowing for a variety of uses
Durable non-woven polyester media is bacteria and chemical resistant
Applications: potable water, light industrial applications, swimming pool and spa, and well water applications

Pentek R30-20 Pleated Polyester Filter Specifications

Also known as:

Keystone

GPE30-20

Filter Specifications

Micron Rating (Nominal)

30 µm

Manufacturer

Pentek

Dimensions

Length

20" (50.8 cm)

Outer Diameter

2.625"

Quantity per case

Operating Conditions

Flow Rate

10 gpm

Initial Pressure Drop

1 psid

Temperature Rating

40-125 °F

Filter Life

Change Frequency

As Needed

Materials of Construction

End Cap Material

Vinyl-Plastisol

Filter Media

Non-Woven Polyester

End Caps

DOE

Certifications

Mouse over for more information.
