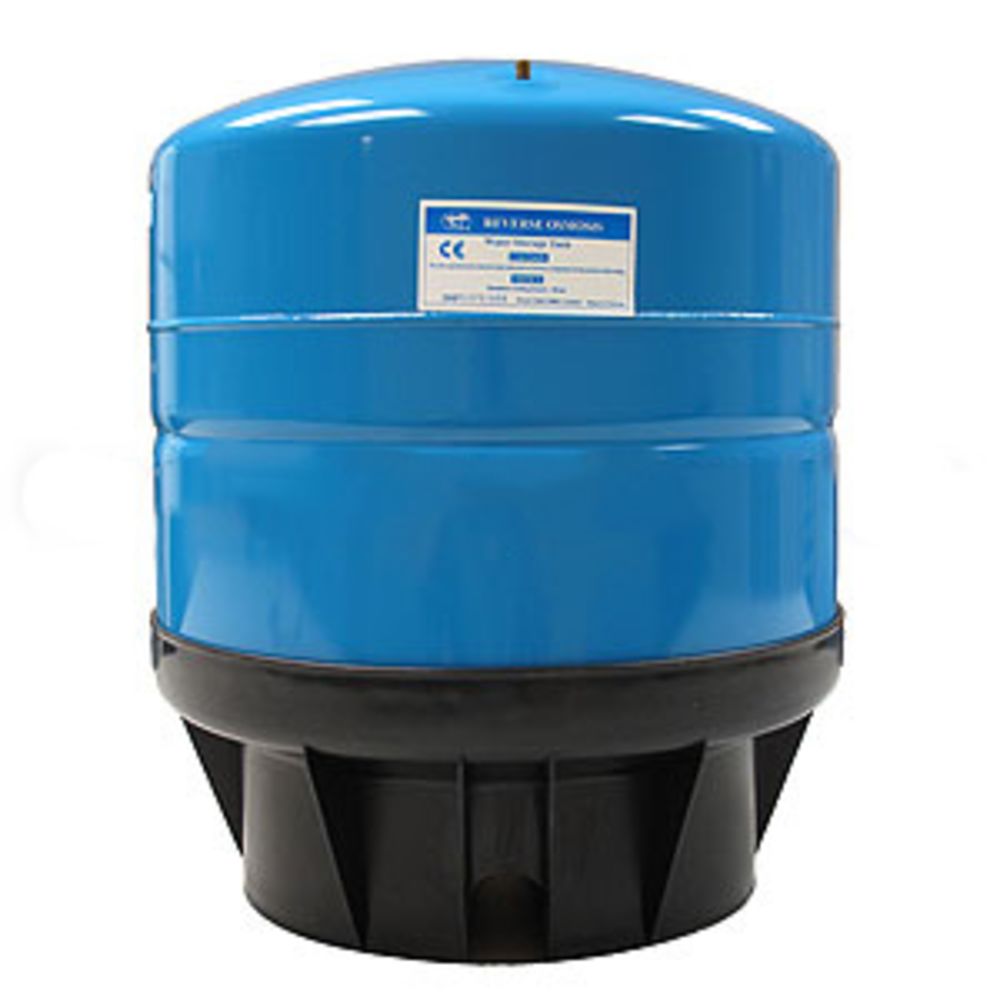

RO Water Storage Tank 20 Gal Steel

Model: RO-2000
Part Number: ROT-20
Alt. Part Number: RO-20, 144-120, 55984-07

Price: $139.88

Qty:

ROT-20 - 20 Gallon RO Tank Features:

20 gallon storage tank for Reverse Osmosis or Well Pump Tank applications.
Stainless steel connection avoids leaching issues
Features a Powder Coated Steel Exterior and Fully Enclosed Polypropylene & Butyl Water Reservoir
Air pre-charge is Factory set at 38 psi for pump tank applications
For RO Applications, reduce pre-charge to 10-20 PSI to maximize water storage.
Comparable to the Amtrol RO-20 tank (144-120)

Tank Specifications

Total Volume

20 Gallons

Holding Capacity @ 40 psi

11 Gallons

Tank Pre-charge

7 psi

Inlet/Outlet Size

3/4" or 1" MPT Stainless Steel

Inlet/Outlet Location

Bottom

Air Valve Stem Location

Side

Dimensions

Height w/ Stand

30 "

Diameter

16 "

Weight

37 lbs

Operating Conditions

Max Working Pressure

100 psi

Tank Materials

Steel

Diaphragm Materials

Butyl Rubber

Origin

Taiwan

Certifications

NSF 61

Warranty

1 years
