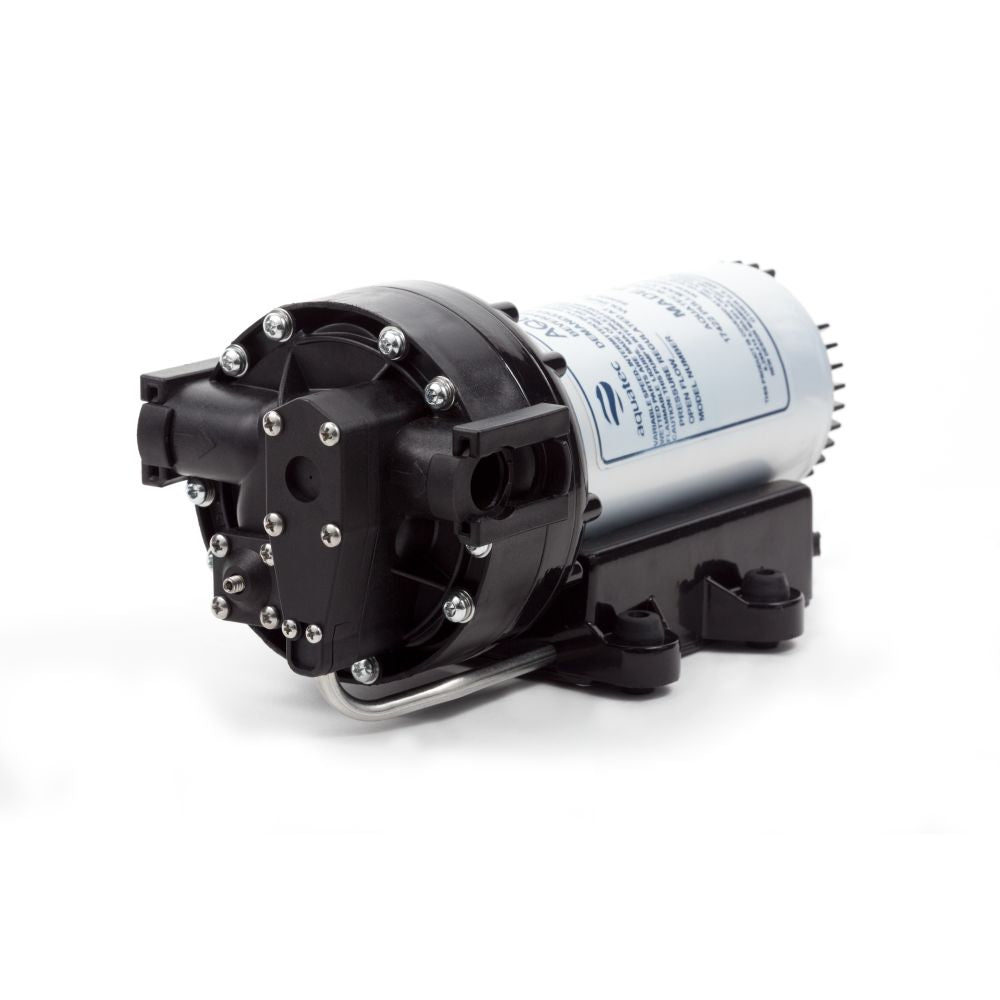

Aquatec 5502-IDN2-V77DUL Variable Speed Pump 4.3 GPM @ 50 PSI

Aquatec Variable Speed, 4.3 gpm 50psi 115V UL Features:

The Aquajet Variable Speed Smart Pump provides constant pressure and integrates a state-of-the-art digital controller which maintains a constant pressure (within 2 PSI) for variable flow rates throughout their operating ranges. A pressure transducer monitors any pressure changes and adjusts the operating speed accordingly.

Great for applications with long lengths of hose or that require variable flow rates such as multiple fixtures drawing fluid from a single source.

50 PSI Standard Setting
3/4" Quad Ports
5 Chamber Diaphram
6 Ft. Line Cord

Aquatec 5502-IDN2-V77DUL Smart Pump Benefits:

Constant pressure across multiple outlets
No accumulator tanks required
Reduces system bacteria
Reduces space requirements
No pressure switches required
Less system service required
Plug-and-play performance

Aquatec 5501-1EN2-V77D Variable Speed Pump Technical Information
Aquatec 550 Series Operation and Installation Manual

Also known as:

Advanced Water Products RO-QC3 / RO-QC4 / RO-QC4P

IDN2-V77D

Pump Specifications

Pump Type

Variable Speed Booster

Inlet

3/4" Quad Port

Outlet

3/4" Quad port

Flow Rate

4.3 gpm gpm

Voltage

115VAC

Motor RPM

2200 RPM

Power Cord

Lead Wires & 180° Front Bell Rotation

Operating Conditions

Shut-off Pressure

50 psi

Liquid Temperature

Max 140 °F

Dimensions

Length

7.28 "

Height

3.93 "

Width

5.25 "

Materials

Housings

Polypropylene

Valves

EPDM

Diaphragm

Santoprene

Certifcations

Mouse over for more information.
