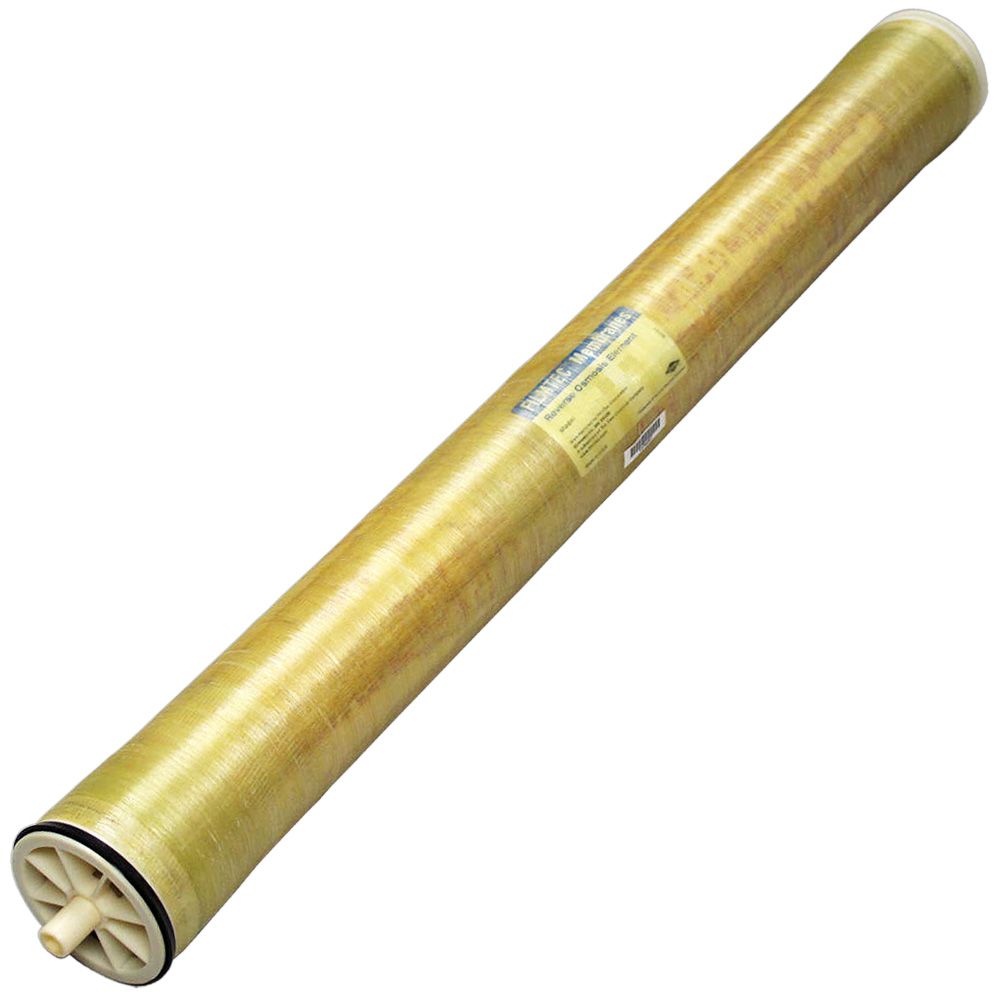

Filmtec SW30HR-380 Sea Water 6000 GPD RO Membrane Element

Sea Water Membrane

6000 Gallon Per Day

Part Number: SW30HR-380

Price: $1,019.75

Qty:

Details
Specs
Reviews
Related

Filmtec SW30HR-380 Sea Water Membrane 7.9" x 40" 6000 GPD HR Features:

The Dow FILMTEC SW30HR-380 Sea Water Membrane is specifically designed for applications where the higher TDS (Total Dissolved Solids) of marine water is addressed by the a thin film composite which sustains the higher pressures typically utilized in sea water reverse osmosis applications while maintaining the High Rejection (HR) performance of 99.7 percent stabilized salt rejection.

Up to 6000 Gallon Per Day production
StabilizedSalt Rejection: 99.7%
Up to 800 SIPG
Fits Standard 8" Housings or Pressure Vessels
Effectively used in permeate staged seawater desalination systems without impairing the performance of the downstream stage
Features a 34 mil feed spacer, alleviating the impact of fouling on pressure drop across a vessel and enhances cleaning capability
Delivers high performance over the operating lifetime without the use of oxidative post-treatments like many competitive products
More durable and may be cleaned more effectively over a wider pH range (1-12) than other RO elements
Automated, precision fabrication reduces element variability, increases reliability and maixmizes element efficiency, lowering your cost of operation

Dow FILMTEC SW30HR-380 Sea Water RO Membrane Element Specifications

Also known as:

Filmtec Membranes

SW30HR-320, 231995, 135137

Production

Applied Pressure

800 psi

Permeate Flow Rate

6000 gpd

Average NaCl Rejection

99.7 %

Dimensions

Length

40 "

Diameter

7.9 "

Operating Conditions

Max Temperature

113 °F

Max Pressure

1000 psi

Maximum Pressure Drop

15 psid

pH Range, Continuous Operation

2-11

pH Range, Short Term Cleaning

1-13

Maximum Feed Silt Density Index

5 SDI

Chlorine Tolerance

<0.1 ppm

Membrane Specifications

Membrane Style

Drop-in Element

Materials

Polyamide Thin-Film

Active Area

380 ft²

Outer Wrap

Fiberglass

Certifications
