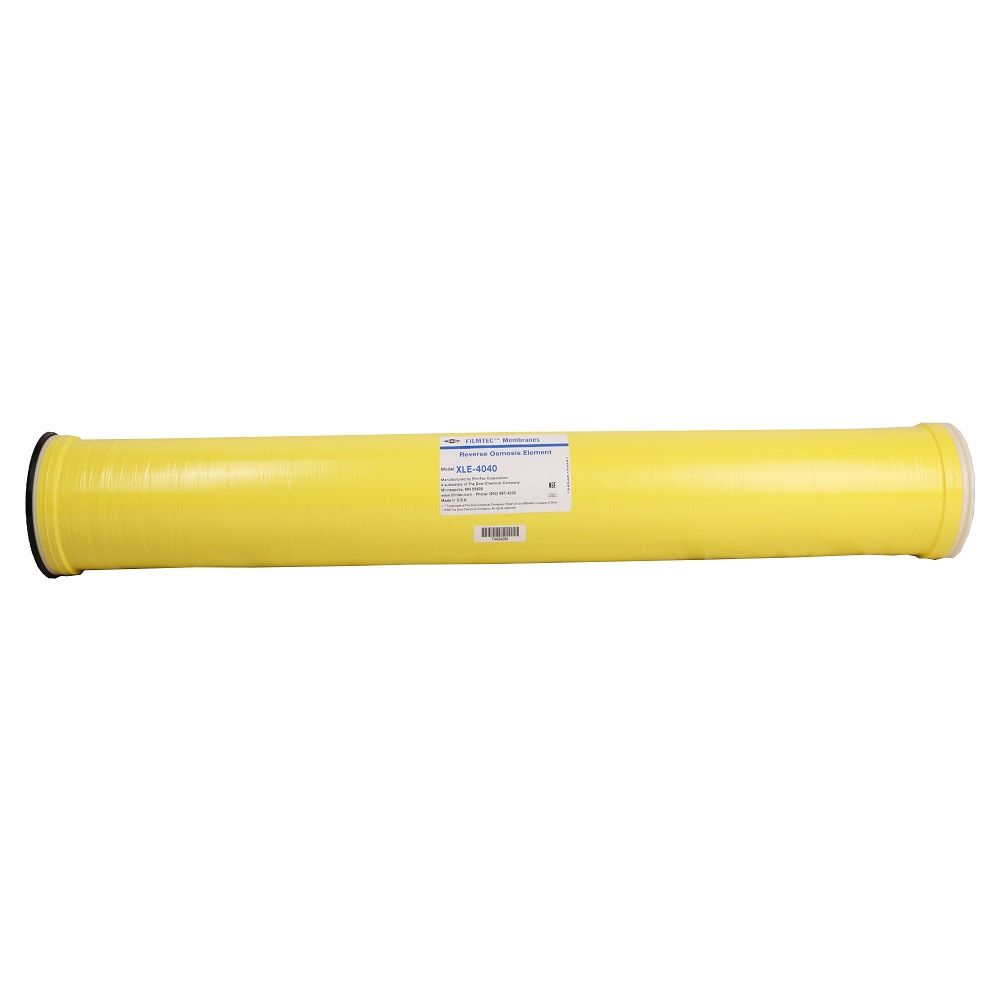

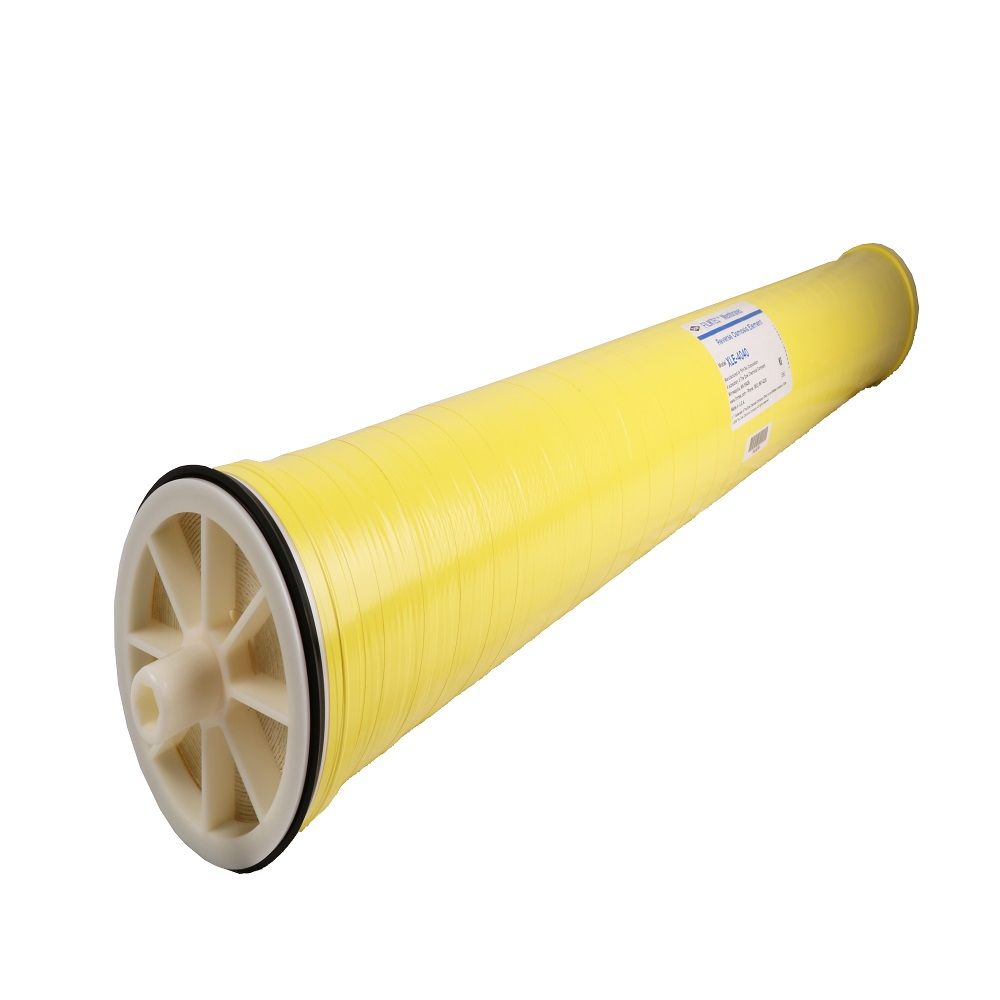

Filmtec XLE-4040 Tap Water Extra Low Energy 2600 GPD RO Membrane Element

Filmtec XLE-4021 Tap Water - Extra Low Energy 1025 GPD RO Membrane Element

Filmtec XLE-4040 Tap Water Extra Low Energy Membrane 4" x 40" 2600 GPD Features:

The Dow FILMTEC XLE Membranes are engineered to optimize performance at very low applied pressure in commercial applications. The XLE (Extra Low Energy) membranes replace the older TW30LE technology, and are available in both wet and dry packaging for extended shelf-life or rapid start-up.

Up to 2600 Gallon Per Day production
Up to 600 SIPG
Fits Standard 4" Housings or Pressure Vessels
Better system performance & economics by operating at very low applied pressure
Made with a patented technology
Provides consistent and reliable system performance
May be cleaned over the widest pH range (pH 1-13) for the most effective cleaning
The new XLE series of elements replaces TW30LE elements which were made with an older membrane technology

Dow FILMTEC XLE-4040 Extra Low Energy Membrane Element Specifications

Also known as:

Desal AG-Series Tap Water/Brackish RO Elements, Dry	1206816
Filmtec Membranes	154546

Production

Applied Pressure

100 psi

Permeate Flow Rate

2600 gpd

Average NaCl Rejection

99 %

Dimensions

Length

40 "

Diameter

3.9 "

Operating Conditions

Max Temperature

113 °F

Max Pressure

600 psi

Maximum Pressure Drop

13 psid

pH Range, Continuous Operation

2-11

pH Range, Short Term Cleaning

1-13

Maximum Feed Silt Density Index

5 SDI

Chlorine Tolerance

<0.1 ppm

Membrane Specifications

Membrane Style

Drop-in Element

Materials

Polyamide Thin-Film

Active Area

87 ft²

Outer Wrap

Tape

Certifications

Mouse over for more information.
