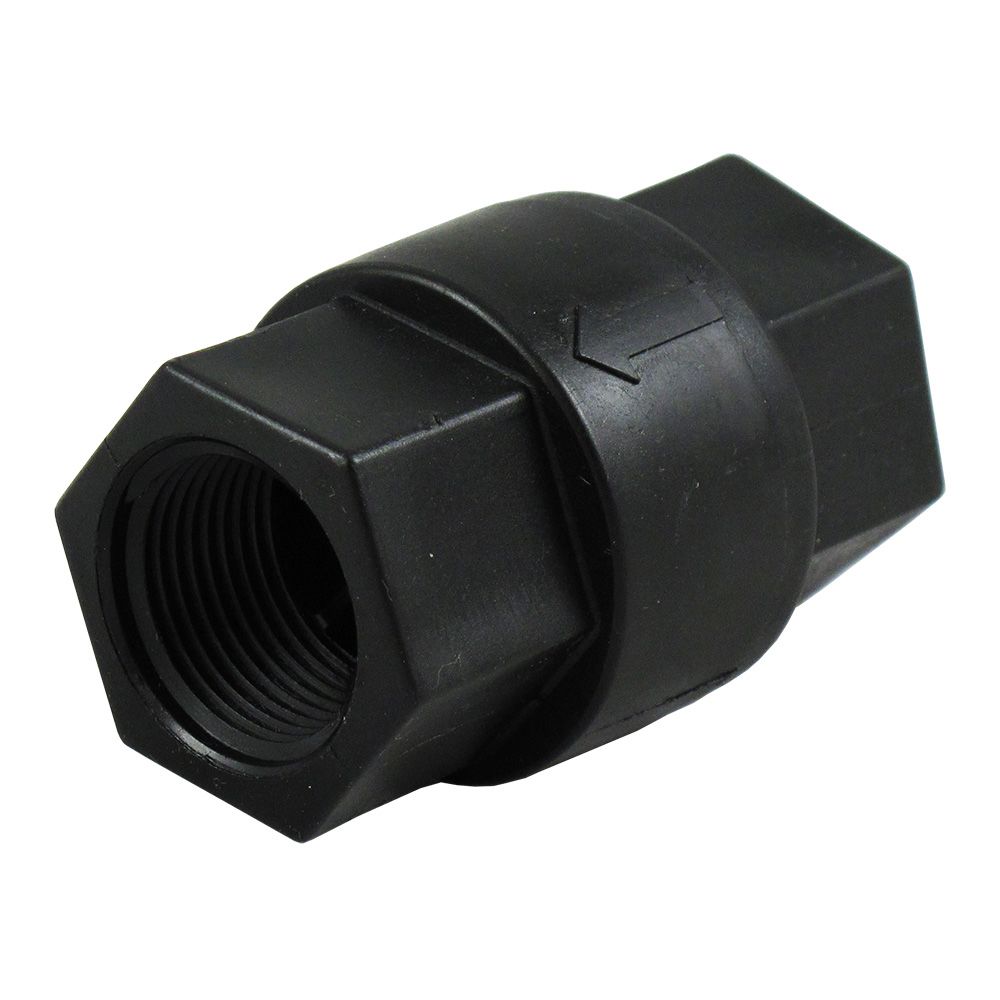

Inline Poppet Check Valve 687 Series PP 3/4" FPT - BUNA

Model: 687 Series
Part Number: 6870090
Alt. Part Number: FP CHK 687-12F12F-B

Price: $12.48

5+ for $9.98 ea
10+ for $8.74 ea
20+ for $8.11 ea

Qty:

Details
Reviews
Related

The 687 Series Inline Poppet Check Valve 3/4" FPT

The 687 Series Poppet Check Valve prevents reverse flow and cross contamination and incorporates a thin elastomer disc supported by a poppet that seals on the seat. Pressure in the flow direction moves the seal off the seat first before pressure builds enough to move the poppet away from the seat. The 687 Series Check Valve maximum operating pressure of 125 psi covers a wide range of air and fluid applications. The 687 Check is a compact design with a light cracking pressure, high flow rate, and a positive seal at very low back pressure or slight vacuum. For higher cracking pressure applications, an embedded o-ring poppet is substituted for the standard elastomer disc poppet.

Material	Polypropylene Body & Poppet, Black. Custom order: white
Seal	Buna-N. Custom order: Ethylene Propylene or Fluoroelastomer (Viton®)
Inlet x Outlet	3/4 Female NPT X 3/4 Female NPT
Cracking Pressure	302 Stainless Spring @ 1/3 psi. Custom order: 7 psi and Hastelloy Spring @ 1/3 or 3 psi.
