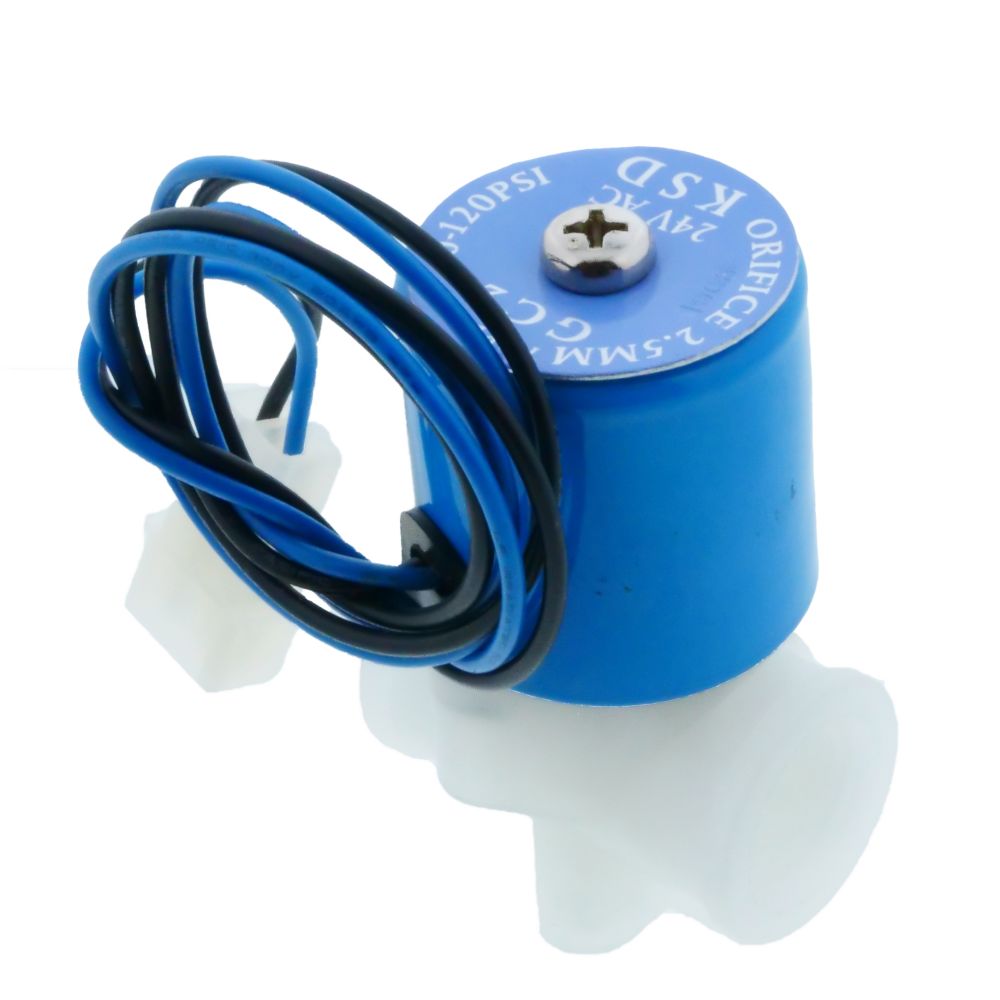

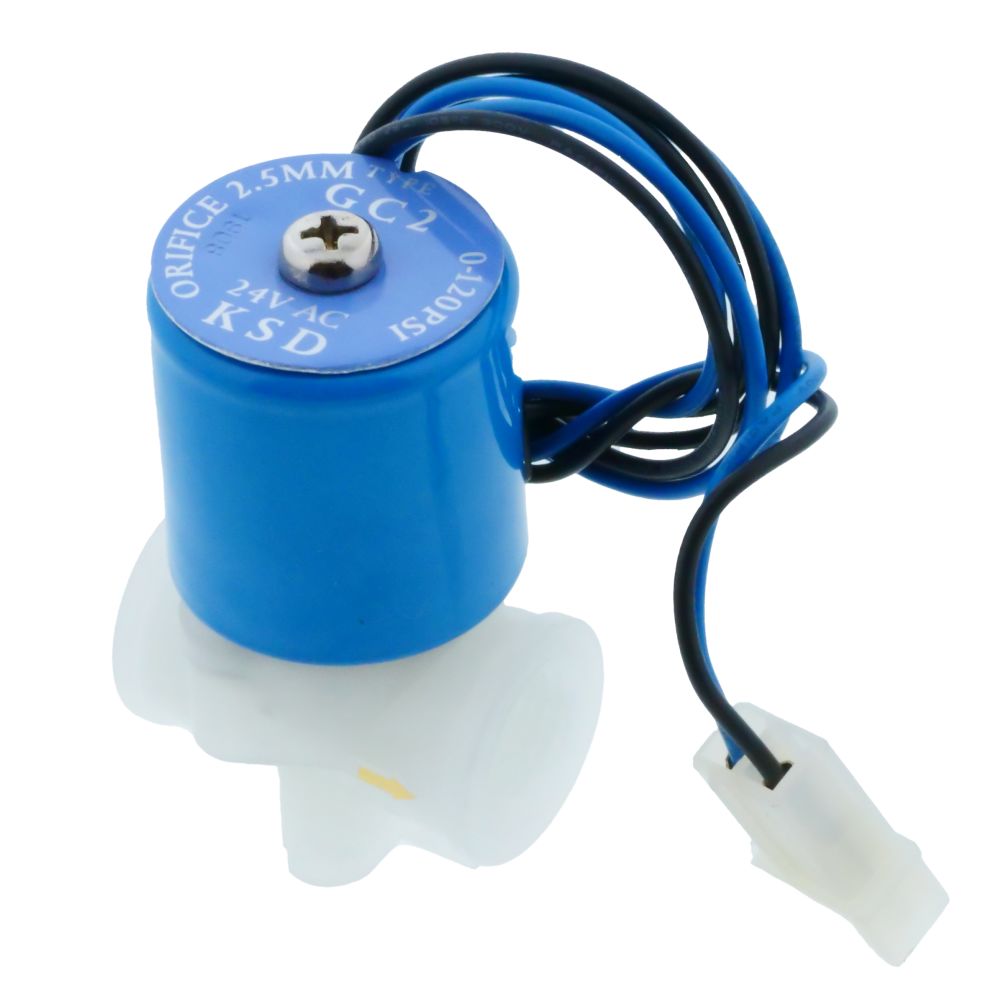

Electronic Shut-off Solenoid Valve with QC fittings 24VAC

Used in R.O. Systems as a Feed Water Control Valve. The Electronic Shut Off Valve automatically closes the feed water when the RO tank is full as determined by Tank Pressure Switch.

Model: ESO DC-100 Electronic Shut-Off
Part Number: 1102X-062CE-B205AN
Alt. Part Number: 622-1004N-1IAJG

Options

1/4" QC

1102X-062CE-B205AN-14

$27.99

3/8" QC

1102X-062CE-B205AN-38

$29.99

Details
Specs
Reviews
Related Items

ESO DC-100 Electronic Shut-off Solenoid Valve with QC fittings Features:

Feed water control valve is used in combination with the tank and the pump pressure switch to automatically close OFF the feed water source when the RO tank is full.

Conserves water
Positive shut-off
Compact design
Plastic valve body
Low power
Cool running
Hermetically protected electronics for long life

COMPRABLE TO: Shurflo 94-091-00

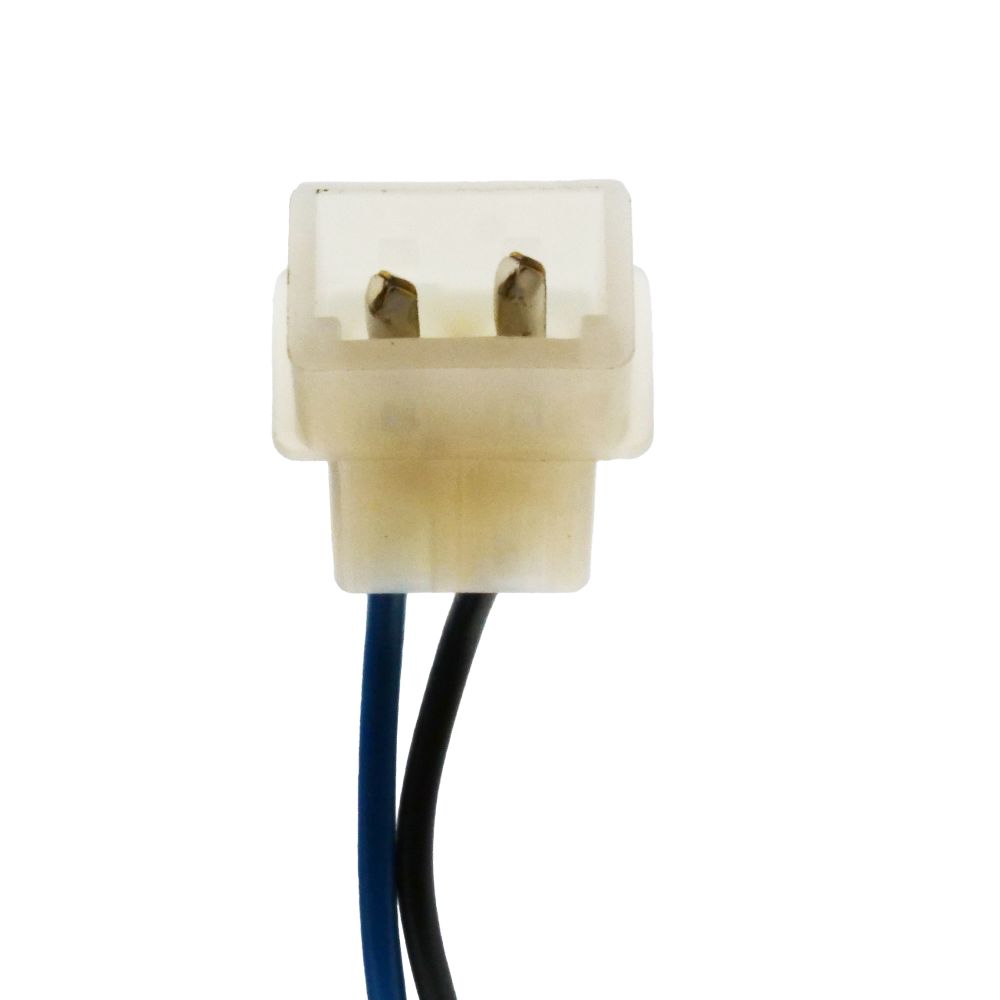

NOTE: A wire harness is required with a one plug power source

Specifications

Port Size

1/8 NPT "

Normally Open or Normally Closed

Closed

Voltage

24 - 50/60

Temperature Range

max. 180°F (+82°C)

Eclosure/Terminations

1/2 FPT "

Leads

24 "

Operating Pressure Differential

AC - 150 PSI / 10.34 Bar

Wetted Materials

EPDM, Polypropylene, Stainless Steel

Certifications

NSF Certified

YES

Orifice Size

3/32 "

Mouse over for more information.
