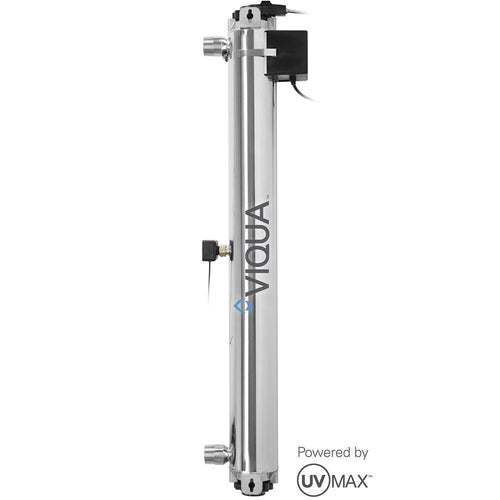

Viqua Pro30 NSF Class A Monitored UV System Powered by UVMax 30 gpm - 120 Volt
Part Number: 650659
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Features:
- Type 316 stainless steel reactor
- Color coded plug and play connections
- UV lamp has twice the output of current high-output lamps. Lamp last two years, reducing maintenance requirements
- UV intensity monitor with diagnostic test
- CoolTouch fan significantly reduces water temperature, and doesn't waste any water
- Solenoid Valve Kit w/ manual override for shocking the water lines is also available
- Dynamic flow restrictor
- Fully NSF certified to NSF/ANSI Standard 55 Class A
- Full 5 year warranty
This standard establishes requirements for point-of-use (POU) and point-of-entry (POE) non-public water supply (non-PWS) ultraviolet systems and includes two optional classifications.Class A systems (40mJ/cm²) are designed to disinfect and/or remove microorganisms from contaminated water, including bacteria and viruses, to a safe level.Class B systems (16mJ/cm²) are designed for supplemental bactericidal treatment of public drinking water or other drinking water, which has been deemed acceptable by a local health agency.
Trojan Lamp (1): 602856
Trojan Quartz Sleeve (1): 602976
Trojan O-Rings (2): 2233
Product Details | |
---|---|
Body Material | 316 Stainless Steel |
Features | UV Intensity Monitor Audible Lamp Failure |
Frequency Rate | 50/60 Hz |
Inlet Connection | 1-1/4" MPT 1" FPT |
Max Pressure (Psi) | 100 |
Min Pressure (Psi) | 15 |
Outlet Connection | 1-1/4" MPT 1" FPT |
Power | 230 Watts |
Size | 1-1/4" 1" |
System Class | Commercial Systems |
Connection Type | Male (MPT) Female (FPT) |
Contaminants Reduced | Bacteria Heavy Metals Cysts |
Flow Rate | 30 GPM (40mJ/cm2 Dose) |
Type | Single UV System |
Voltage | 120 V |
Warranty & Certifications | |
Certifications | NSF/ANSI Standard 55, Class A, CE Standards |
Shipping Dimensions | |
Shipping Length | 49 in. |
Shipping Width | 15.38 in. |
Shipping Height | 7.5 in. |
Product Weight & Dimensions | |
Power Supply Dimensions | 13" x 6-1/2" |
Product Height | 7.5 in. |
Product Length | 49 in. |
Product Width | 15.38 in. |
Product Weight (lbs) | 32.01875 |
Features:
- Type 316 stainless steel reactor
- Color coded plug and play connections
- UV lamp has twice the output of current high-output lamps. Lamp last two years, reducing maintenance requirements
- UV intensity monitor with diagnostic test
- CoolTouch fan significantly reduces water temperature, and doesn't waste any water
- Solenoid Valve Kit w/ manual override for shocking the water lines is also available
- Dynamic flow restrictor
- Fully NSF certified to NSF/ANSI Standard 55 Class A
- Full 5 year warranty
This standard establishes requirements for point-of-use (POU) and point-of-entry (POE) non-public water supply (non-PWS) ultraviolet systems and includes two optional classifications.Class A systems (40mJ/cm²) are designed to disinfect and/or remove microorganisms from contaminated water, including bacteria and viruses, to a safe level.Class B systems (16mJ/cm²) are designed for supplemental bactericidal treatment of public drinking water or other drinking water, which has been deemed acceptable by a local health agency.
Trojan Lamp (1): 602856
Trojan Quartz Sleeve (1): 602976
Trojan O-Rings (2): 2233
