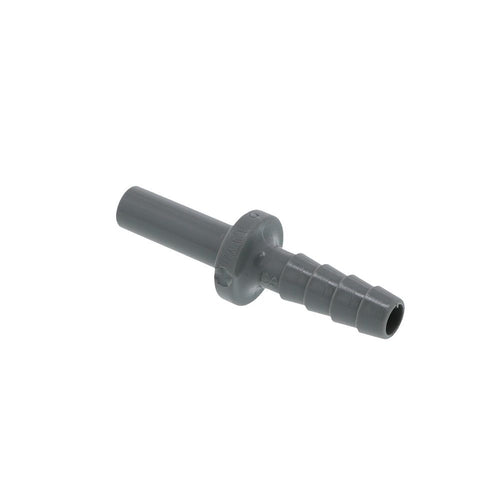

John Guest Stem Barb Connector - 1/4 OD Stem x 1/4 ID Barb
Part Number: PI250808S
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
The John Guest stem adapter makes connecting hose to Push-fit fittings quick and easy. Manufactured in gray acetal, these adapters are suitable for foodstuff and potable liquids. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.
Features:
- Push-fit Technology creates reliable, leak-free connections
- Stem easily inserts into JG Push-fit fittings to make a permanent swivel connector
- Compatible with plastic or copper OD sized tubing
- Connect, disconnect, and reconnect in seconds without tools
- Food Quality and suitable for potable liquids and pure water applications
- Can be used for air/pneumatic & vacuum applications
- Acetal body
- Made with lead free materials
Working pressure and temperature:
- Max. 150 psi at 68° F
- Max. 100 psi at 150° F
JG gray acetal is suitable for both compressed air and water (buna-n seal).
WARNING!
| Product Details | |
|---|---|
Application | Water Air Food Beverage |
Barb Size | 1/4" ID |
Body Material | Acetal Copolymer |
Max Pressure (Psi) | 230 |
Max Temp (°F) | 150 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -4 |
Mounting Options | Free Floating |
Seal Material | Buna-N |
Series | PI |
Shape | Straight |
Stem Size | 1/4" OD |
Color / Finish | Gray |
Origin | UK |
Sub-Type | Stem to Barb Adapter |
Type | Adapter |
| Warranty & Certifications | |
Certifications | NSF 51, NSF 61, FDA Approved Materials, Lead Free |
| Product Details | |
|---|---|
Application | Water Air Food Beverage |
Barb Size | 1/4" ID |
Body Material | Acetal Copolymer |
Max Pressure (Psi) | 230 |
Max Temp (°F) | 150 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -4 |
Mounting Options | Free Floating |
Seal Material | Buna-N |
Series | PI |
Shape | Straight |
Stem Size | 1/4" OD |
Color / Finish | Gray |
Origin | UK |
Sub-Type | Stem to Barb Adapter |
Type | Adapter |
| Warranty & Certifications | |
Certifications | NSF 51, NSF 61, FDA Approved Materials, Lead Free |
| Product Details | |
|---|---|
Application | Water Air Food Beverage |
Barb Size | 1/4" ID |
Body Material | Acetal Copolymer |
Max Pressure (Psi) | 230 |
Max Temp (°F) | 150 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -4 |
Mounting Options | Free Floating |
Seal Material | Buna-N |
Series | PI |
Shape | Straight |
Stem Size | 1/4" OD |
Color / Finish | Gray |
Origin | UK |
Sub-Type | Stem to Barb Adapter |
Type | Adapter |
| Warranty & Certifications | |
Certifications | NSF 51, NSF 61, FDA Approved Materials, Lead Free |
The John Guest stem adapter makes connecting hose to Push-fit fittings quick and easy. Manufactured in gray acetal, these adapters are suitable for foodstuff and potable liquids. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.
Features:
- Push-fit Technology creates reliable, leak-free connections
- Stem easily inserts into JG Push-fit fittings to make a permanent swivel connector
- Compatible with plastic or copper OD sized tubing
- Connect, disconnect, and reconnect in seconds without tools
- Food Quality and suitable for potable liquids and pure water applications
- Can be used for air/pneumatic & vacuum applications
- Acetal body
- Made with lead free materials
Working pressure and temperature:
- Max. 150 psi at 68° F
- Max. 100 psi at 150° F
JG gray acetal is suitable for both compressed air and water (buna-n seal).
