Amtrol

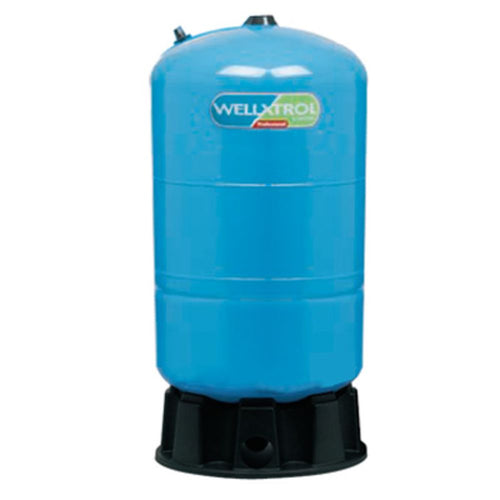

Amtrol Well-X-Trol WX-202D Well Pressure Tank With DuraBase 20 gal

Part Number: WX-202D

In Stock

out of stock

In Stock

$216.99


The Well-X-Trol WX-202D well tank delivers unparalleled performance and longevity, making them the most recognized brand on the market. With its sealed air charge and unique water chamber design, Well-X-Trol is the choice of professionals. WX-202D now comes standard with Tuf-Kote indoor/outdoor coating technology. This coating allows the well water storage tank to withstand the harshest environments, giving you years of worry-free service.

Features:
  • Heavy duty butyl diaphragm
  • Includes DuraBase Composite Stand
  • DuraBase Stand is UV resistant, rugged and will never corrode
  • Stainless steel system connection
  • Stainless steel air stem
  • Virgin polypropylene liner
  • 100% Helium tested
  • Drawdown 30/50 Setting: 8.0 gallons
  • Drawdown 30/50 Setting: 6.8 gallons
  • Drawdown 30/50 Setting: 5.9 gallons
  • 7 year warranty
  • NSF Standard 61 listed


Weight & Dimensions

Approx Weight

33 Lbs

Height W/ Stand

31-5/8 Inches

Details

Drawdown Volume

8.0 Gallons @ 20/40 Setting, 6.8 Gallons @ 30/50 Setting, 5.9 Gallons @ 40/60 Setting

Application

Pressure Pump Tank

Diameter

15-3/8 Inches

Diaphragm Materials

Butyl Rubber

Inlet/Outlet Size

1" NPTF Stainless Steel

Material Of Construction

Steel

Max Operating Pressure

150 PSI

Max Operating Temperature

200 Degrees Fahrenheit

Origin

USA

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre Charge

38 PSI

Volume

20 Gallons

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

7 years


Amtrol

Amtrol
