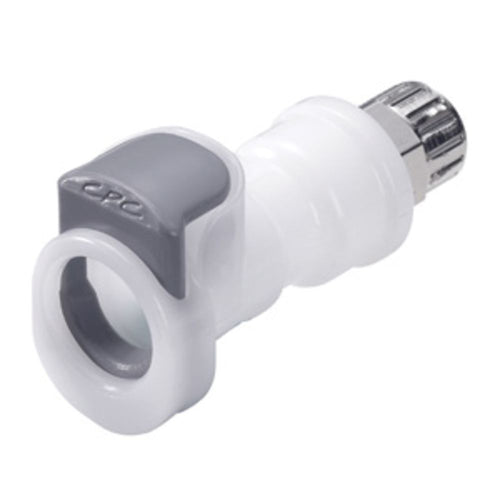

43200 NSF Valved In-Line PTF Coupling Body with Shroud 1/4 PTF
Part Number: 43200
Alt. Part Number: LinkTech 50ACV-SB9-06, APCD13004SH (Non-NSF)
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Specifications:
- Material: Acetal
- Material Finish: Natural
- Color: White
- Valve Option: Valved
- Mounting Option: Free Floating
- Seal Options: FDA EPDM
- Valve Spring: 316 Stainless Steel
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Temperature Range: -40°F to 180°F
WARNING!
| Product Details | |
|---|---|
Application | Water Food Beverage |
Body Material | Acetal Copolymer |
Inlet Connection | 1/4" FPT |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Nsf Version | Yes |
Number Of Seals | 1 |
Outlet Connection | 1/4" FPT |
Push-In Size | 1/4" OD |
Seal Material | FDA EPDM |
Series | APC |
Shape | Straight |
Size | 1/4" |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | White |
Connection Type | Female (FPT) |
Type | Coupling Body |
| Warranty & Certifications | |
Certifications | NSF 169 |
| Product Details | |
|---|---|
Application | Water Food Beverage |
Body Material | Acetal Copolymer |
Inlet Connection | 1/4" FPT |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Nsf Version | Yes |
Number Of Seals | 1 |
Outlet Connection | 1/4" FPT |
Push-In Size | 1/4" OD |
Seal Material | FDA EPDM |
Series | APC |
Shape | Straight |
Size | 1/4" |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | White |
Connection Type | Female (FPT) |
Type | Coupling Body |
| Warranty & Certifications | |
Certifications | NSF 169 |
| Product Details | |
|---|---|
Application | Water Food Beverage |
Body Material | Acetal Copolymer |
Inlet Connection | 1/4" FPT |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Nsf Version | Yes |
Outlet Connection | 1/4" FPT |
Push-In Size | 1/4" OD |
Seal Material | FDA EPDM |
Series | APC |
Shape | Straight |
Size | 1/4" |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | White |
Connection Type | Female (FPT) |
Type | Coupling Body |
| Warranty & Certifications | |
Certifications | NSF 169 |
Specifications:
- Material: Acetal
- Material Finish: Natural
- Color: White
- Valve Option: Valved
- Mounting Option: Free Floating
- Seal Options: FDA EPDM
- Valve Spring: 316 Stainless Steel
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Temperature Range: -40°F to 180°F
