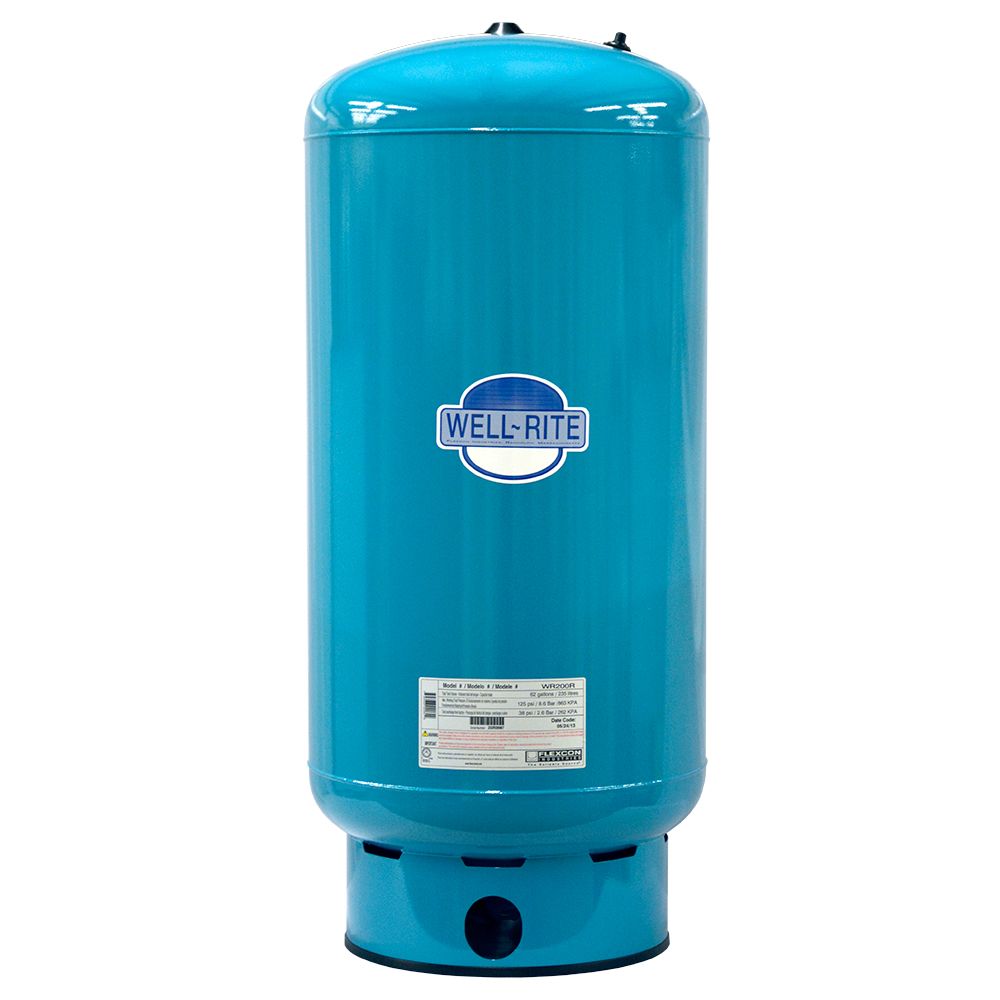

Well-Rite WR-260 Well Pressure Tank 85 Gallon Steel

WR-260 Flexcon IndustriesWR-260R
Mouse over to view larger image.
You might like:

Freight Only  NSF Certified  BPA Free  Made in USA

Part Number: WR-260
Alt. Part Number: WR-260R, FWR-260
This item is no longer available. We have replaced it with:
Amtrol Well-X-Trol WX-302 Well Pressure Tank 86 gal

Well-Rite WR-260 Well Pressure Tank Features:


The Well-Rite WR-260 Well Pressure Tank is a diaphragm type pre-charged hydro-pneumatic tank designed for residential and commercial water well, pressure booster, irrigation and reverse osmosis systems. The unique design of the WR-140 well water storage tank prevents tank corrosion and reduces wear and tear on your well pump.

  • Stainless steel system connection
  • Brass Air Valve with o-ring seal
  • Controlled Action Diaphragm maximizes drawdown
  • Heavy duty butyl diaphragm
  • Appliance quality urethane paint for indoor or outdoor installation
  • Drawdown 30/50 Setting: 29 gallons
  • 5 year warranty
  • NSF Standard 61 listed

Well-Rite WR-260 is compatible with the following tanks:

  • Well-X-Trol WX-302
  • Wel-Flo WF260
  • Sta-Rite PSP220-T52
  • Sta-Rite PS85-T52
  • Sta-Rite PSP85-T52
  • Flex2Pro H2P-85
  • Champion CH17002
  • How 2 Tank HT86
  • Goulds V260
  • A.O. Smith SSB-85, PM-86
  • Flex2Pro WWT-85



The Well-Rite WR-260 85 gallon storage tank can be used for reverse osmosis or well pressure tank applications. The stainless steel connection and fully enclosed polypropylene & butyl water reservoir avoids leaching issues. The air pre-charge is factory set at 38 psi for well tank applications and should be reduced to 7 PSI for RO applications.

Eletrical
Tank Specifications
Pressure Pump Tank, RO Water Storage
85 Gallons
38 psi
1-1/4" FNPT Stainless Steel
Bottom
Top
34.3 Gallons
29 Gallons
25.1 Gallons
Dimensions
44.5 "
26 "
121 lbs
Operating Conditions
140 °F
125 psi
Drawn Steel w/ Epoxy Finish
Butyl Rubber
USA
Certifications
NSF Certified to Standard 61
Warranty
5 years
