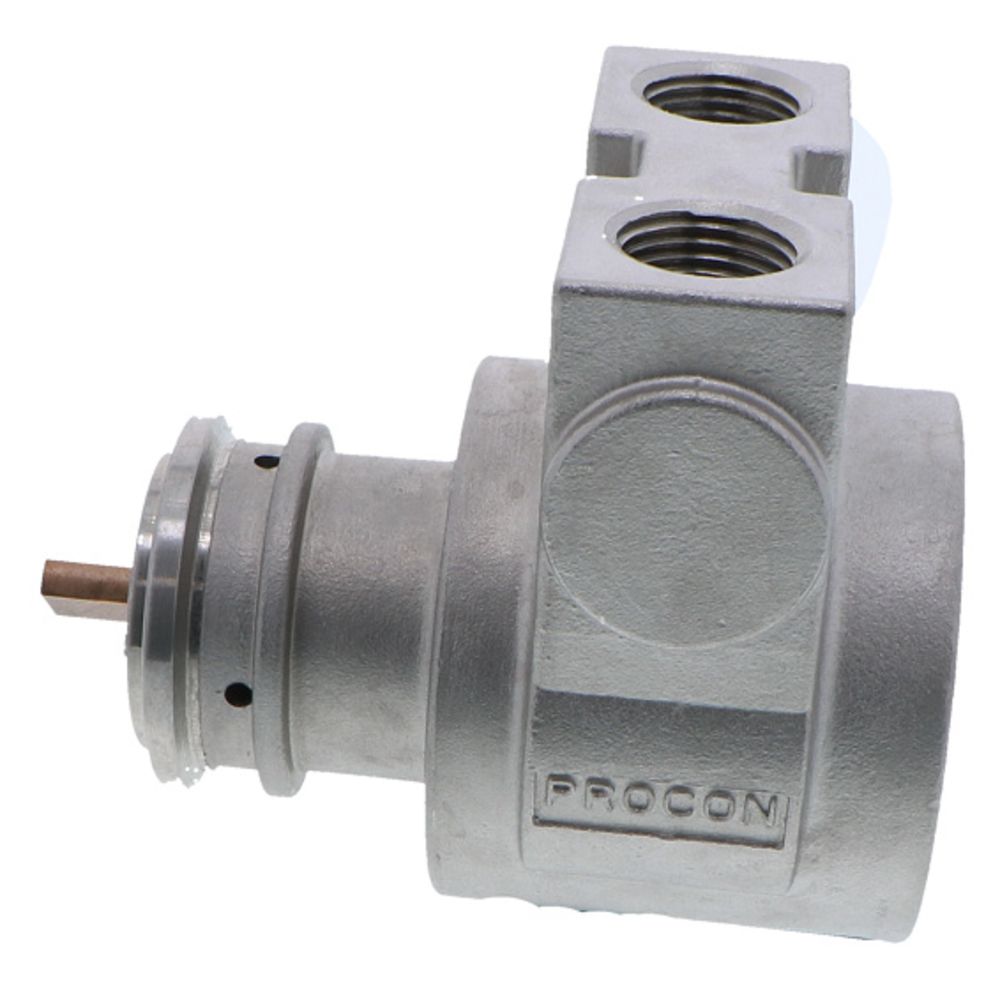

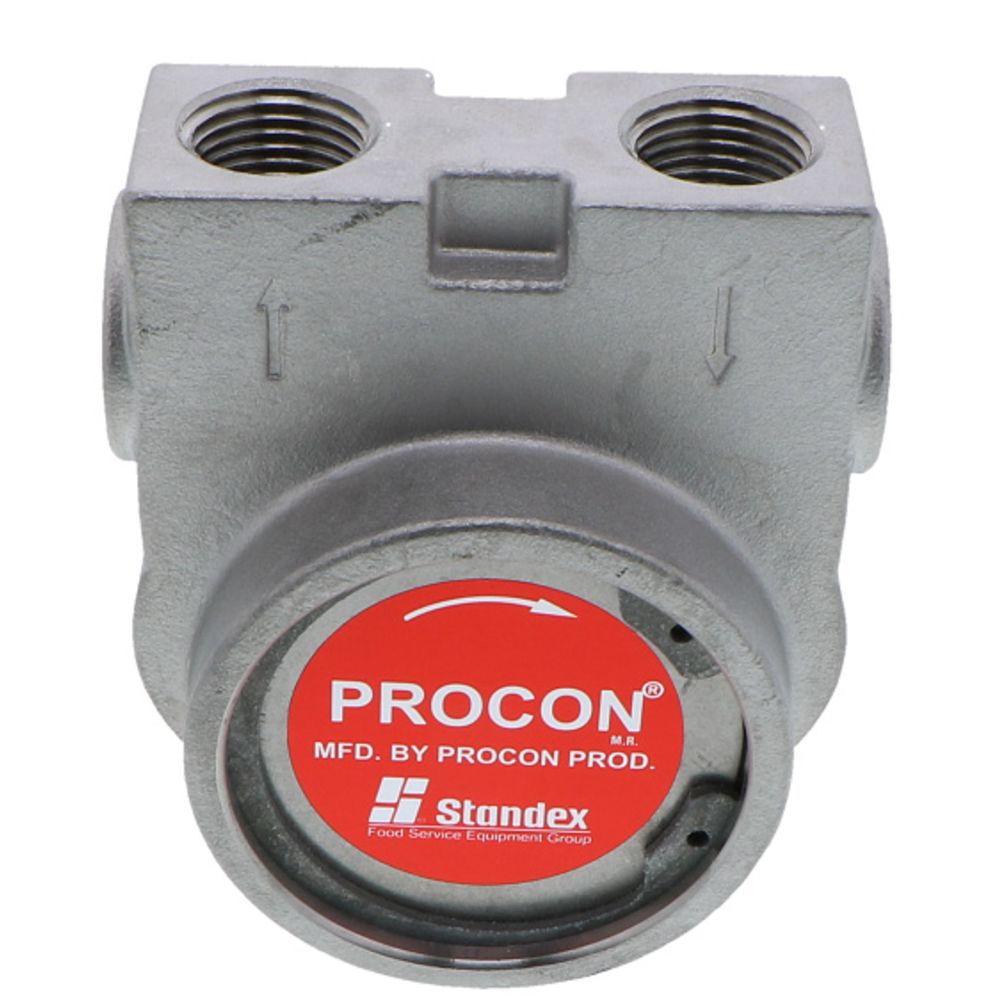

Procon Pump Stainless Steel w/ 1143 Bronze Coupling 190 GPH 1/2" NPT

Procon Pump Stainless Steel w/ 1143 Bronze Coupling 190 GPH 1/2-inch NPTShow Picture 1Show Picture 2
Mouse over to view larger image.

Free Shipping!
Part Number: 105B190F31X
In Stock, Ready to Ship!
MSRP: $294.69
Price: $210.49
Qty:

How do we compare?
$230.64 $20.15 more ea @ h2oPurificationSystems
  as of Jul 21, 2018

Procon Series 5 Pump Applications:


Procon 105B190F31XX rotary vane pump is a positive displacement pump. This Series 5 Procon pump is stainless steel with 1143 Bronze Coupling. The inlet and outlet ports are 1/2" NPT and the pump has a flow-rate of 190 gallons per hour. The seal configuration for the 105B190F31XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 5 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 105B190F31XX pump is designed to be directly connected to the motor with a stainless steel clamp.

  • Capacity: 190 GPH
  • Nominal Speed: 1725 RPM
  • Maximum Discharge Pressure: 250 PSI
  • Rotation: clockwise/slinger
  • Weight: 2.5 lbs
  • Port Size: 1/2" NPT Inlet and Outlet
  • Bronze Coupler


Procon Pump Owner's Manual
Procon Model Number Ordering Guide
Procon Series 5 Pump Specifications
Procon Series 5 Pump Line Drawings
Certifications
N/A
0: Non-Food Grade
Dimensions
Stainless Steel - 1/2" NPT
CLAMP ON WITH 1143 BRONZE COUPLING
Standard
Materials
NO RELIEF VALVE
Stainless Steel
Nitrile (Buna-N)/ Type 21
Operating Conditions
1725
250 psi
Clockwise / Slinger
190 - Gallons Per Hour
1-2
Specifications
