Twin Inlet High Flow Dual Air Gap with Brass Cover Cap

Twin Inlet High Flow Dual Air Gap with Brass Cover Cap Show Picture 1Show Picture 2Show Picture 3Show Picture 4
You might like:

Made in USA

Part Number: TAG
Alt. Part Number: DLA-TAG
Cover Cap Options


Cover Cap Options

Polished Chrome Brass
Polished Chrome Brass
TAG-NC-NF|TAG-CB-CH
$27.59
Qty:
Antique Brass
Antique Brass
TAG-NC-NF|TAG-CB-ABS
$32.94
Qty:
Antique Bronze
Antique Bronze
TAG-NC-NF|TAG-CB-ABZ
$32.94
Qty:
Antique Copper
Antique Copper
TAG-NC-NF|TAG-CB-ACP
$32.94
Qty:
Antique Pewter
Antique Pewter
TAG-NC-NF|TAG-CB-APEW
$32.94
Qty:
Black Oil Rubbed Bronze
Black Oil Rubbed Bronze
TAG-NC-NF|TAG-CB-BORB
$32.94
Qty:
Coco Bronze
Coco Bronze
TAG-NC-NF|TAG-CB-CCB
$32.94
Qty:
English Bronze
English Bronze
TAG-NC-NF|TAG-CB-EBZ
$32.94
Qty:
Oil Rubbed Bronze 80
Oil Rubbed Bronze 80
TAG-NC-NF|TAG-CB-ORB
$27.59
Qty:
Oxford Oil Rubbed Bronze 87
Oxford Oil Rubbed Bronze 87
TAG-NC-NF|TAG-CB-OORB
$27.59
Qty:
Polished Brass PVD
Polished Brass PVD
TAG-NC-NF|TAG-CB-PBPVD
$28.24
Qty:
Polished Copper
Polished Copper
TAG-NC-NF|TAG-CB-PCP
$32.94
Qty:
Polished Nickel PVD
Polished Nickel PVD
TAG-NC-NF|TAG-CB-PNPVD
$32.94
Qty:
Satin Brass PVD
Satin Brass PVD
TAG-NC-NF|TAG-CB-SBPVD
$32.94
Qty:
Satin Chrome
Satin Chrome
TAG-NC-NF|TAG-CB-SC
$32.94
Qty:
Satin Nickel PVD
Satin Nickel PVD
TAG-NC-NF|TAG-CB-SNPVD
$32.94
Qty:
Soft Pewter
Soft Pewter
TAG-NC-NF|TAG-CB-SPEW
$32.94
Qty:
Tuscan Brass
Tuscan Brass
TAG-NC-NF|TAG-CB-TBS
$32.94
Qty:
Venetian Bronze
Venetian Bronze
TAG-NC-NF|TAG-CB-VBZ
$32.94
Qty:
Weathered Brass
Weathered Brass
TAG-NC-NF|TAG-CB-WBS
$32.94
Qty:
Weathered Copper
Weathered Copper
TAG-NC-NF|TAG-CB-WCP
$32.94
Qty:
Biscuit (29)
Biscuit (29)
TAG-NC-NF|TAG-CB-BIS
$32.94
Qty:
Black (31)
Black (31)
TAG-NC-NF|TAG-CB-BLK
$32.94
Qty:
White (52)
White (52)
TAG-NC-NF|TAG-CB-WH
$32.94
Qty:

Twin Inlet High Flow Dual Air Gap Features:


The DLA-TAG is a two inlet airgap (TAG) that connects two separate drain lines to a single countertop dishwasher air-gap device. The TAG dual inlet dishwasher air gap is specifically designed for double dishwasher drawers or to connect drain lines from any combination of dishwasher, Reverse Osmosis or water softeners. The DLA-TAG is also known as a double air gap.

  • Ideal for Reverse Osmosis appliances
  • Ideal Dual Air Gap for Double Drawers
  • Ideal for two dishwashers or any dishwasher with high output (high flow rates) drain discharge such as Hobart, Miele and Bosch
  • Expensive Air Gap Faucet no longer required and allows for a larger selection of designer faucets
  • Eliminate noisy drains
  • Allows for legal installation - eliminates need for drain saddles which are commonly used and cause leaks

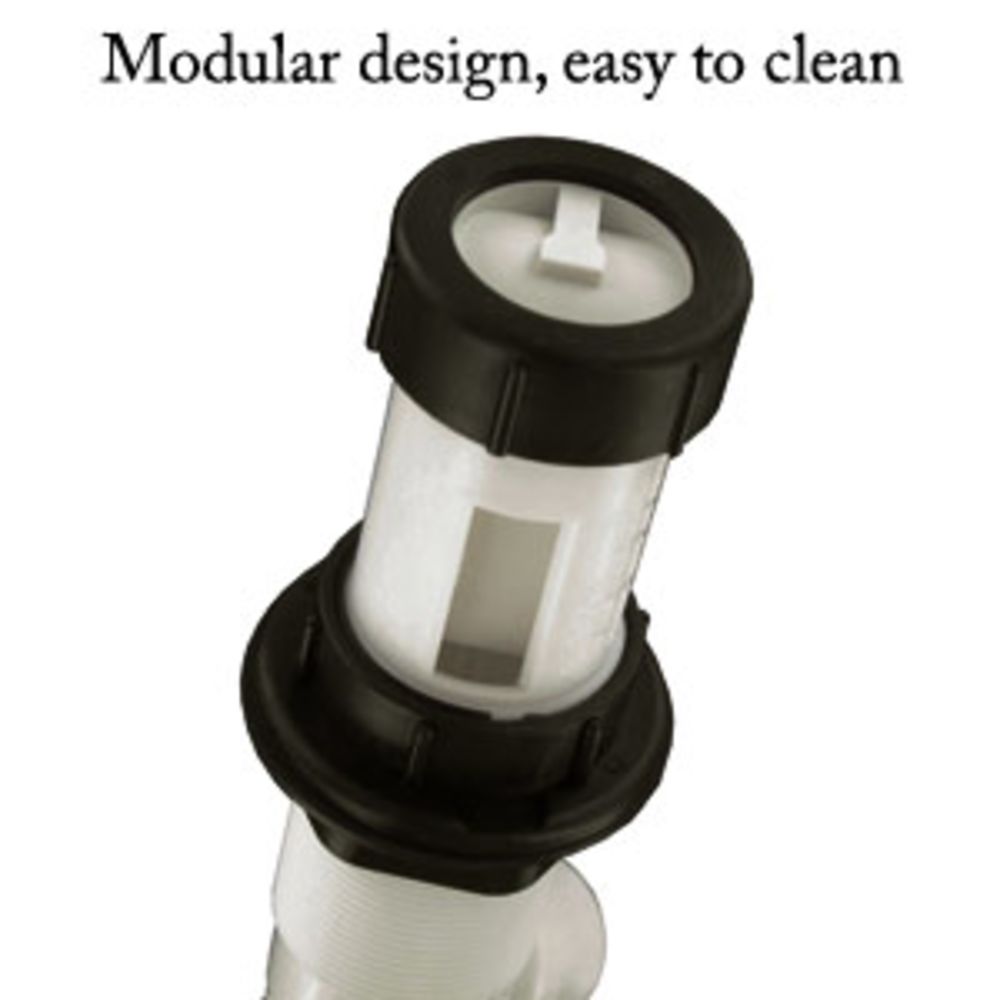

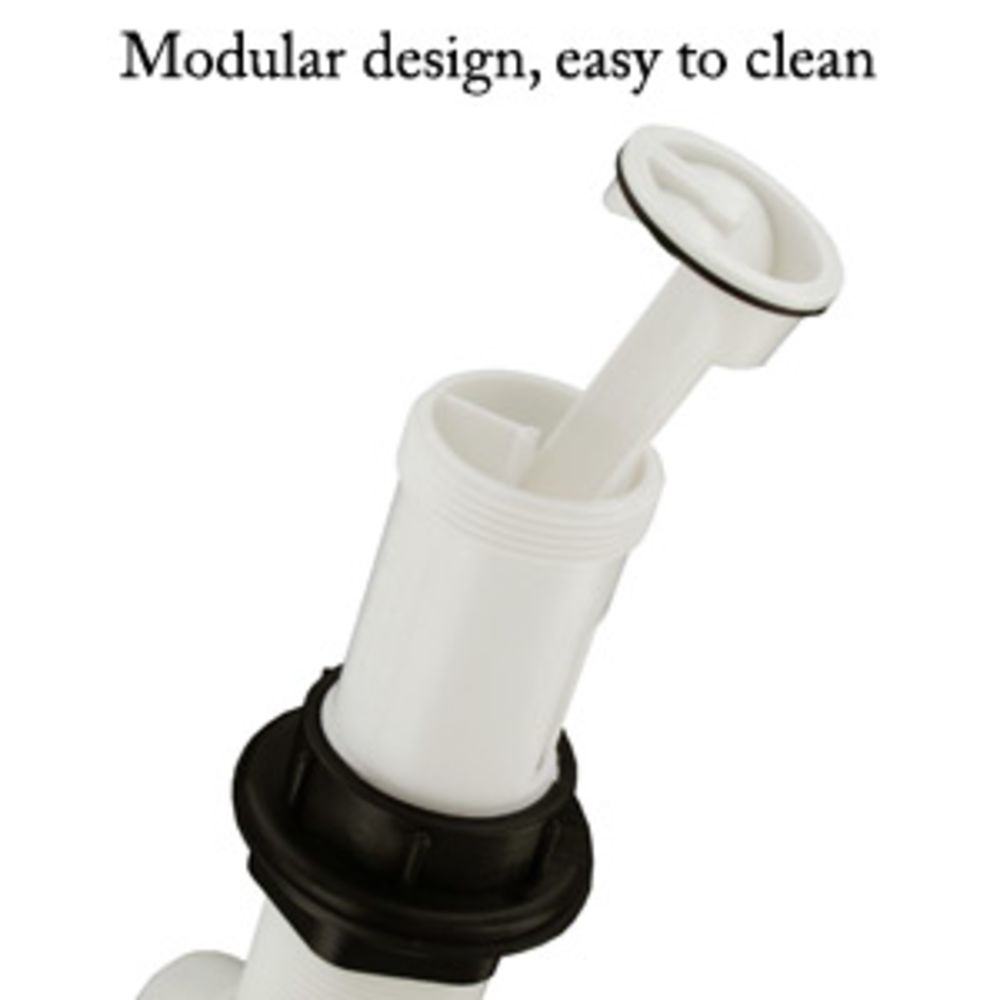

Retrofit existing dishwasher airgap, or install as new.  For single inlet installations, a PVC 1/2" plugs and vinyl end caps are available to seal off any unused ports. Maintenance can be quickly performed from the countertop, by simply removing decorative cover and top nut to dislodge debris.

  • KitchenAid Architect II Series air gap (including models KUDD01DPPA), KitchenAid Pro Line Series
  • Fisher & Paykel airgap including models DD-224C DCS, DD-224PH DCS
  • Sears Kenmore Elite double drawer air gap

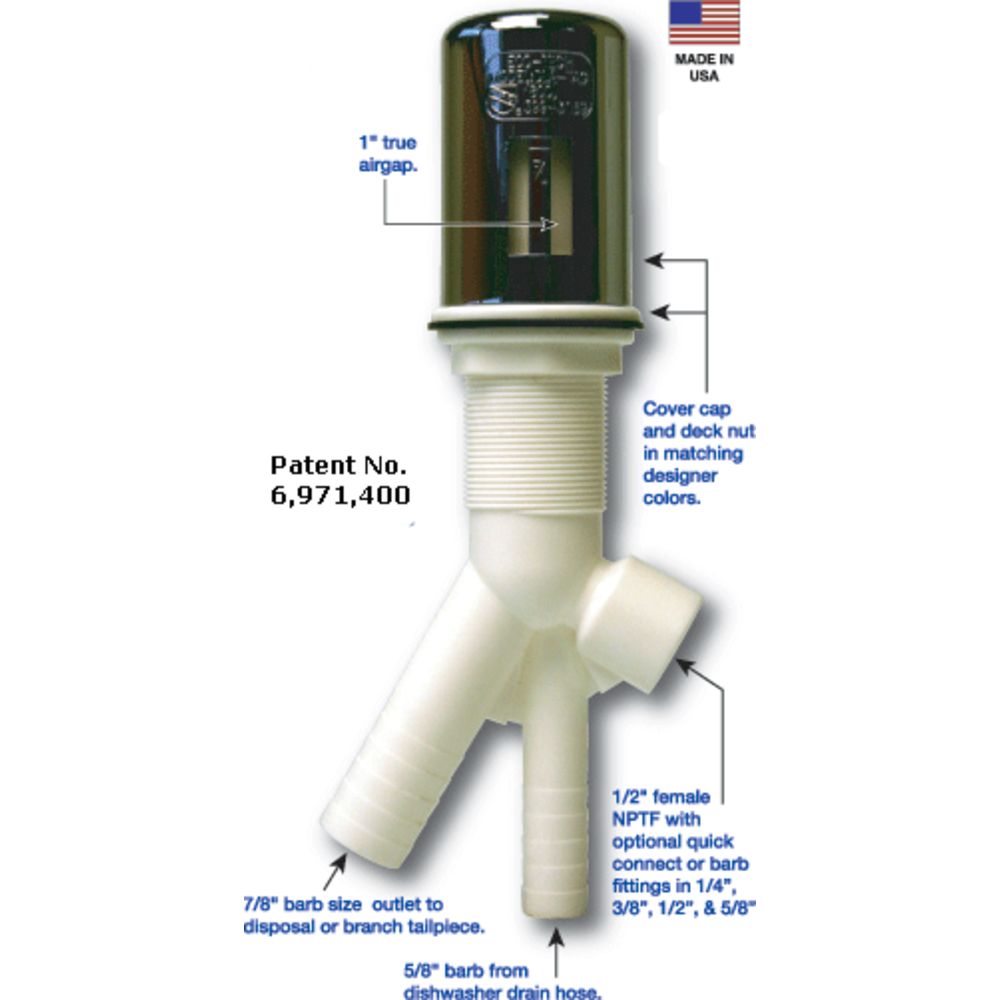

DLA-TAG Specifications:


  • Outlet: 7/8" Barb
  • Max Counter Thickness: 1.5"
  • Hole Size: 1-1/2" - 1-3/8"
  • Inlet #1: 5/8" Barb for dishwasher connection
  • Inlet #2: 1/2" female NPT accepts a variety of MIPT inlet adapter sizes that are available for various applications
  • Flow Rate:  up to 10 GPM

air gap


Note: Universal Air Gap Covers will not work with the Twin Inlet Air Gap.
Parts List & Installation Instructions

General
USA
Dimensions
1-1/2 inch(es) – 1-3/8 inch(es) "
Material
Certifications
Operating Conditions
10 gpm
