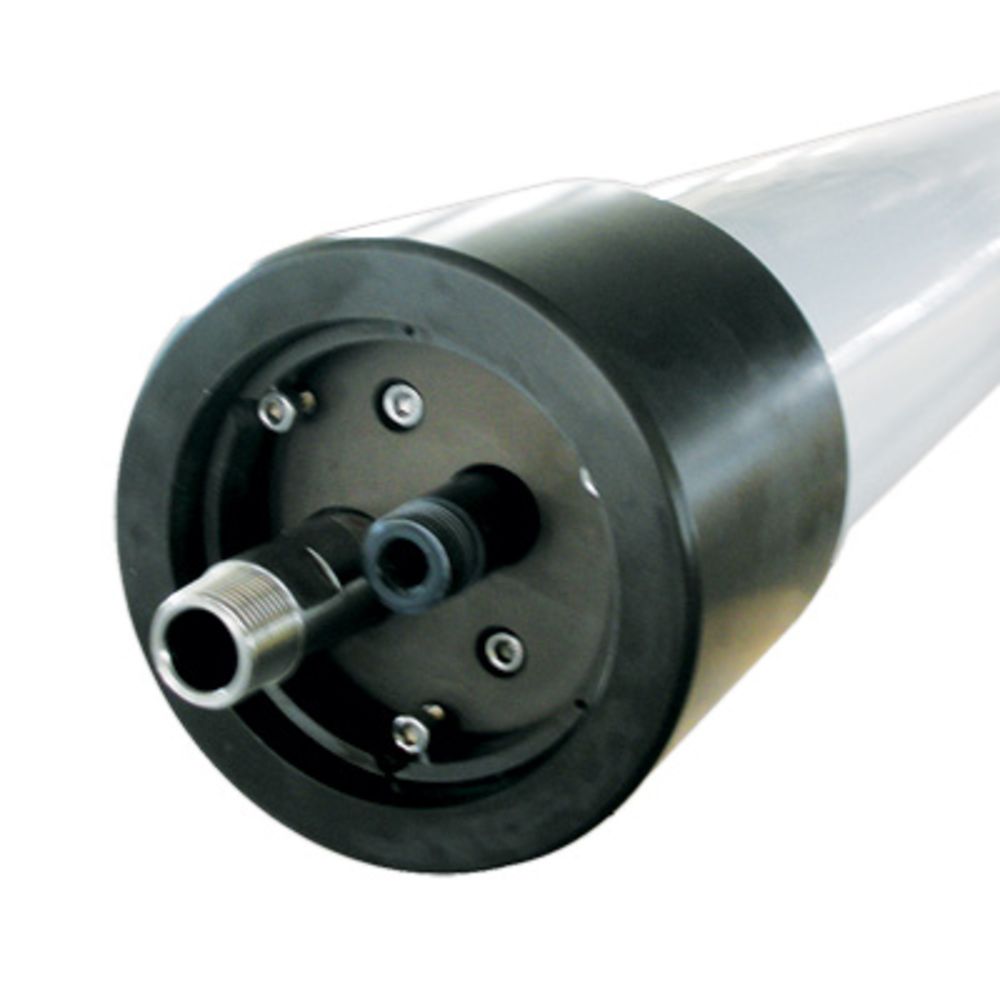

4 X 40 Fiberglass Membrane Housing 1000 psi

Free Shipping!
Part Number: MHFG-4040-3412-1000
In Stock, Ready to Ship!
MSRP: $1,543.08
Price: $1,102.20
Qty:


4" X 40" Fiberglass Membrane Housing Features:


ROPV 4" x 40" Fiberglass Membrane Housings are manufactured to very exacting specifications with only the highest quality materials.  These fiberglass pressure vessels accommodate standard 4" membrane filtration elements and operate at pressures up to 1000 psi.  Fiberglass housings are stronger than PVC and more corrosion resistant than stainless steel.

  • Easy installation and maintenance
  • Constructed for best chemical compatibility and corrosion resistance
  • End port design
  • Operating temperature range: 14° F to 150° F
  • Operating pressure: 1000 psi
  • Feed and concentrate port: 3/4" FNPT
  • Permeate port: 1/2" FNPT

Comparable to housings manufactured by Codeline, Protech, Purotech, A & M and HCTI.

4" x 40" Fiberglass Membrane Housing Spec Sheet
4" x 40" Fiberglass Membrane Housing User's Guide
Certifications
Certified to NSF/Ansi Standard 61 by Underwriters Laboratories
Dimensions
5.5 "
51.4 "
Materials
Fiberglass
ABS
EPDM
Operating Conditions
3-11
2-12
1000 psi
14-150 °F
Housing Specifications
3/4
4" x 40"
3/4"
1/2"
Locking Ring
