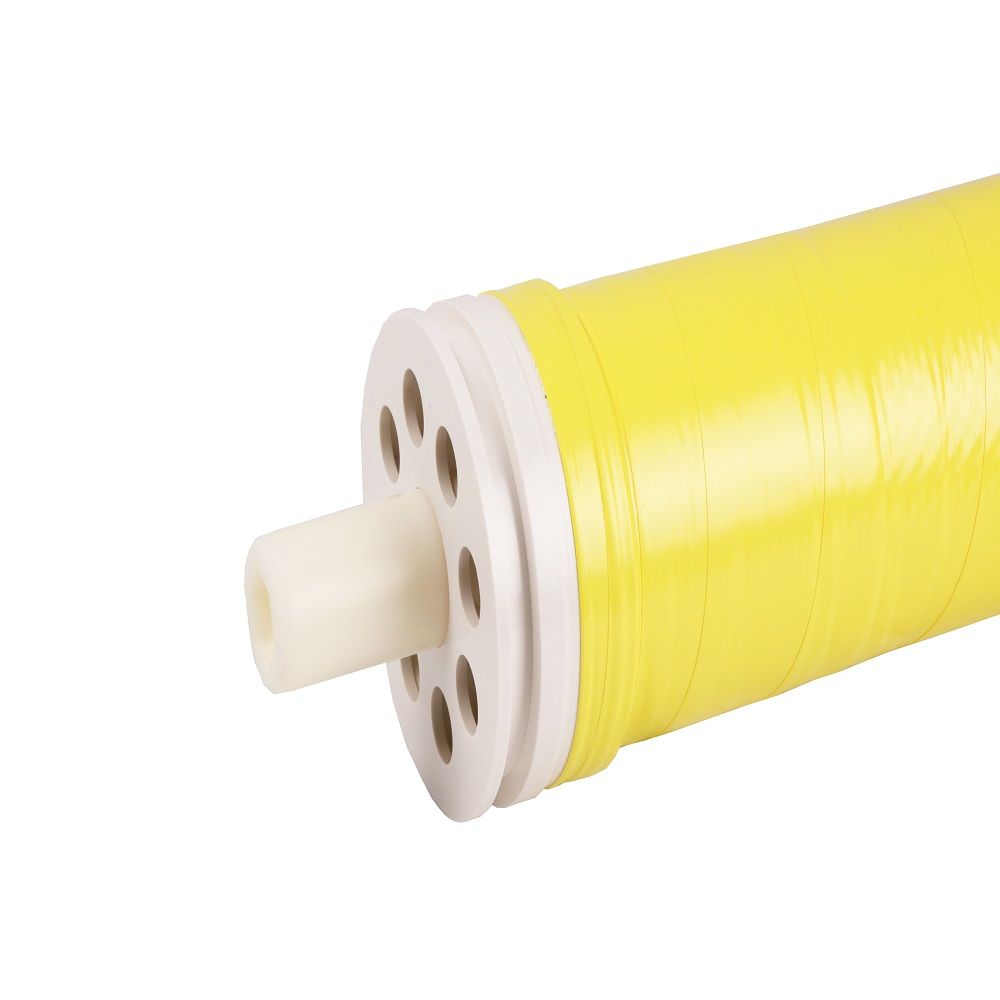

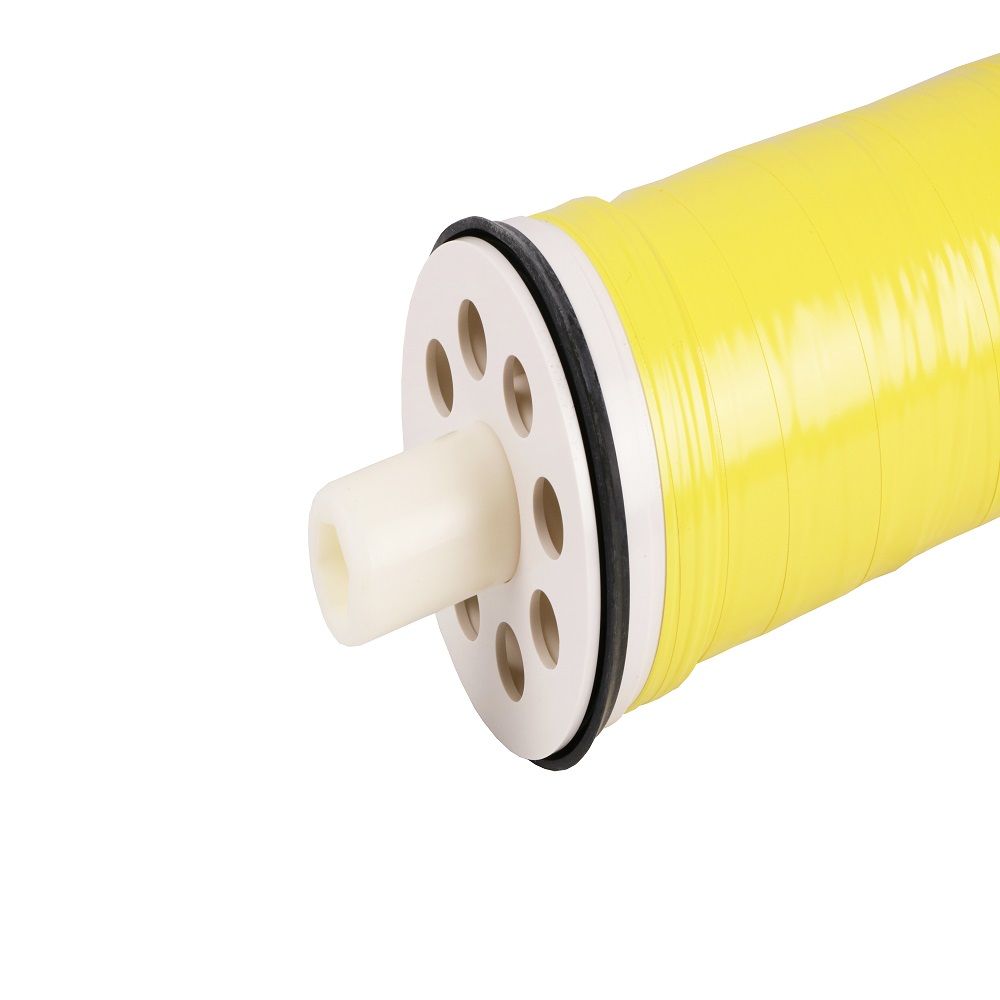

AXEON HF5-4021 1000 GPD RO Membrane Element

200393 AXEON Water
Mouse over to view larger image.
You might like:

Made in USA

Free Shipping!
Part Number: 200393
In Stock, Ready to Ship!
MSRP: $318.98
Price: $227.84
Qty:


AXEON HF5-4021 1000 GPD Membrane Element


AXEON HF5-4021 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements.  The HF5-4021 RO membrane elements are available in all standard commercial sizes, feature a protective
tape wound exterior, and are 100% vacuum integrity tested.  The polyamide thin-film used in the AXEON HF5 Series membranes is manufactured by a major US membrane film manufacturer.

  • Permeate Flow Rate: 1000 gallons per day
  • Membrane Type: Polyamide Thin-Film
  • Applied Pressure: 80 psi
  • Dimensions: 4" x 21"
  • Minimum Concentrate Flow Rate: 5:1
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Extra Low Energy, Brackish Water
  • Formerly known as RO UltraTec HF5-4021

AXEON HF5-4021 1000 gpd RO Membrane Element Spec Sheet

Certifications
Dimensions
21 "
3.95 "
Production
80 psi
1000 gpd
98 %
5:1
Membrane Specifications
Tape
Outside - In
0.75 "
Spiral Wound
Polyamide Thin-Film
Operating Conditions
113 °F
400 psi
10 psid
2-11
1-13
1 NTU
5 SDI
0 ppm
