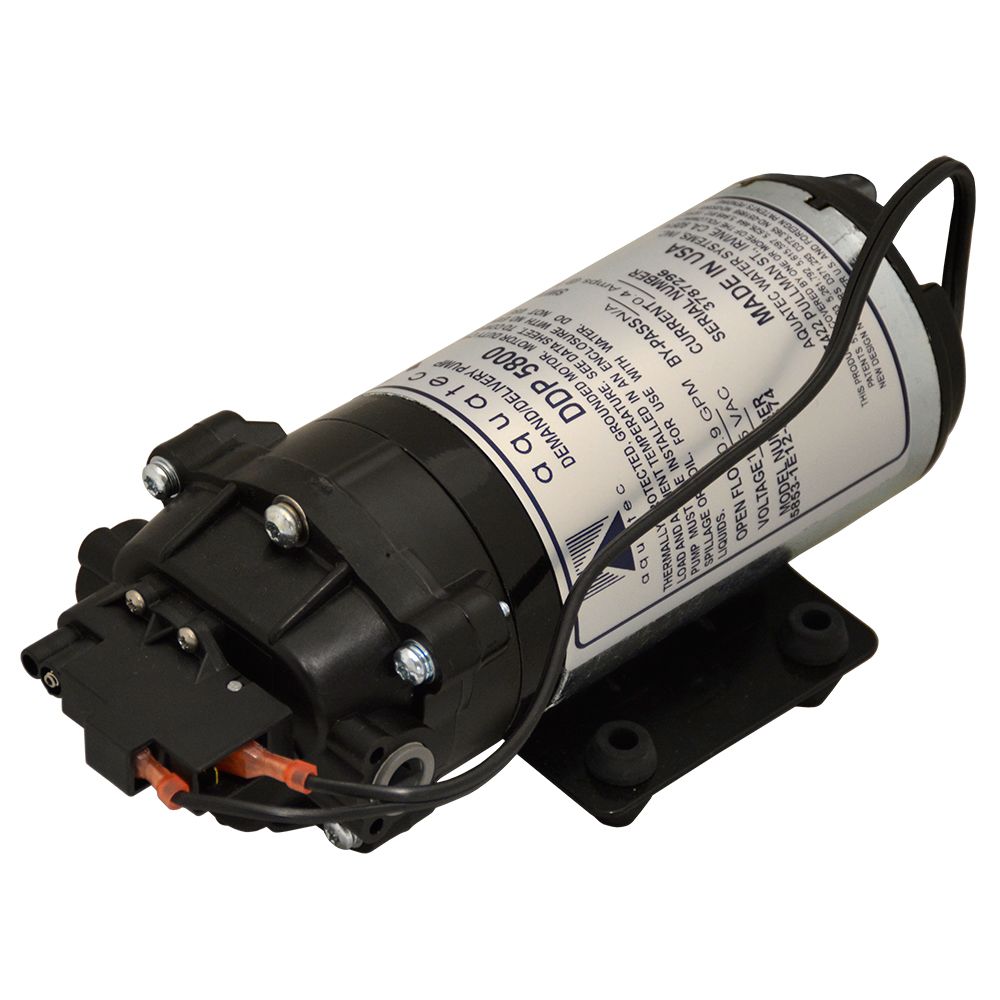

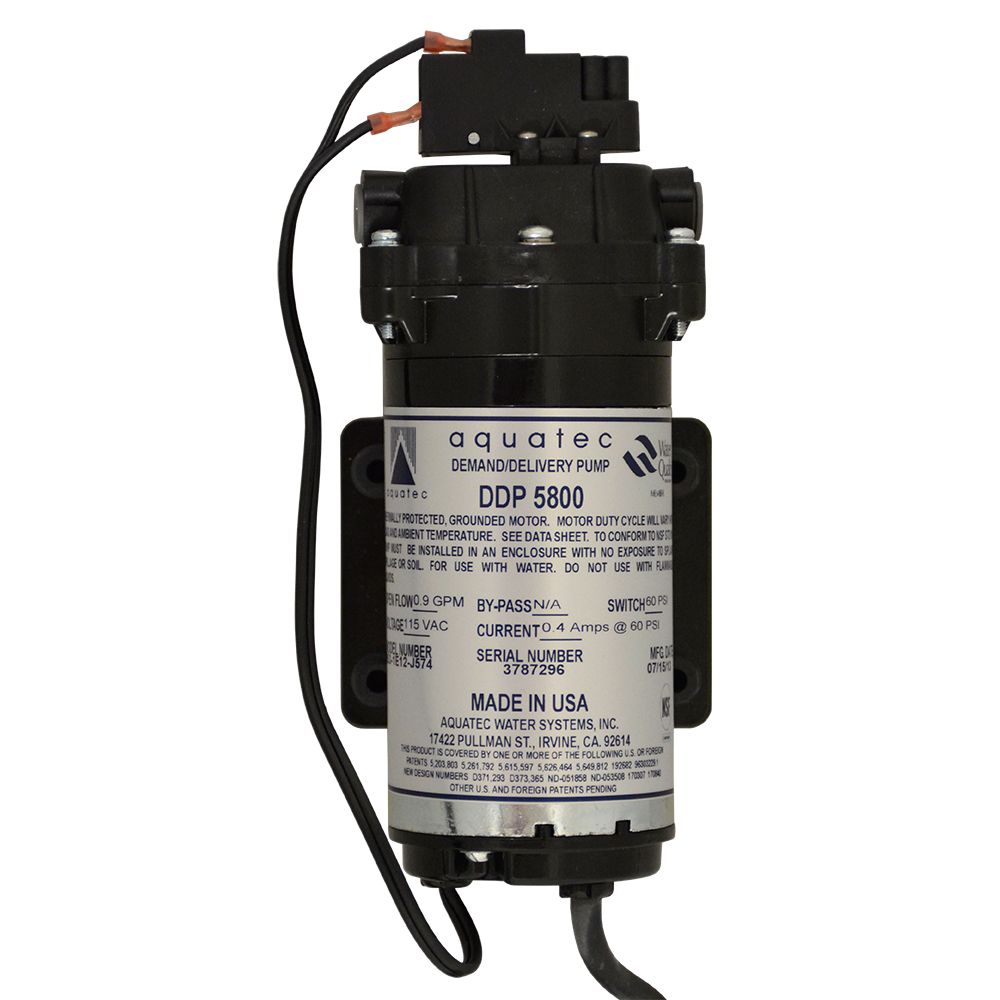

Aquatec 5853-1E12-J574 Pump .9 GPM, 3/8"JG, 115V

5853-1E12-J574 AquatecShow Picture 1Show Picture 2Show Picture 3
Mouse over to view larger image.
You might like:

NSF Certified  Made in USA

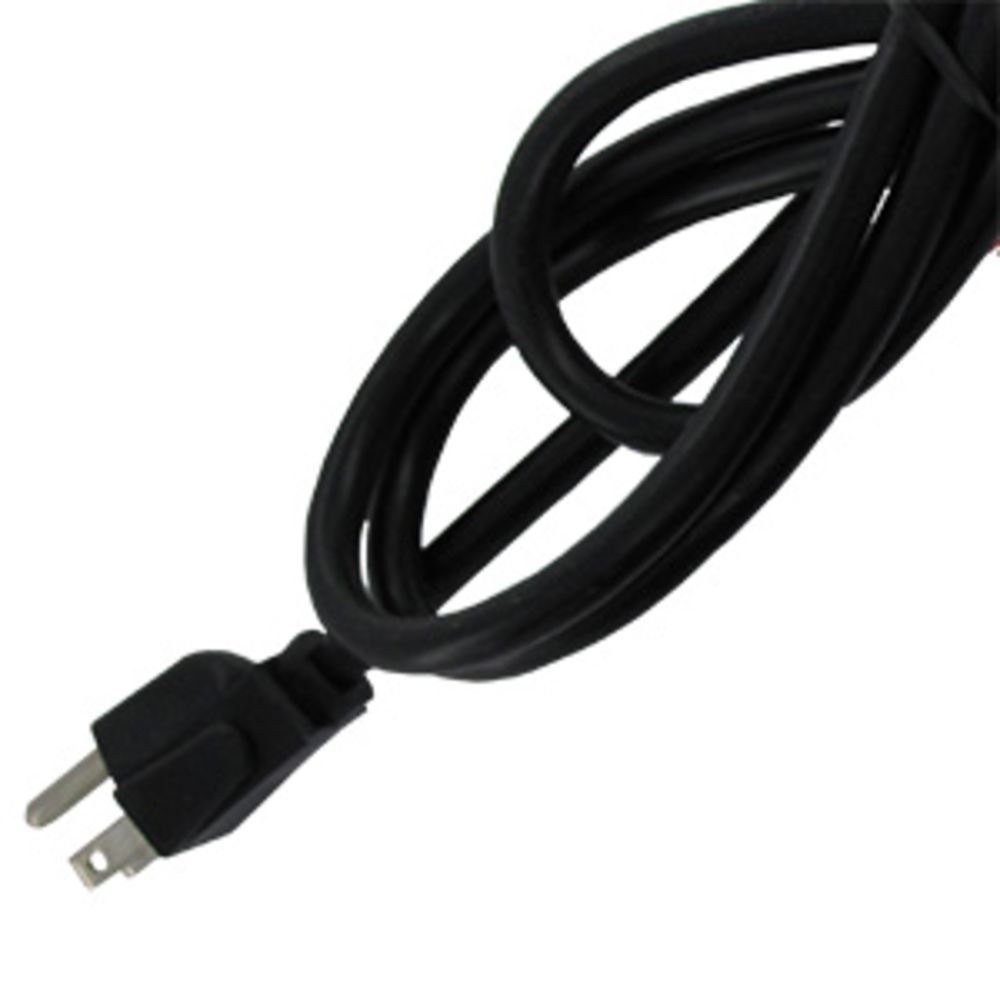

Power Cord Included

Demand/Delivery Pump

Free Shipping!
Model: 5800
Part Number: 5853-1E12-J574
In Stock, Ready to Ship!
MSRP: $179.00
Price: $124.97
Qty:

How do we compare?
$132.62 $7.65 more ea @ h2oPurificationSystems
  as of Sep 21, 2018

Aquatec 5800 Series Demand Pump 0.9 gpm, 60psi, 3/8"JG, 115v Cord Features:


The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

  • 3-chamber construction
  • Closed impervious diaphragm
  • Asymmetrical manifold
  • Integral switch or bypass
  • Highest structural integrity
  • Seven point clamping
  • Engineered composite plastics
  • Corrosion resistant metal
  • Multiple porting options

Aquatec 5853-1E12-J574 Demand Pump Benefits:


  • Adjustable switch and bypass settings
  • Self-priming, auto-purging
  • Near silent operation at lower flows
  • Highly efficient
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage



Aquatec 5853-1E12-J574 Demand Pump Technical Information
Aquatec 5800 Series Demand Pump Data
Certifcations
NSF 58
1 year
Dimensions
8.46 "
3.6 "
4 "
Materials
Polypropylene
EPDM
Santoprene
Operating Conditions
140 max °F
Pump Specifications
Demand
3/8" QC
3/8" QC
0.9 @ 60 psi psi
115VAC
0.4 @ 60 psi AMP
1200 RPM
Cord/Pressure Switch Wires
60 psi
Mouse over for more information.
