NS6D22008 Valved In-Line Hose Barb Coupling Insert 1/2 ID Barb

NS6D22008 Valved In-Line Hose Barb Coupling Insert 1/2 ID Barb
You might like:

Part Number: NS6D22008
In Stock, Ready to Ship!
Qty Price
$10.84 / single
$105.15 / bag of 10 (~$10.52 each)

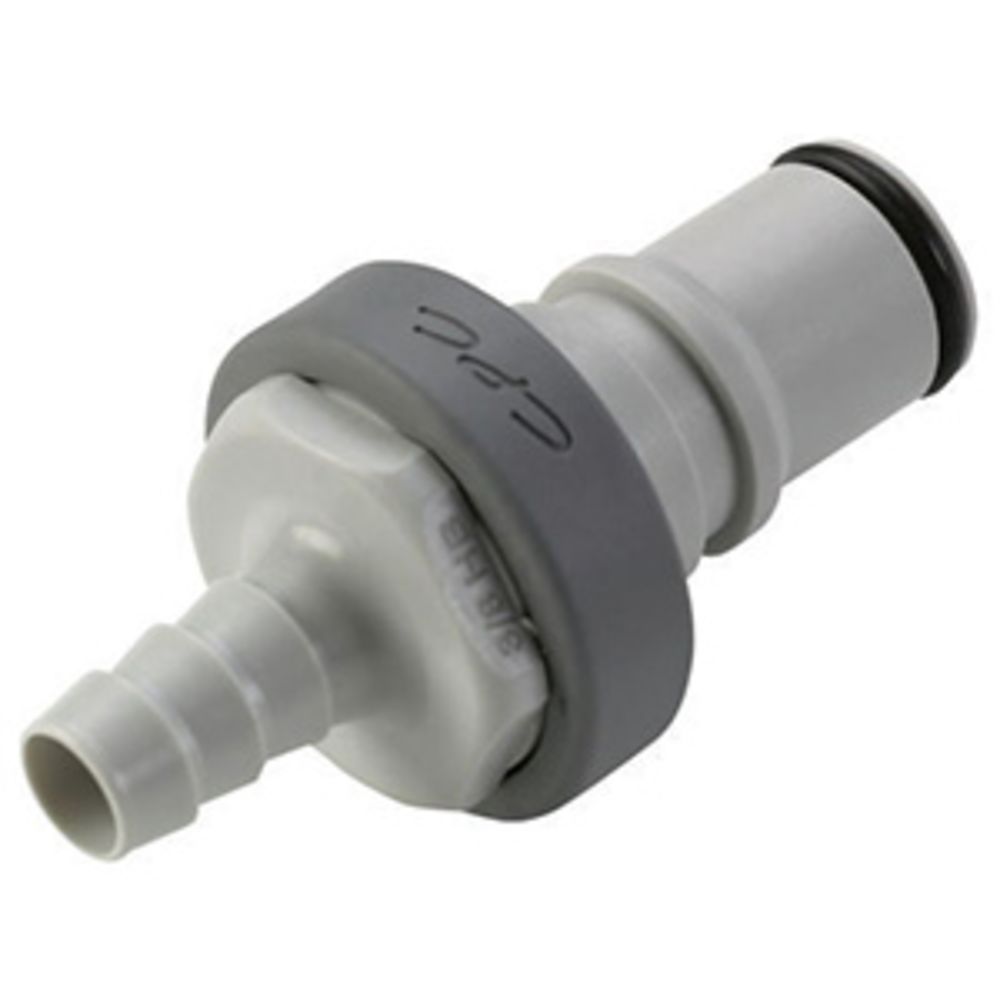

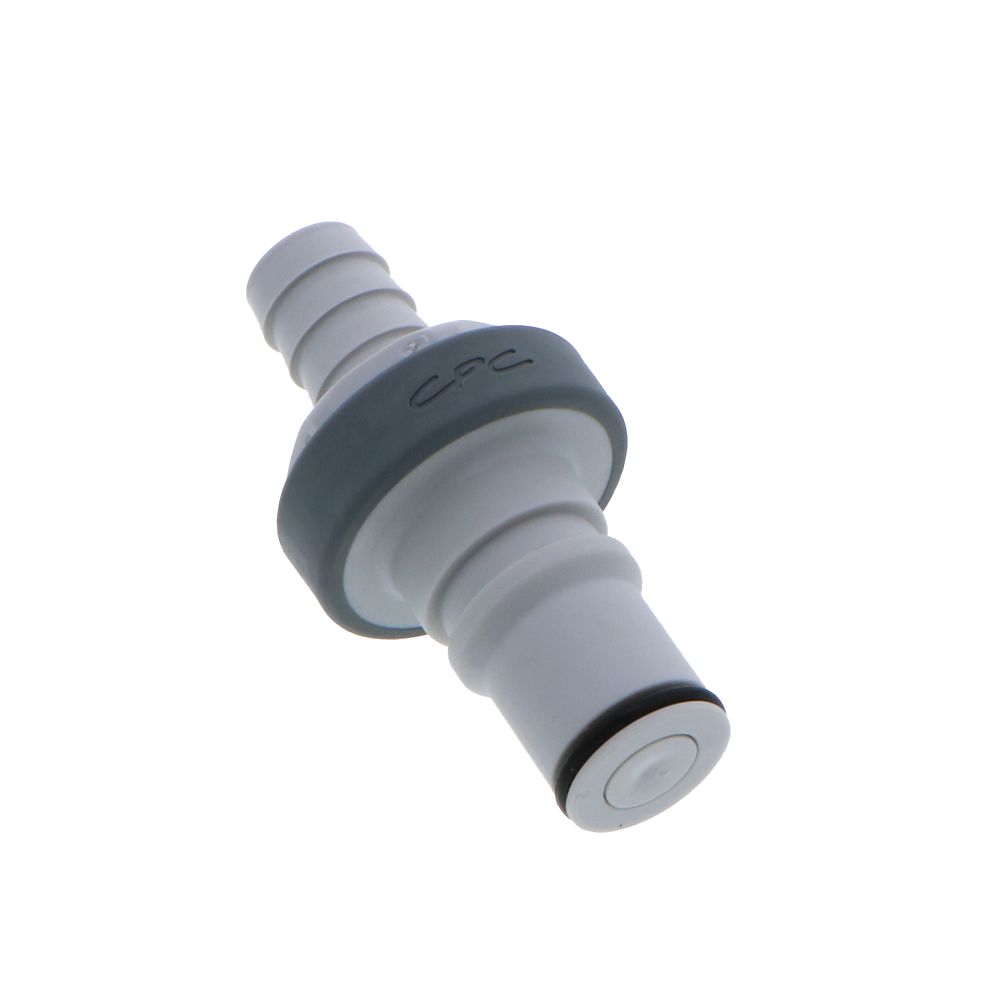

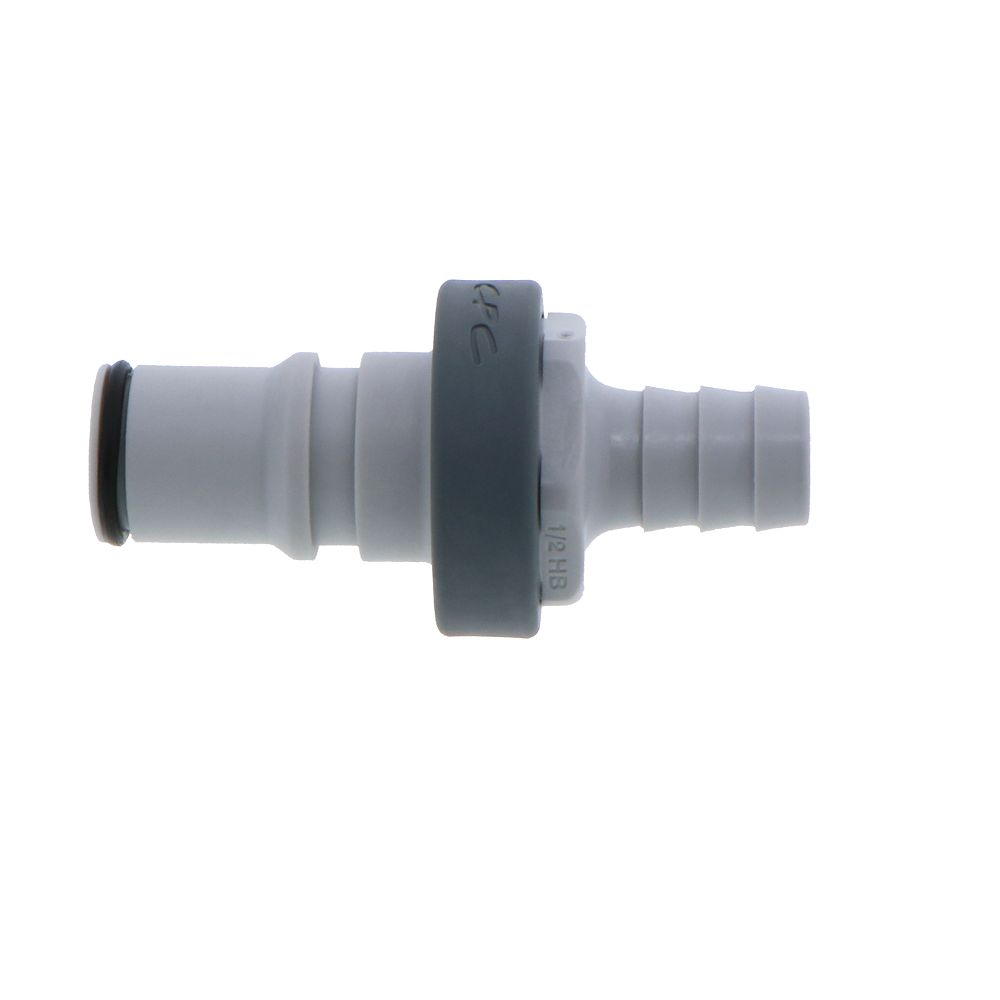

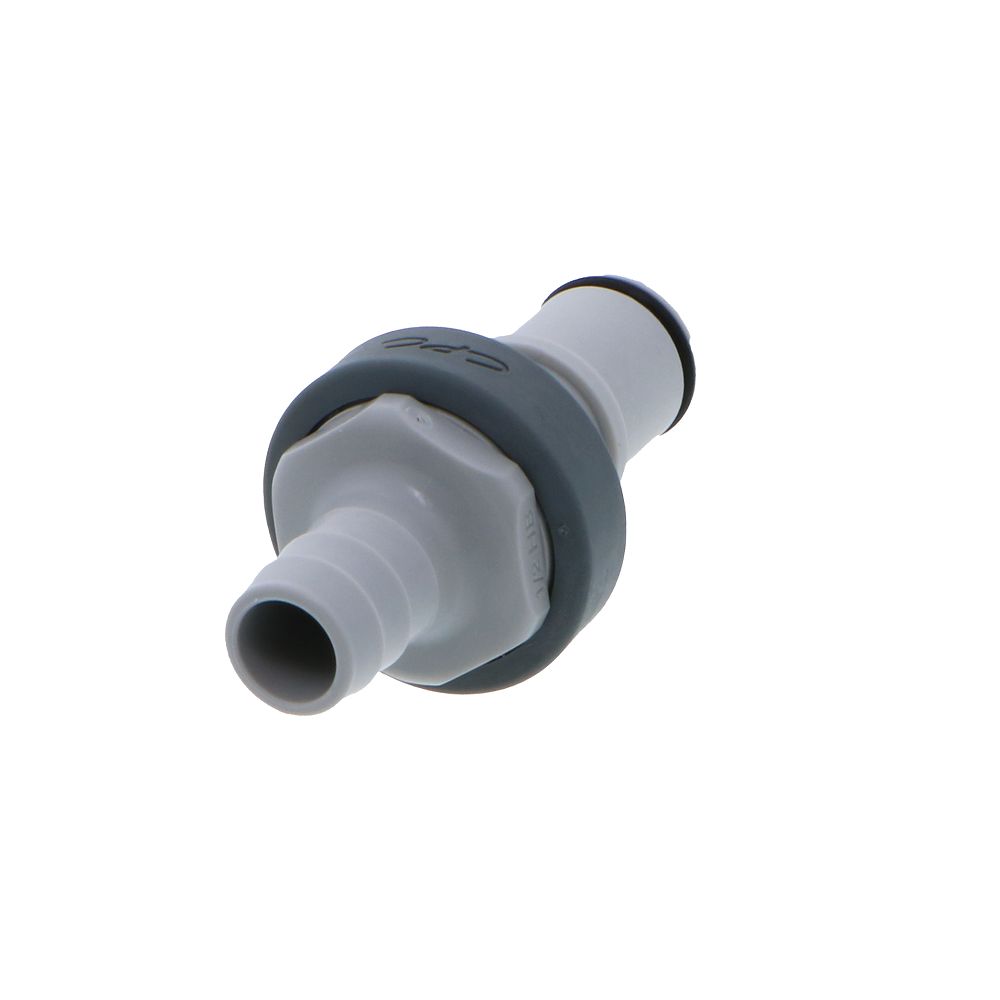

Colder NS6D22008 Valved In-Line Hose Barb Coupling Insert - 1/2 ID Barb


NS6 Series couplings were built on the Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS6 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS6 is also chemically resistant making it ideal for a diverse range of applications.

Colder NS6D22008 Valved In-Line Hose Barb Coupling Insert - 1/2 ID Barb Specifications:


  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: EPDM
  • Spillage: ~0.03 cc per disconnect, 0.42 cc per connect
  • Available in Bags of 10 units

Colder NS6 Series Non-Spill Couplings Specifications
