E-Treat Salt-Free Water Conditioning System

E-Treat Salt Free Water Conditioning System
Mouse over to view larger image.
You might like:

Freight Only
With E-Treat® water conditioning systems, there’s no salt, no backwash, no scale, no chlorine and no electricity!

12 gallons per minute for whole house treatment

Part Number: ETREATWCS
MSRP: $2,093.00
Price: $1,495.00
Qty:


E-Treat Salt-Free Water Conditioning System:


Disclaimer: If you are using well water, please contact our technical support staff to help you determine if this system is right for your application.

E-Treat® water conditioning systems with anti-scale media are designed to provide whole house water conditioning for up to five years, based on hardness and chlorine levels before the anti-scale media must be replaced. We recommend replacement of the activated carbon every two years, for optimum performance. E-Treat® water conditioning systems are typically installed where water enters the house for whole house water treatment.

How it works:

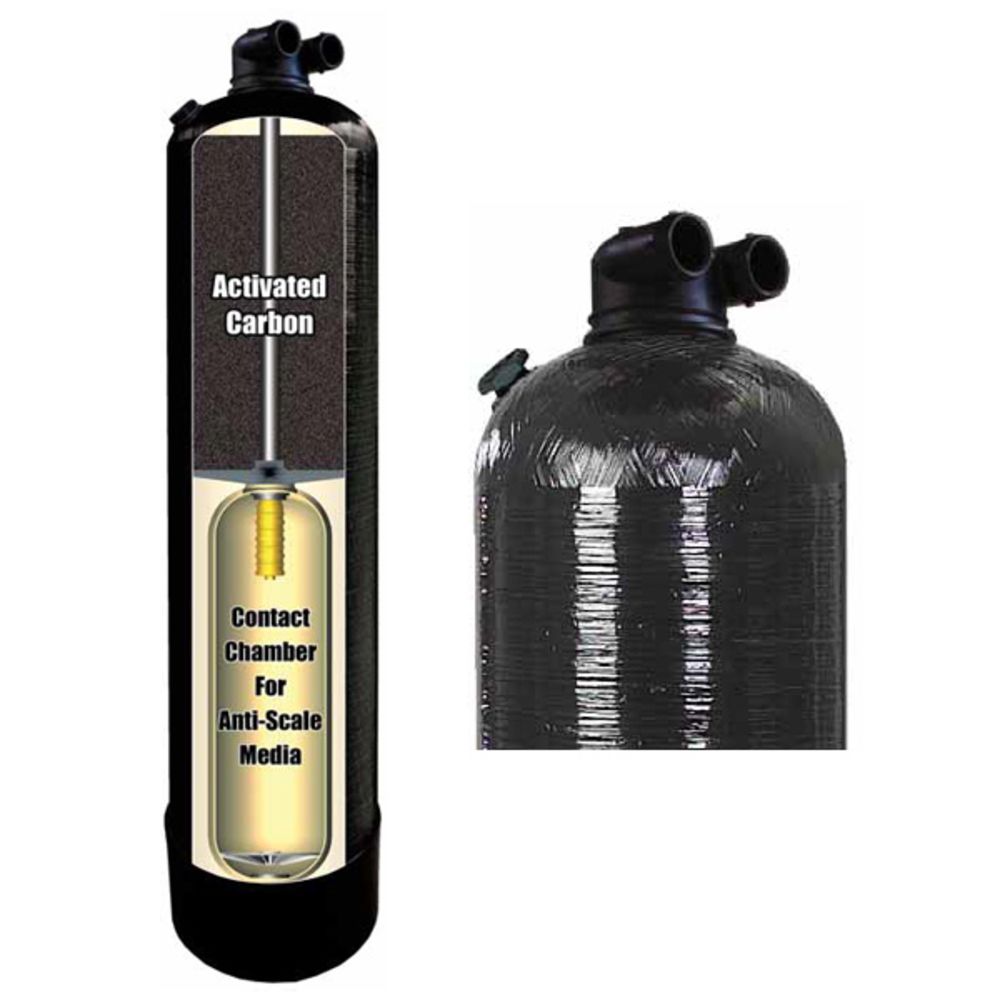

Step #1 (Main Tank)
Water enters the system and flows down through a two cubic foot bed of coconut shell activated carbon. This initial water treatment process improves water quality by  reducing bad tastes, foul odors, chlorine and organic substances through adsorption.


Step #2 (Inner Tank & Contact Chamber)
During this process, water flows upward through the inner tank where treatment for  scale prevention is provided using our highly effective, anti-scale media. This unique material transforms calcium ions into Calcium crystals, which are stable and cannot attach to pipes, surfaces, hardware or heat exchanger components. The crystals are so small they are easily rinsed away by the water flow!

Go to Clack Parts and Accessories to purchase the optional Bypass Valve and Clack Valve attachments for PVC, Lead-Free Brass Sweat, 1" Male NPT, or Brass Sharkbite Quick Connect Fittings.

As shown below, SCALE is the incrustation of calcium carbonate (CaCO3) that forms within piping.



How does T.A.C. (Template Assisted Crystallization) Media Prevent Scale Buildup?


STEP 1 - The T.A.C. MEDIA releases a TEMPLATE
STEP 2 - The TEMPLATE attracts and captures the scale contaminants (Ca, Mg & MCO3) by turning them into crystals that stick to the TEMPLATE'S surface
STEP 3 - The TEMPLATE carries the scale harmlessly through the piping


Disclaimer: Watts® is a registered trademark of Watts Water Technologies, Inc, which is not affiliated or otherwise associated with Fresh Water Systems, Inc. or this site. Fresh Water Systems, Inc acknowledges and confirms that it has not been granted any license or authority from Watts Water Technologies, Inc to use the mark, and further confirms that any and all use of the mark on this site is for identification and descriptive purposes only and such use is not intended to, does not, and shall not be deemed to imply any association or affiliation between Watts Water Technologies, Inc. and Fresh Water Systems, Inc. of any nature whatsoever.

Dimensions
General
Media
Anti-scale media is NSF Standard 61 Certified
Water Chemistry & Limitations
25 (maximum) gpg
6-9 (effective range)
12 gpm
20 psi
125 psi
40 °F
120 °F
Mouse over for more information.
