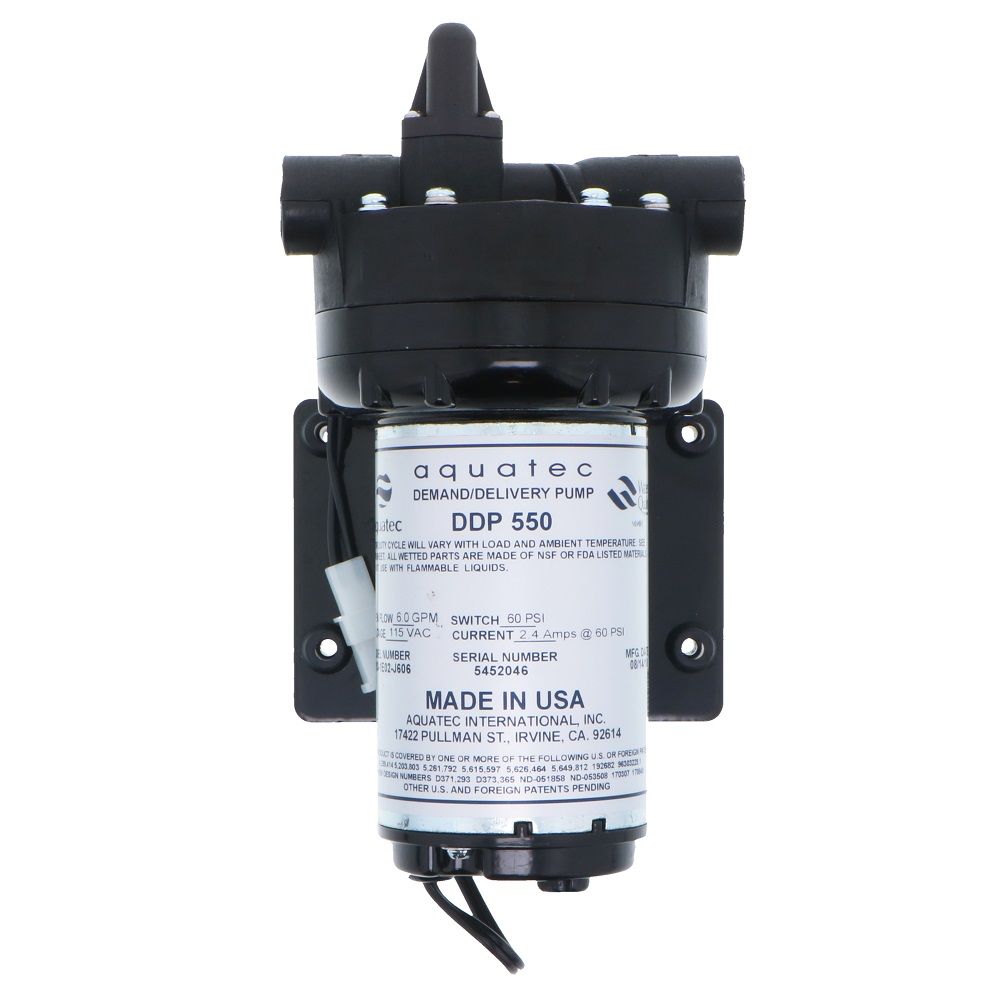

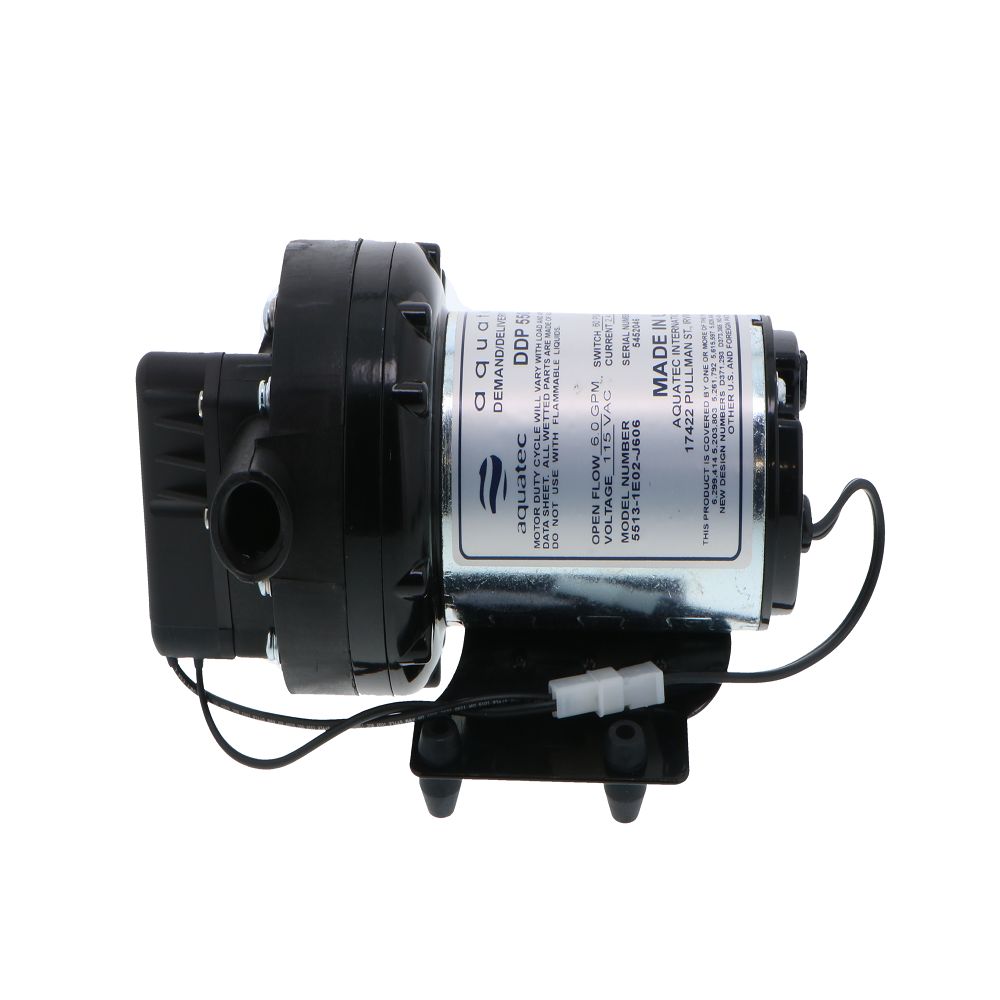

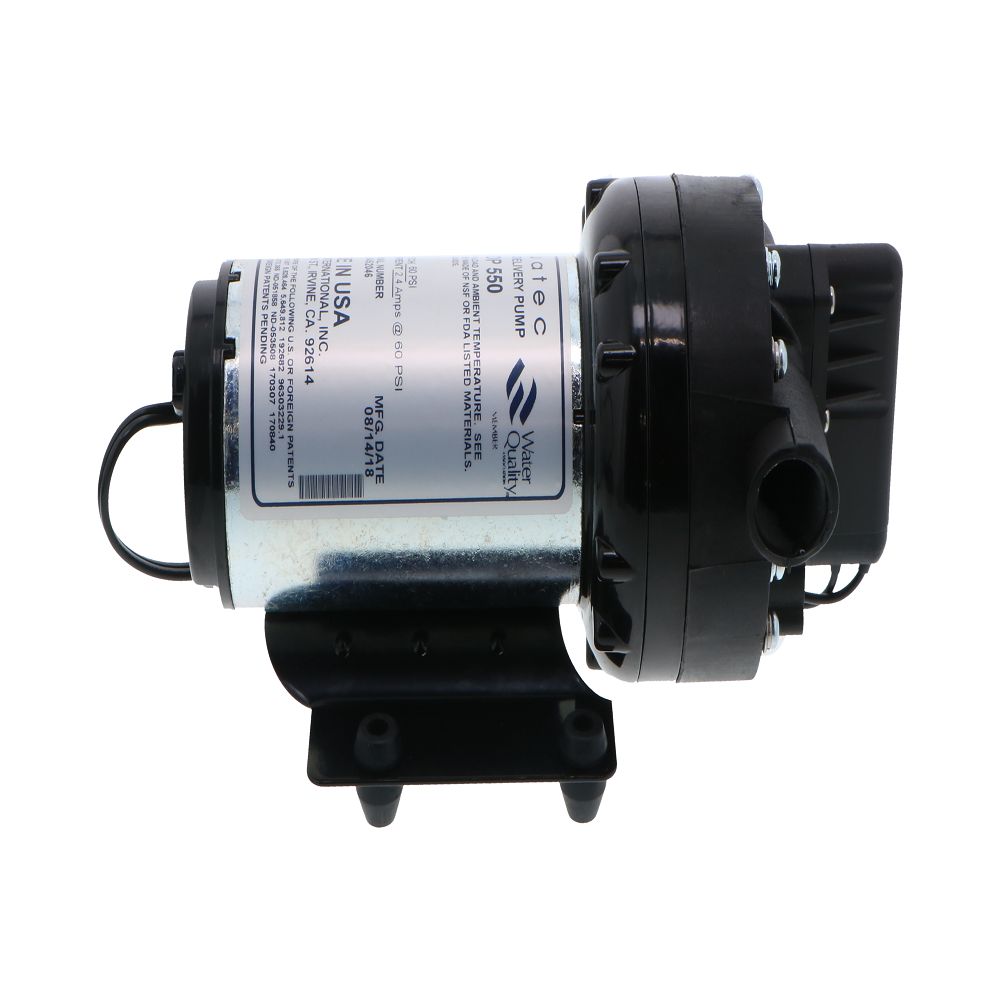

Aquatec 5513-1E01-J606 Pump 6.0 gpm, 1/2 FPT, 115VAC

5513-1E01-J606 Aquatec5513-1E12-J606Show Picture 1Show Picture 2Show Picture 3
Mouse over to view larger image.
You might like:

NSF Certified  Made in USA

Free Shipping!
Part Number: 5513-1E01-J606
Alt. Part Number: 5513-1E12-J606
In Stock, Ready to Ship!
MSRP: $236.25
Price: $168.75
Qty:

How do we compare?
$261.76 $93.01 more ea @ IsopureWater
  as of Sep 19, 2018
$171.95 $3.20 more ea @ BigBrandWater
  as of Sep 19, 2018
$174.88 $6.13 more ea @ h2oPurificationSystems
  as of Sep 19, 2018

Aquatec 5513-1E01-J606 Pump 6.0 gpm, 1/2 FPT, 115VAC


The Aquatec 5513-1E01-J606 Pump is used to either draw water from a holding tank and pressurize it, or boost pressure from a low pressure source. Although designed to operate intermittently, many 550 versions can run continuously for several hours at a time.

These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure. This pump features a 5-chamber construction.

NSF Certified.
This pump has been independently tested and certified against NSF/ANSI Standard 58.

Made in the USA.
The Aquatec 5513-1E01-J606 has been proudly manufactured in the USA.

Aquatec 5513-1E01-J606 Demand Pump Benefits:
  • Self-priming
  • Unparalleled performance, efficiency
  • Whisper quiet at lower flows
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage
  • Chemically resistant versions

Aquatec 5513-1E01-J606 Demand Pump Features:
  • Closed impervious diaphragm
  • Independent symmetrical valves
  • Highest structural integrity
  • Engineered composite plastics
  • Corrosion resistant metal
  • Pressure switch and transducer options
  • Ten point clamping


Specification Sheets & Manuals


Certifcations
NSF 58
13 Months from Date of Manufacture
Made in USA
Dimensions
9.05 "
4.58 "
4.84 "
Materials
Polypropylene
EPDM
Santoprene
Operating Conditions
60 psi
Max 140 °F
Self prime up to 11 ft
Pump Specifications
Demand
1/2" FPT
1/2" FPT
6.0 gpm
115VAC
0.75 (0 psi) - 1.75 ( AMP
2400 RPM
