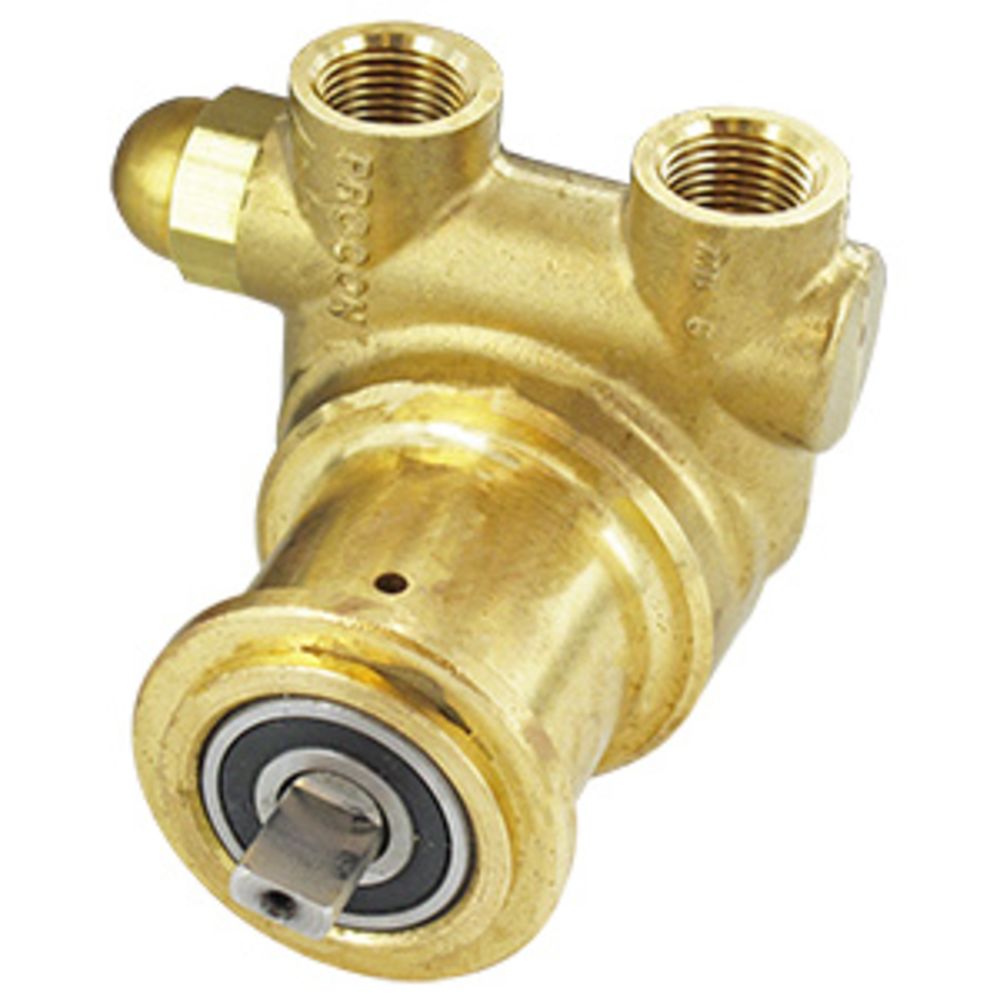

Procon Pump Brass w/ .188" Double Flat Drive 35 GPH 3/8" NPT - 50 PSI Relief Valve

Procon Pump Brass w/ .188-inch Double Flat Drive 35 GPH 3/8-inch NPT - 50 PSI Relief ValveShow Picture 1Show Picture 2
Mouse over to view larger image.

Series 2 Rotary Vane Pump - Clamp on

Part Number: 102A035F12GD050
This item is no longer available. We have replaced it with:
NSF Procon Pump Brass w/ .188" Double Flat Drive 35 GPH 3/8" NPT - 50 PSI Relief Valve

Procon Series 2 Pump Brass w/ .188" Double Flat Drive 35 GPH 3/8" NPT - 50 PSI Relief Valve Features:


Procon 102A035F12GD050 rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass with a .188" double flat drive. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 35 gallons per hour. The seal configuration for the 102A035F12GD050 uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The pressure relief valve for this pump is set for 50 PSI. The 102A035F12GD050 pump is designed to be directly connected to the motor with a stainless steel clamp.

  • Capacity: 35 GPH
  • Nominal Speed: 1725 RPMs
  • Relief Valve: 50 PSI
  • Rotation: Clockwise
  • Weight: 2.5 lbs
  • Port Size: 3/8" NPT Inlet and Outlet
  • Double Flat Drive: .188" 35 GPH

Procon Pump Owner's Manual
Procon Model Number Ordering Guide
Procon Series 2 Pump Specifications
Procon Series 2 Pump Line Drawings
Also Compatible With:
Rotary Vane Pumps Procon 112A035F12GD050
Certifications
N/A
Dimensions
Brass - 3/8" NPT
Materials
Brass
Brass
Nitrile (Buna-N)/ Type 21
Operating Conditions
50 psi
50 in2
Clockwise
35 - Gallons Per Hour
Specifications
