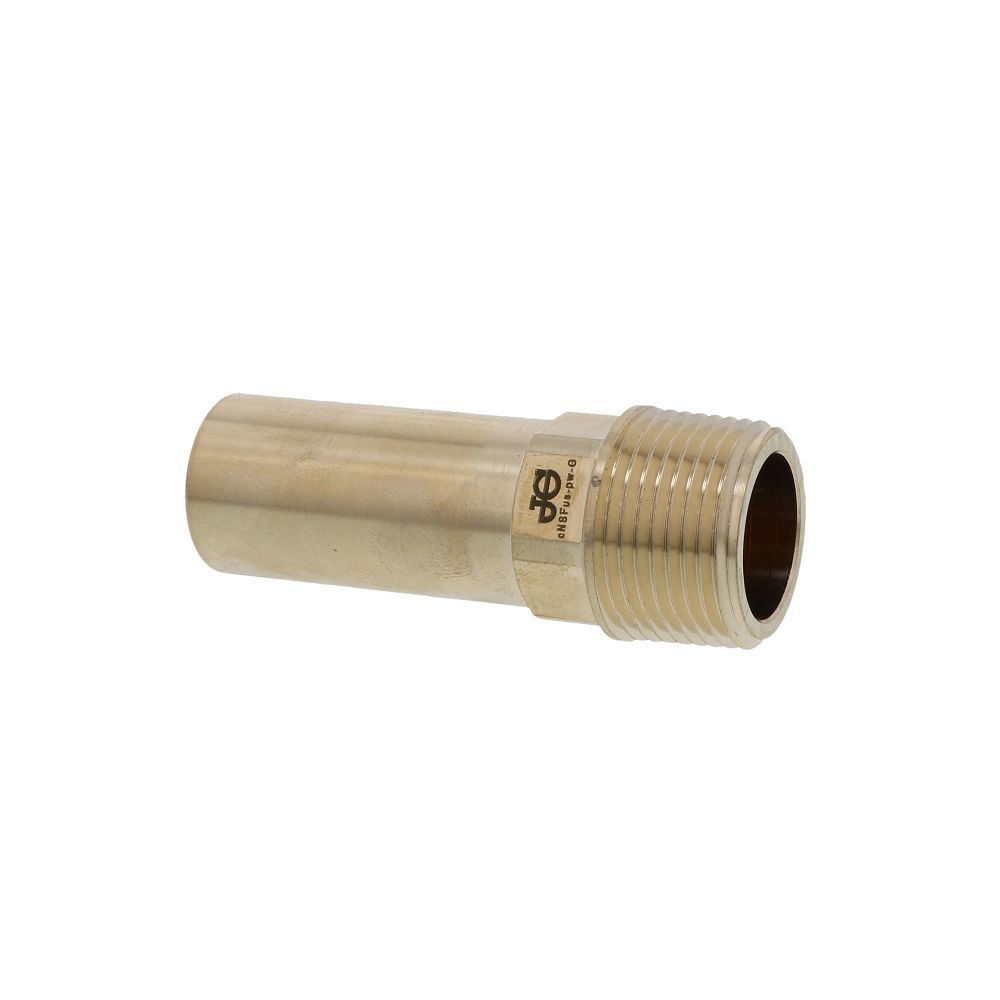

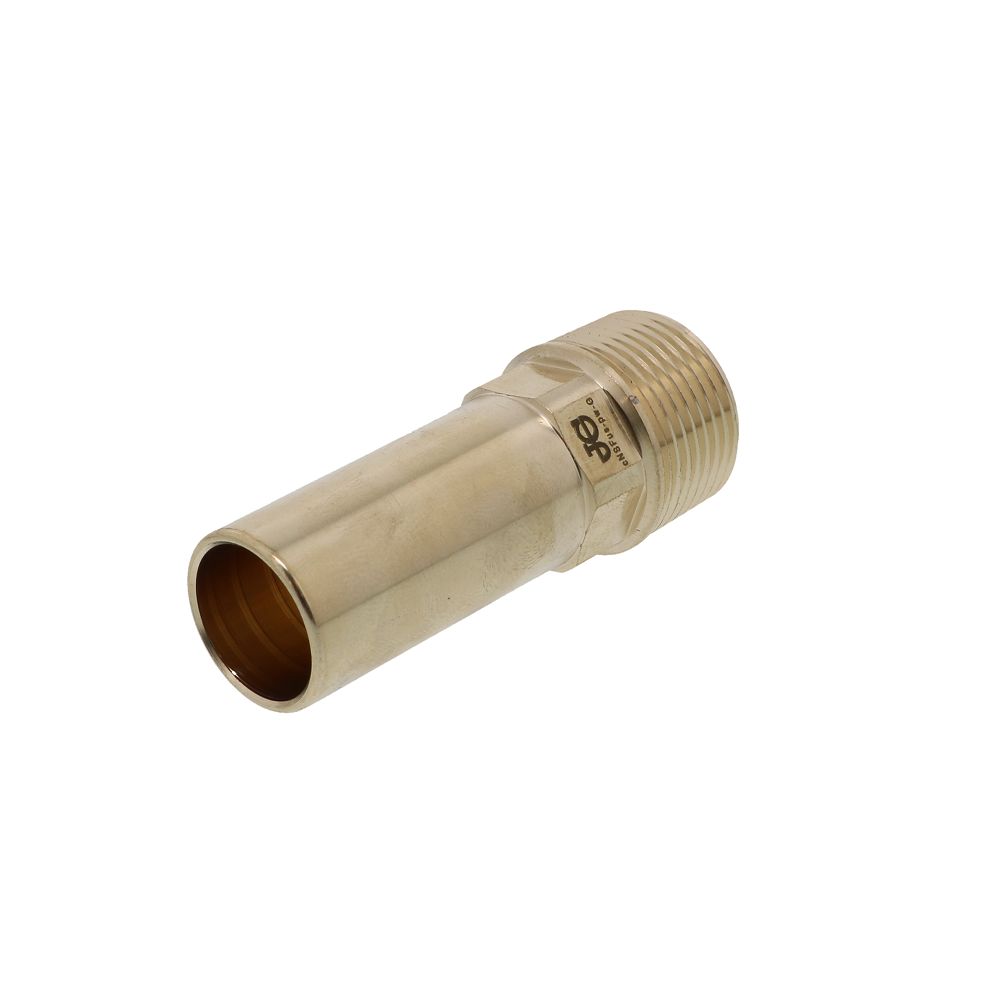

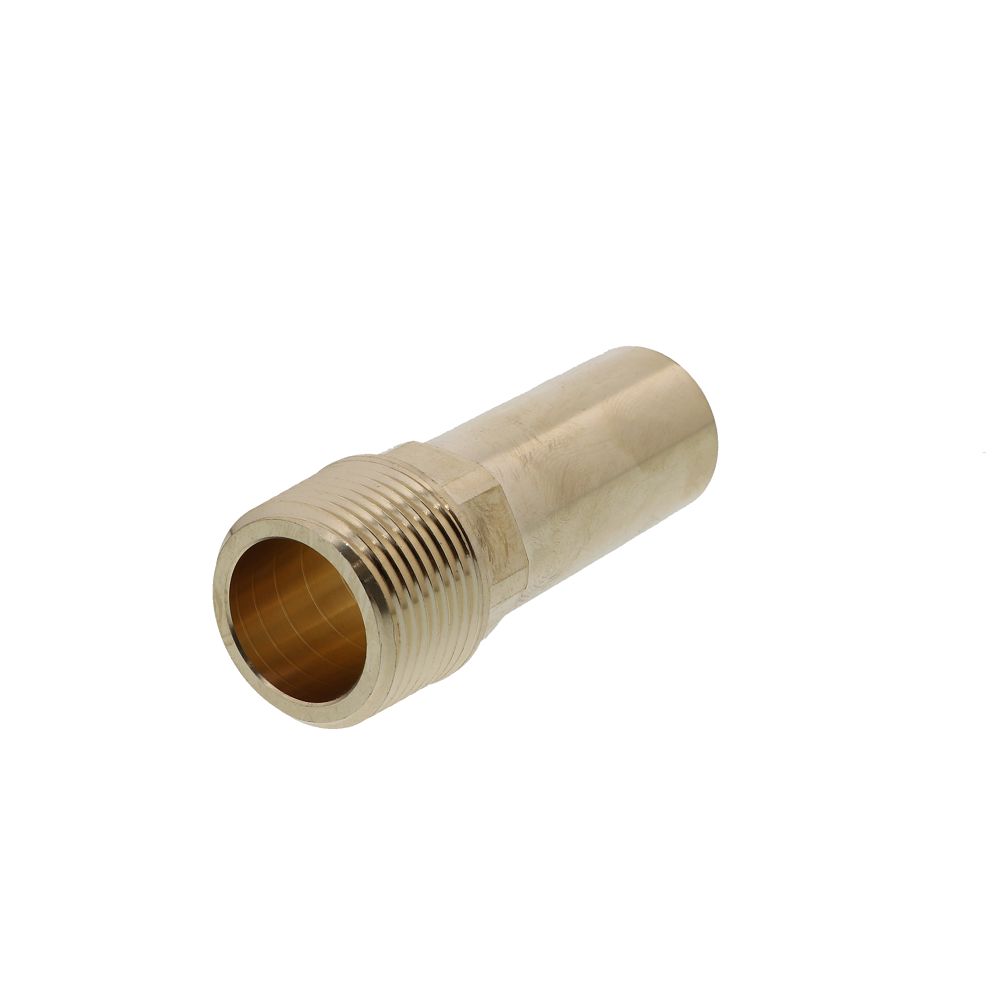

John Guest Lead-Free Brass Male Stem Adapter NPT - 3/4 CTS x 3/4 NPT

John Guest MWI052826LF John Guest Lead Free Brass Male Stem Adapter NPT - 3/4 CTS x 3/4 NPT
Mouse over to view larger image.
You might like:

NSF Certified  AB1953 Compliant  Made in USA

TWIST. LOCK. FIT. EVERY TIME.

Part Number: MWI052826LF
In Stock, Ready to Ship!
Qty Price
$12.49 / single
$61.20 / bag of 5 (~$12.24 each)
$599.52 / bag of 50 (~$11.99 each)

John Guest Lead-Free Brass Male Stem Adapter NPT - 3/4" CTS x 3/4" MPT


JG ProLock™ fittings use a collet with stainless steel teeth that grips the pipe when fully inserted and an O-ring to provide a permanent, leak-proof seal. When twisted into place, the locking cap locks the pipe in place and creates an audible click, ensuring maximum security. No tools, soldering, clamps or glue are ever required.

  • Full flow
  • Lead-free
  • UV resistant
  • Code-approved
  • 25-years warranty
  • Approved for behind-wall use
  • For use with copper, PEX and CPVC
  • Twist-to-lock technology provides added security
  • Suitable for hot & cold potable water and hydronic heating applications

    John Guest ProLock Instructional Video



    John Guest ProLock Ascriptions


    Tubing Standards:
    • Copper - ASTM B 88
    • PEX - ASTM F876 / CSA B137.5
    • CPVC - ASTM D2846 / CSA B137.6
    Warranty:
    • 25 Year Warranty against defects
       in materials and manufacturing.
    Code Compliance:
    • Uniform Plumbing Code (UPC)
    • International Plumbing Code (IPC)
    • National Plubing Code of Canada
    • ASSE1061-2011
    • ASTM F877-2011
    • NSF Standard 61

    ApplicationMax Working PressureMax Working Temperature
    Water
    Water
    Water
    160 PSI
    100 PSI
    80  PSI
    73° F
    180° F
    200° F


    Specifications
    • Material: Lead-free Brass
    • Bag Quantity: 5
    • Box Quantity: 50
    • Connections: 3/4" CTS x 3/4" MPT
    • Type: Male Stem Adapter


    Certifications
    USA
    25 Years
    Dimensions
    5
    50
    3/4" CTS x 3/4" MPT
    3/4 x 3/4 "
    0.1763696 lbs
    2.76 "
    Materials
    Brass
    Operating Conditions
    200 °F
    160 psi at 73°F, 100 psi at 180°F, 80 psi at 200°F
    0 - 160 psi
    Plumbing
    Types of Fittings
    Male Stem Adapter
