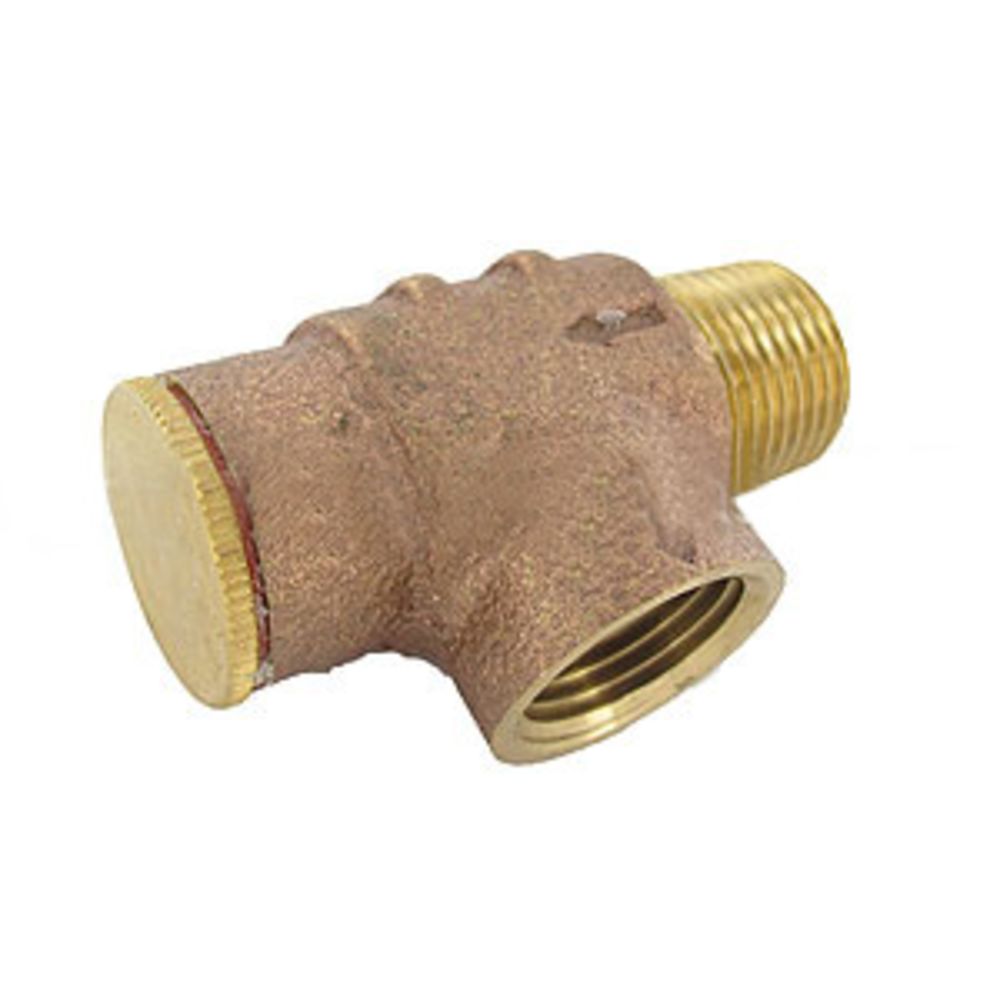

Pressure Relief Valve 1/2" MIPT

Pressure Relief Valve 1/2-inch MIPT

Part Number: PRV05
This item is no longer available. We have replaced it with:
Pressure Relief Valve 75 psi Lead-Free 1/2" MIPT

Brass Pressure Relief Valve 1/2" MIPT Features:


The Pressure Relief Valve prevents a pressure build-up from occurring in systems with water, air, or oil.
  • Brass Construction
  • 1/2" MIPT Run
  • 1/2" FIPT Branch
  • Preset to 75 psi
  • Adjustable +/- 25 pounds

Instructions: To adjust the pressure relief valve, unscrew the dust cap. Then you will find a slot for a screw driver. One full turn clockwise will increase the PSI by 25psi. One full turn counter-clockwise will reduce the PSI by 25psi. Once the adjustment is completed, replace the dust cap.
Certifications
Dimensions
General
Pressure Relief Valve
Material
Brass
Operating Condition
75 psi
