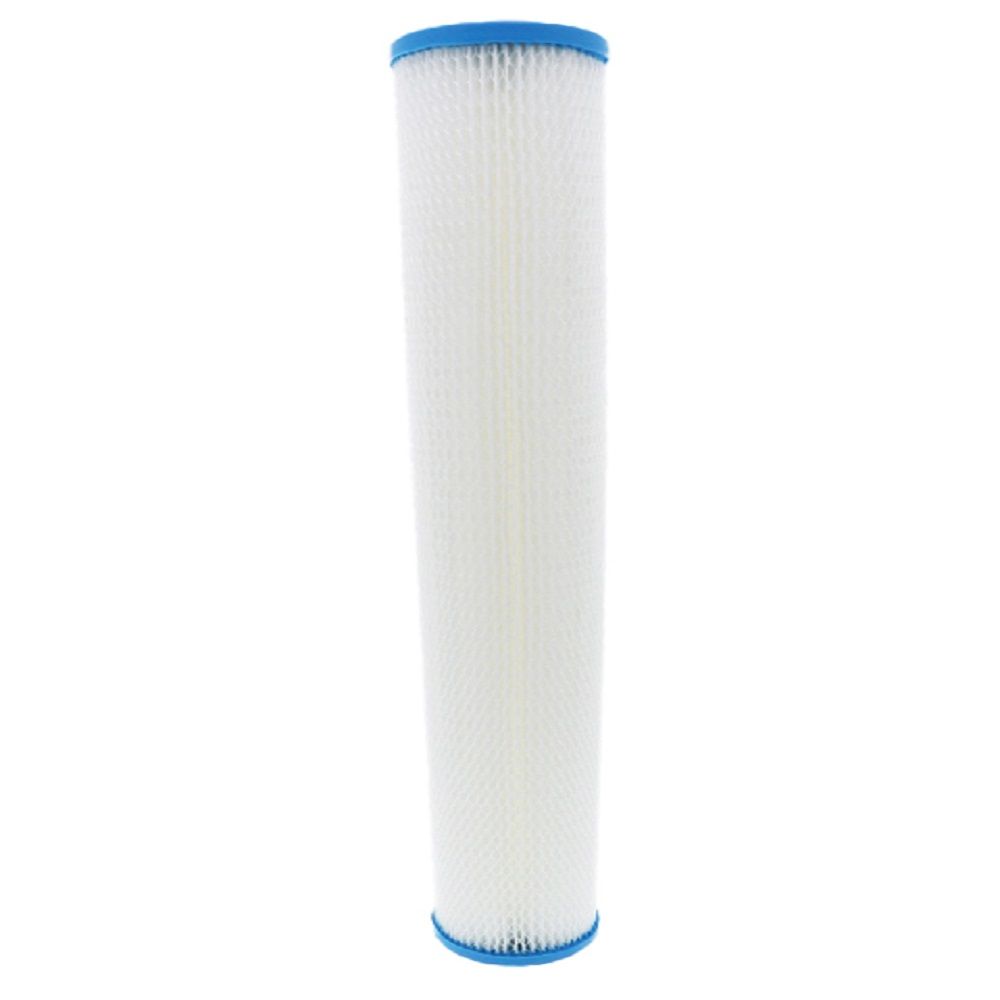

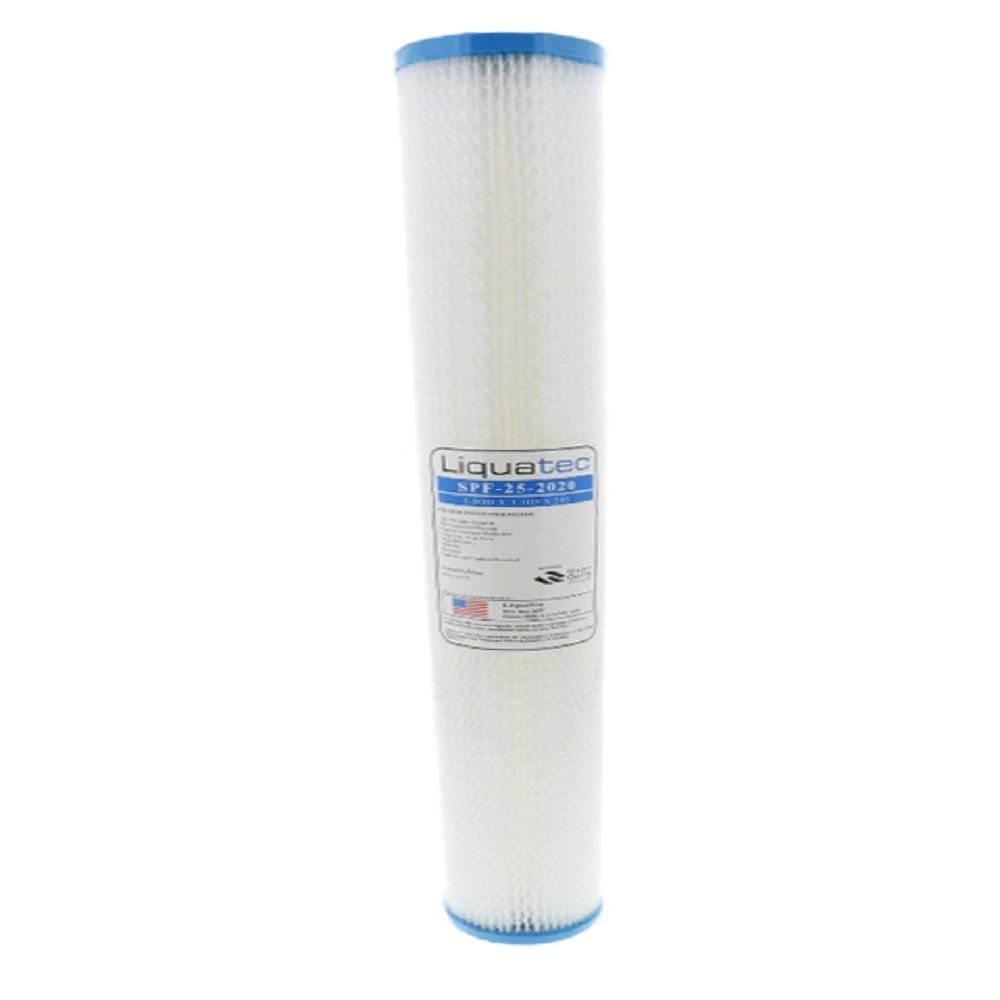

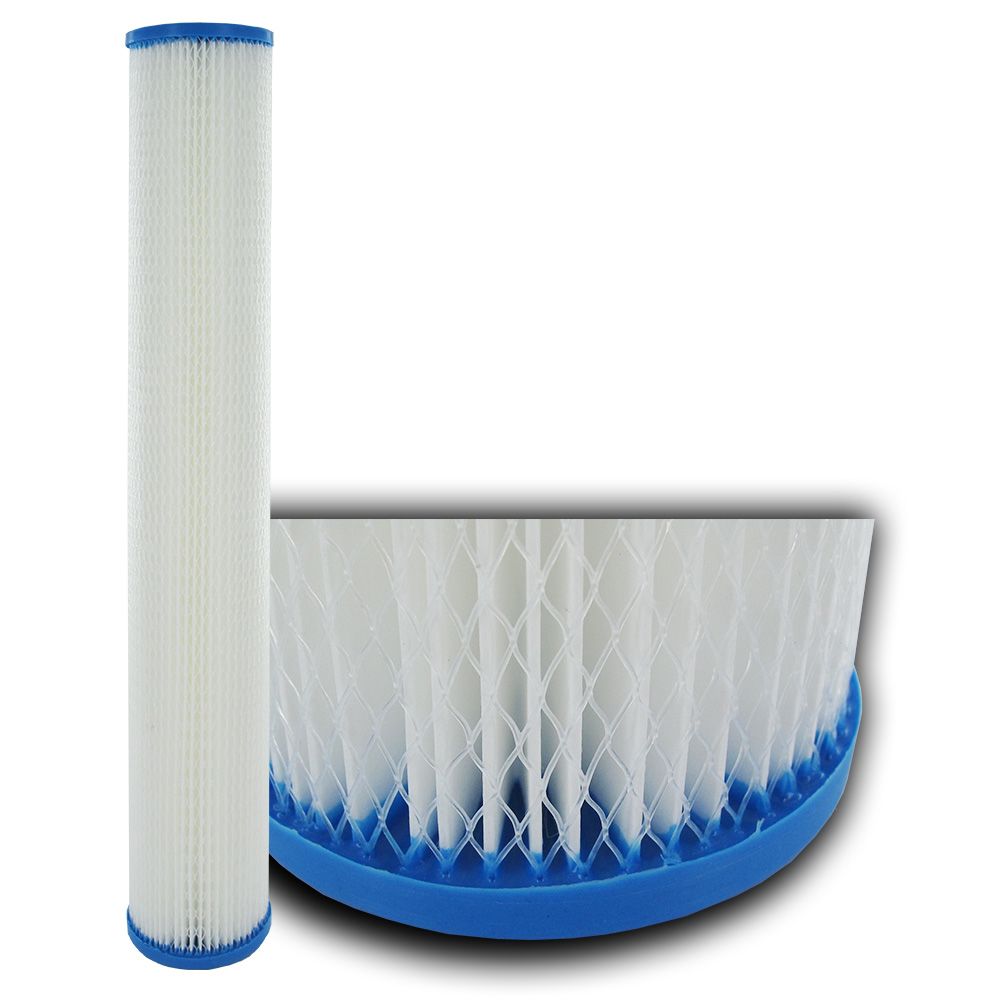

20" x 2-3/4" Liquatec SPF Pleated - 20 mic

SPF-25-2020 Liquatec
Mouse over to view larger image.

Part Number: SPF-25-2020
In Stock, Ready to Ship!
MSRP: $15.32
Regular Price: $11.95
On Sale For: $9.99
Qty:


The Liquatec SPF Series Polyester Pleated filter cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the pleated media creates more surface area for increased capacity.  The 100% polyester filter media creates additional savings with extended filter life, since cartridges 5 micron and up are cleanable.

20" x 2-3/4" Liquatec SPF Pleated - 20 mic, Features:

  • Polyester media is chemical and bacteria resistant
  • Cleanable (reusable) on cartridges 5 microns and up
  • Pleated media has more surface area providing:
    • Greater dirt holding capacity
    • Lower pressure drop
    • Extended filter life
  • Pleated media has a polypropylene core for added strength
  • Vinyl plastisol ends fuse components together into a unified end cap and gasket

Liquatec SPF Series Polyester Pleated Filters Specifications

Certifications
Dimensions
20" (50.8 cm)
2.75"
20
Materials of Construction
Vinyl-Plastisol
Pleated Polyester
DOE
Polypropylene
Polypropylene
Filter Life
As Needed
Filter Type
Filter Specifications
Drop-In
Sediment/Dirt/Rust
20 µm
Liquatec
Operating Conditions
10 gpm
1 psid
40-125 °F
Mouse over for more information.
