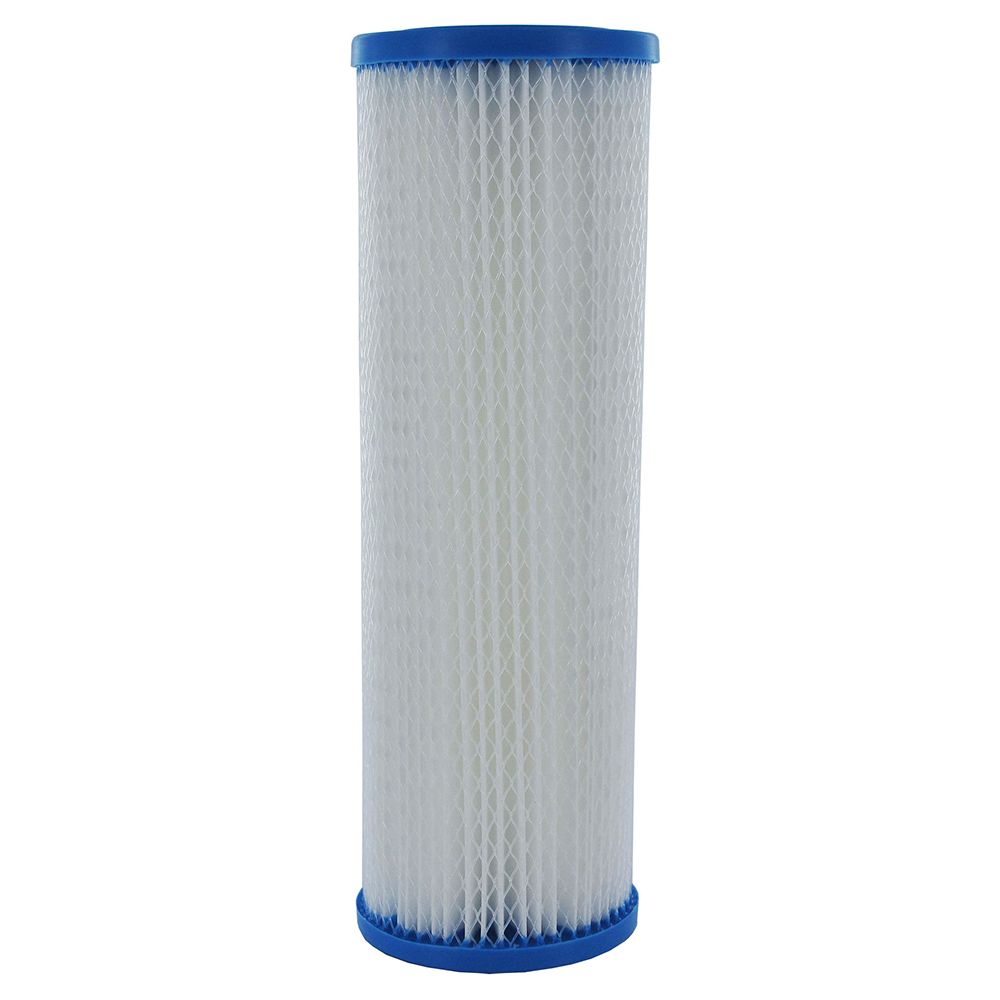

9-7/8" x 4-1/2" BB Liquatec SPF Pleated - 20 mic

SPF-45-1020 Liquatec

Liquatec Out of Business - See Note Below

Part Number: SPF-45-1020
This item is no longer available. We have replaced it with:
Neo-Pure PH-45097-20 9-3/4" BB High Efficiency Pleated Filter 20 micron

Liquatec SPF-45-1020 Polyester Pleated Filter


The Liquatec SPF Series Polyester Pleated filter cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the pleated media creates more surface area for increased capacity.  The 100% polyester filter media creates additional savings with extended filter life, since cartridges 5 micron and up are cleanable.


Features:

  • Polyester media is chemical and bacteria resistant
  • Cleanable (reusable) on cartridges 5 microns and up
  • Pleated media has more surface area providing:
    • Greater dirt holding capacity
    • Lower pressure drop
    • Extended filter life
  • Pleated media has a polypropylene core for added strength
  • Vinyl plastisol ends fuse components together into a unified end cap and gasket

Liquatec SPF Series Polyester Pleated Filters Specifications

Certifications
Dimensions
9-7/8" (25.1 cm)
4.5" (11.4 cm)
12
Materials of Construction
Vinyl-Plastisol
Pleated Polyester
DOE
Filter Life
30 psid
As Needed
Filter Type
Filter Specifications
Drop-In
Sediment/Dirt/Rust
20 µm
Liquatec
Operating Conditions
10 gpm
1 psid
40-125 °F
