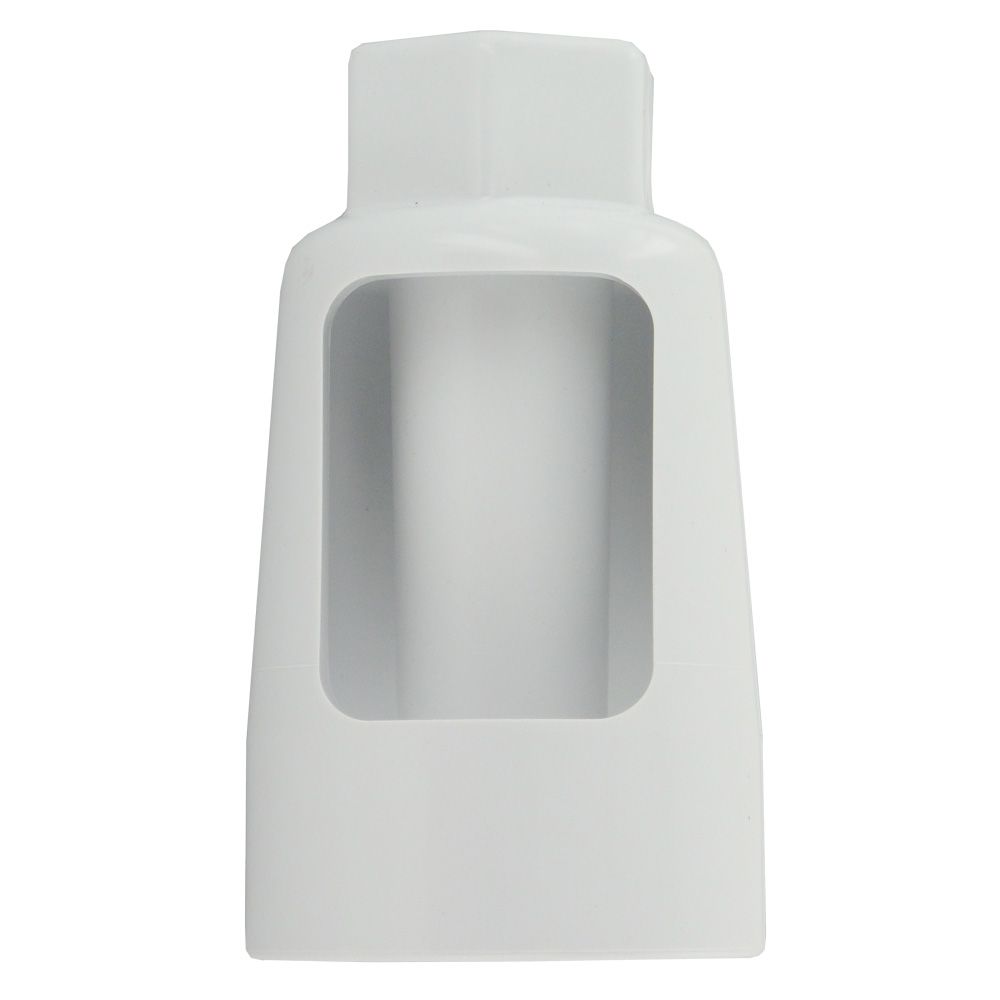

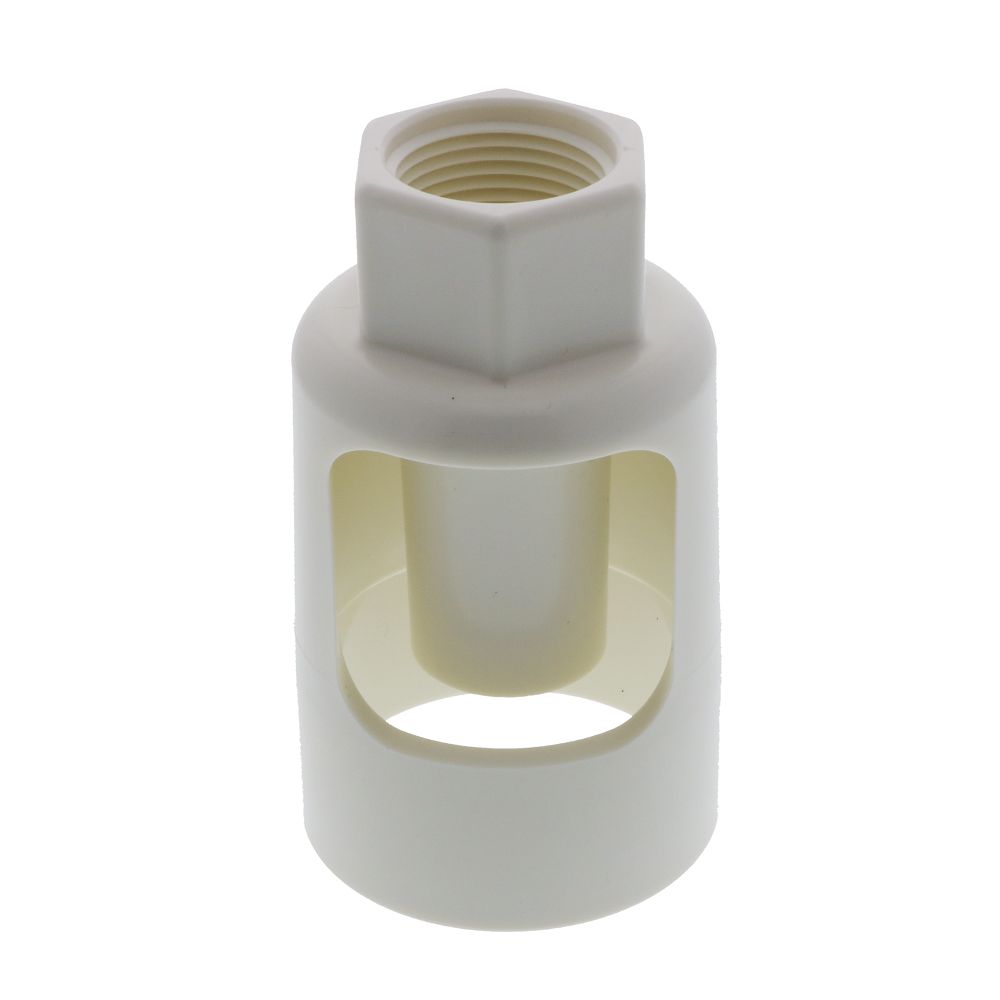

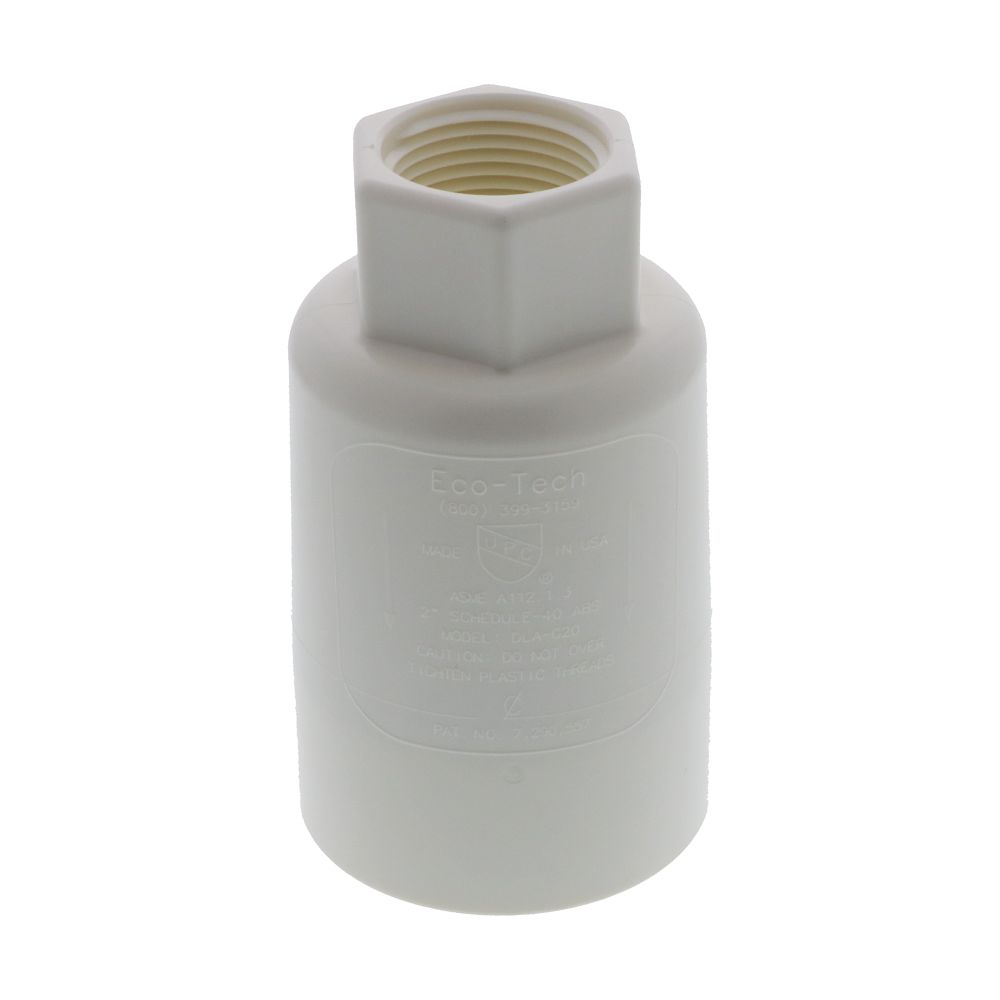

Standpipe Airgap - 2" PVC 40 / ABS, 1" FPT G20

DLA-G-200 Eco-Tech
Mouse over to view larger image.

Part Number: DLA-G-200
MSRP: $13.44
Price: $9.60
3+ for $8.16 ea
6+ for $7.68 ea
12+ for $7.20 ea
Qty:


The DLA-G20 multi-purpose standpipe airgap is designed for commercial water treatment equipment and condensate lines that require an airgap discharge to the drain. The DLA-G20 is perfect for applications where rigid Schedule-40 pipe must be plumbed to an approved airgap device. The DLA-G20 provides a convenient ready made true airgap for all Schedule-40 DWV standpipes.

Standpipe Airgap DLA-G-200 - 2" PVC 40/ABS Features:


  • 1" female thread inlet for versatility of MIPT Schedule-40 nipples and adapters
  • Installs onto 2" ABS or PVC Schedule-40 standpipes
  • Made from white ABS resin to ASTM specifications for 2" Schedule-40 fittings
  • Solid connection ensures a safe and professional installation
  • Proprietary design prevents splash or spray from escaping through the airgap window
  • Accommodates high flow rates
  • 2 vertical inches of airgap
  • Fast easy installation (typically 1-3 minutes)
  • IAPMO / UPC Listed
  • ASME A112.1.3
CAUTION: Use an approved ABS to PVC transition cement such as Oatey or Hercules which is NSF Certified and meets ASTM D 3138 when connecting to PVC pipe. No additional instructions are provided with this product.

Certifications
Operating Conditions
Dimensions
Materials
Types of Fittings
Mouse over for more information.
