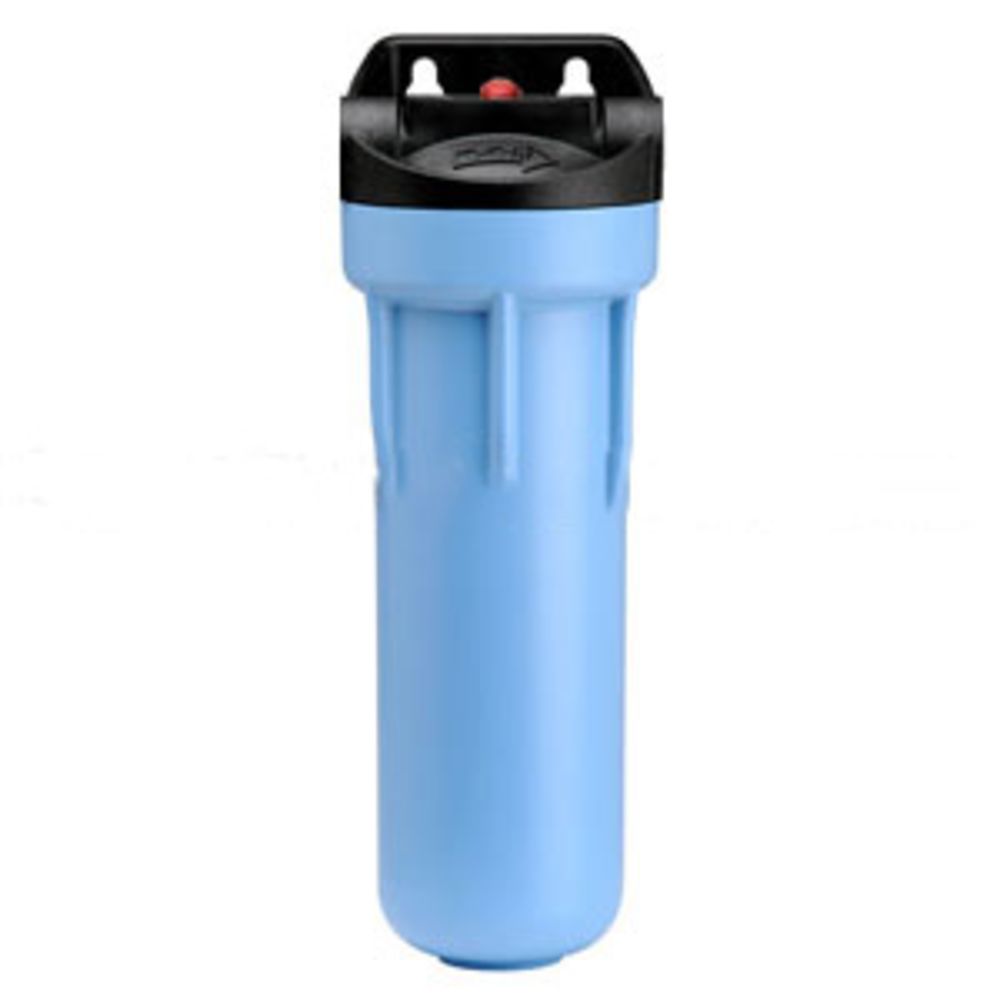

Pentek 158636 10" 3G Slim Line Filter Housing 1/4" Blue Sump IB w/ PR

NSF Certified

Part Number: 158636
This item is no longer available. We have replaced it with:
Pentek 10" 3G Slim Line Filter Housing Black/Blue MB w/ PR

Pentek 158636 10" 3G Slim Line Filter Housing 1/4" Blue Sump IB w/ PR Features:


Pentek 10" 3G Slim Line Filter Housings are the perfect choice for low-flow filtration applications. Their slim design and high chemical compatibility make them ideal for those challenging applications.

  • Housing accepts proprietary Seal-Safe double o-ring sealing cartridges
  • Also accepts standard size DOE (double open end) cartridges
  • Accepts variety of cartridges (2½ - 3 inches in diameter x 9 7/8" tall)
  • Buttress threads for additional strength and easier cartridge changes
  • Leak-proof sealing with top-seated Buna-N O-ring
  • Thick walls for increased strength
  • Excellent chemical resistance
  • Cap has integrated bracket and pressure relief button

Pentek 158636 10" 3G Slim Line Filter Housing 1/4" Blue Sump IB w/ PR Specifications

Housing Specifications
3G Slim Line
1/4"
Black
Blue
Pressure Relief
Integral Bracket
Operating Conditions
2 psi @ 3 gpm
125 psi
125 °F
Dimensions
13-3/8 "
5-3/8 "
Materials
Polypropylene
Polypropylene
300 series stainless steel, EPDM, Polyproylene
Buna-N
Certifications
NSF/ANSI 42
