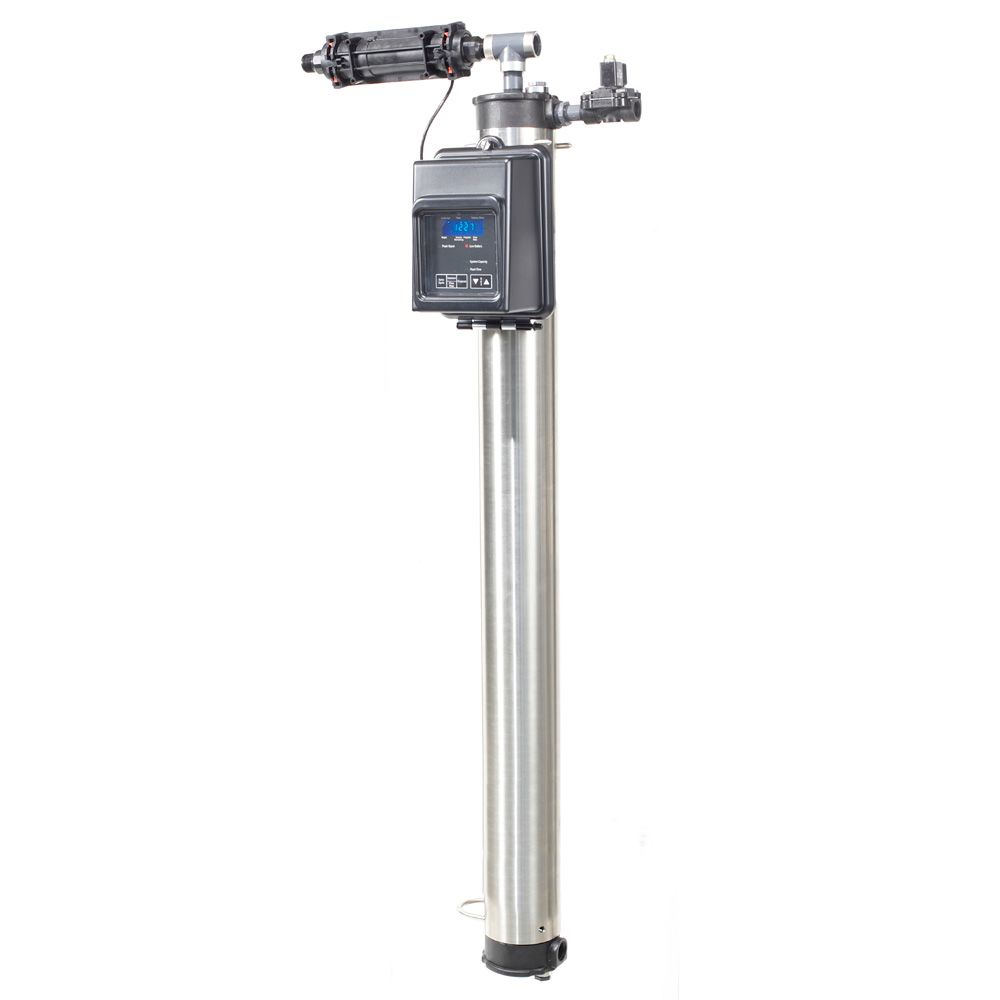

FreshPoint 61788-01 U440 Ultrafiltration System w/ Electronic Metered Controller

61788-01 Pentek160380
Mouse over to view larger image.

Point of entry filtration down to 0.025 microns!

Free Shipping!
Part Number: 61788-01
Alt. Part Number: 160380
This item is obsolete and has no replacement from the manufacturer. Please contact one of our Certified Water Specialists to discuss replacement options.

FreshPoint 61788-01 U440 Ultrafiltration System w/ Electronic Metered Controller Features:

  • Removes turbidity, cysts, and other particles down to 0.025 micron in size
  • Multi-bore membrane structure combines seven single capillaries into one resistant structure to maximize membrane integrity virtually eliminating the potential for fiber breakage
  • Requires only normal line pressure to operate
  • Protects during power outages or intermittent power
  • Retains natural mineral content of the water
  • High surface area and tolerance to plugging
  • Low pressure drop / High flow rates
  • Forward-flush and back-flushing can provide extended filter life in a wide range of applications

ET Electronic Metered Controller:

  • Metered self-cleaning cycle flushes only when needed, using less than 7 gallons per flush cycle
  • Day override feature module daily with fresh water when system is not in use
  • Suitable for indoor or outdoor applications
  • All parameters are adjusted via timer programming and can be modified at any time
  • Regeneration lockout input is available
  • 9V battery backup maintains time of day
  • Diagnostic display for Totalized Flow, Instantaneous Flow Rate, Days Since Last Flush, Prior Service Volume, Previous Days Water Usage
  • Programmable auxiliary relay

NOTE: We recommend installing a step down sediment before the FreshPoint System, such as the 140 mesh Rusco Sediment or Sand Trapper filter followed by a 5 micron 20" BB pleated or graded density filter .  Filtering out larger sediment and particulates prior to the Ultrafiltration membrane extends the life of Hollow Fiber Membrane (UF) and conserves water with reduced flush cycles.

FreshPoint 61788-01 U440 Ultrafiltration System Specifications
FreshPoint 61788-01 U440 Ultrafiltration System Brochure
FreshPoint 61788-01 U440 Ultrafiltration System Manual
FreshPoint 61788-01 U440 Ultrafiltration System Application Guide

Learn More about Water Ultrafiltration Membrane Technology

*NOTE: Ultra Filtration does not remove fluoride from water

With Meter
Cyst Reductioin, Fine Sediment, Turbidity
Stainless Steel
120 psi
10 gpm peak flow (Note: Maximum recommended continuous flow for the FreshPoint system is 1.2 gpm for surface water, and 3.0 gpm for well water.) gpm
Membrane Material
Polyethersulfone, modified (PESM)
100-150 kD
51 sq. ft.
50/60 Hz
1-99 Minutes
1-50 gpm +/- 5%
Filter Specifications
