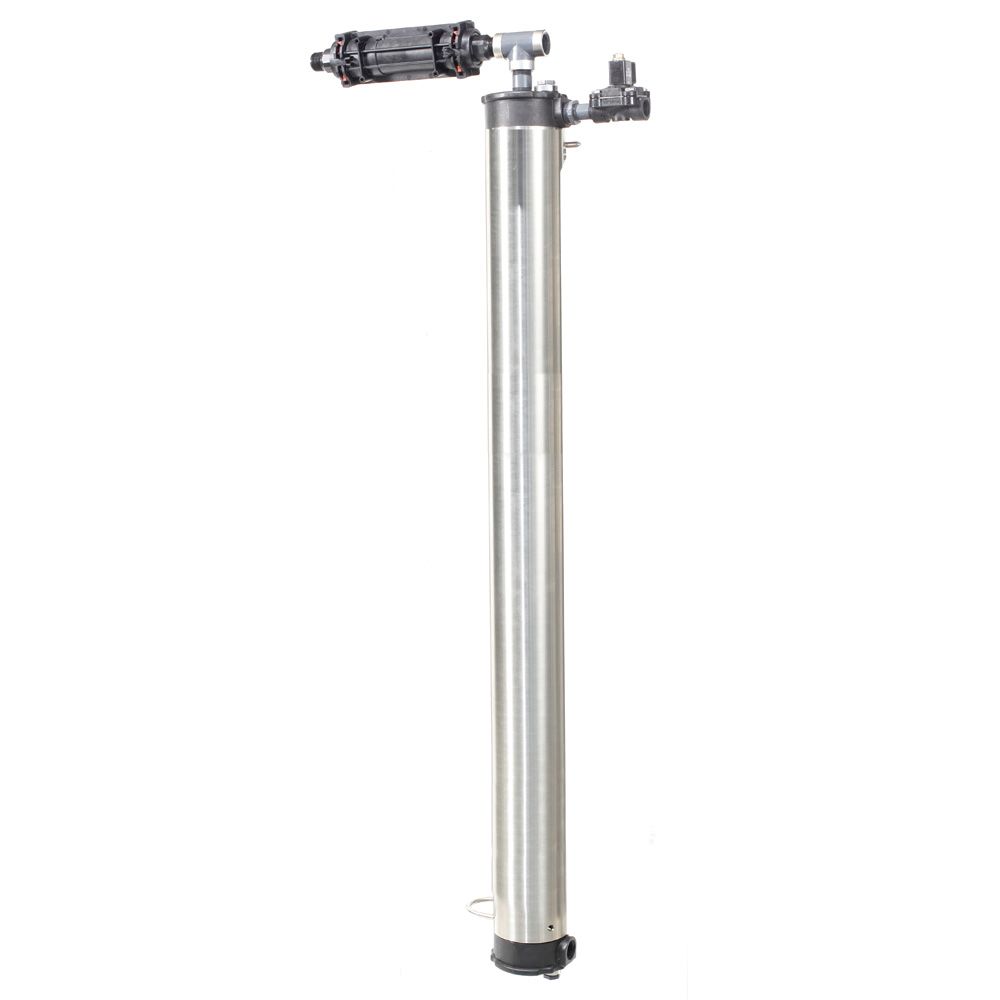

FreshPoint 61788-02 U440 Ultrafiltration System

FreshPoint 61788-02 U440 Ultrafiltration System
Mouse over to view larger image.

Point of entry filtration down to 0.025 microns!

Free Shipping!
Part Number: 61788-02
Alt. Part Number: 160375
This item is obsolete and has no replacement from the manufacturer. Please contact one of our Certified Water Specialists to discuss replacement options.

Freshpoint 61788-02 U440 Ultrafiltration System Features:


  • Removes turbidity, cysts, and other particles down to 0.025 micron in size
  • Multi-bore membrane structure combines seven single capillaries into one resistant structure to maximize membrane integrity virtually eliminating the potential for fiber breakage
  • Requires only normal line pressure to operate
  • Protects during power outages or intermittent power
  • Retains natural mineral content of the water
  • High surface area and tolerance to plugging
  • Low pressure drop / High flow rates

We recommend installing a whole house sediment prefilter before the FreshPoint System, like a Rusco filter or a 5 micron 20" BB pleated or graded density filter, in order to eliminate larger sediment before the water reaches the Ultrafiltration membrane.

FreshPoint 61788-02 U440 Ultrafiltration System Specifications
FreshPoint 61788-02 U440 Ultrafiltration System Brochure
FreshPoint 61788-02 U440 Ultrafiltration System Manual
FreshPoint 61788-02 U440 Ultrafiltration System Application Guide

Learn More about Water Ultrafiltration Membrane Technology

*NOTE: Ultra Filtration does not remove fluoride from water

General
Without Meter
Cyst Reductioin, Fine Sediment, Turbidity
3/4" MNPT
Stainless Steel
120 psi
10 gpm peak flow (Note: Maximum recommended continuous flow for the FreshPoint system is 1.2 gpm for surface water, and 3.0 gpm for well water.) gpm
Membrane Material
Polyethersulfone, modified (PESM)
0.025
0.065
100-150 kD
51 sq. ft.
Controller
50/60 Hz
1-99
1-9999 Gallons
1-50 gpm +/-5%
