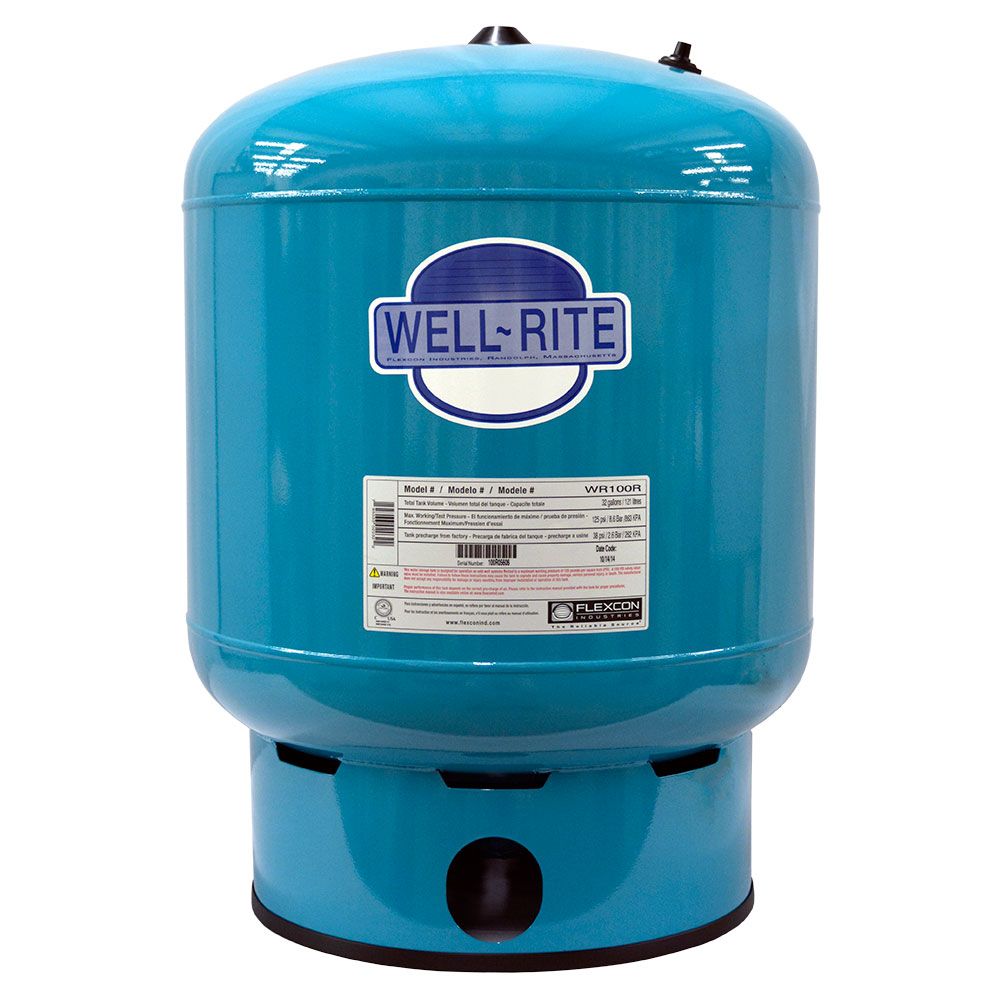

Well-Rite WR-140 Well Pressure Tank 44 Gallon Steel

WR-140 Flexcon IndustriesWR-140R
Mouse over to view larger image.
You might like:

NSF Certified  BPA Free  Made in USA

Free Shipping!
Part Number: WR-140
Alt. Part Number: WR-140R, FWR-140
This item is no longer available. We have replaced it with:
Amtrol Well-X-Trol WX-250 Well Pressure Tank 44 gal

Well-Rite WR-140 Well Pressure Tank Features:

The Well-Rite WR-140 Well Pressure Tank is a diaphragm type pre-charged hydro-pneumatic tank designed for residential and commercial water well, pressure booster, irrigation and reverse osmosis systems. The unique design of the WR-140 well water storage tank prevents tank corrosion and reduces wear and tear on your well pump.

  • Stainless steel system connection
  • Brass Air Valve with o-ring seal
  • Controlled Action Diaphragm maximizes drawdown
  • Heavy duty butyl diaphragm
  • Appliance quality urethane paint for indoor or outdoor installation
  • Drawdown 30/50 Setting: 15 gallons
  • 5 year warranty
  • NSF Standard 61 listed

Well-Rite WR-140 is compatible with the following tanks:

  • Well-X-Trol WX-250
  • Wel-Flo WF140
  • Goulds V140
  • Sta-Rite PSP120-T5O
  • Sta-Rite PSP50-T50
  • Sta-Rite PS50-T50
  • Champion CH10050
  • How 2 Tank HT44
  • A.O. Smith SSB-52, PM45
  • Flex2Pro H2P-45
  • Flex2Pro WWT-45

The Well-Rite WR-140 44 gallon storage tank can be used for reverse osmosis or well pressure tank applications. The stainless steel connection and fully enclosed polypropylene & butyl water reservoir avoids leaching issues. The air pre-charge is factory set at 38 psi for well tank applications and should be reduced to 7 PSI for RO applications.

Tank Specifications
Pressure Pump Tank, RO Water Storage
44 Gallons
38 psi
1-1/4" FNPT Stainless Steel
17.7 Gallons
15 Gallons
13 Gallons
36.25 "
21 "
67 lbs
Operating Conditions
140 °F
125 psi
Drawn Steel w/ Epoxy Finish
Butyl Rubber
NSF Certified to Standard 61
5 years
