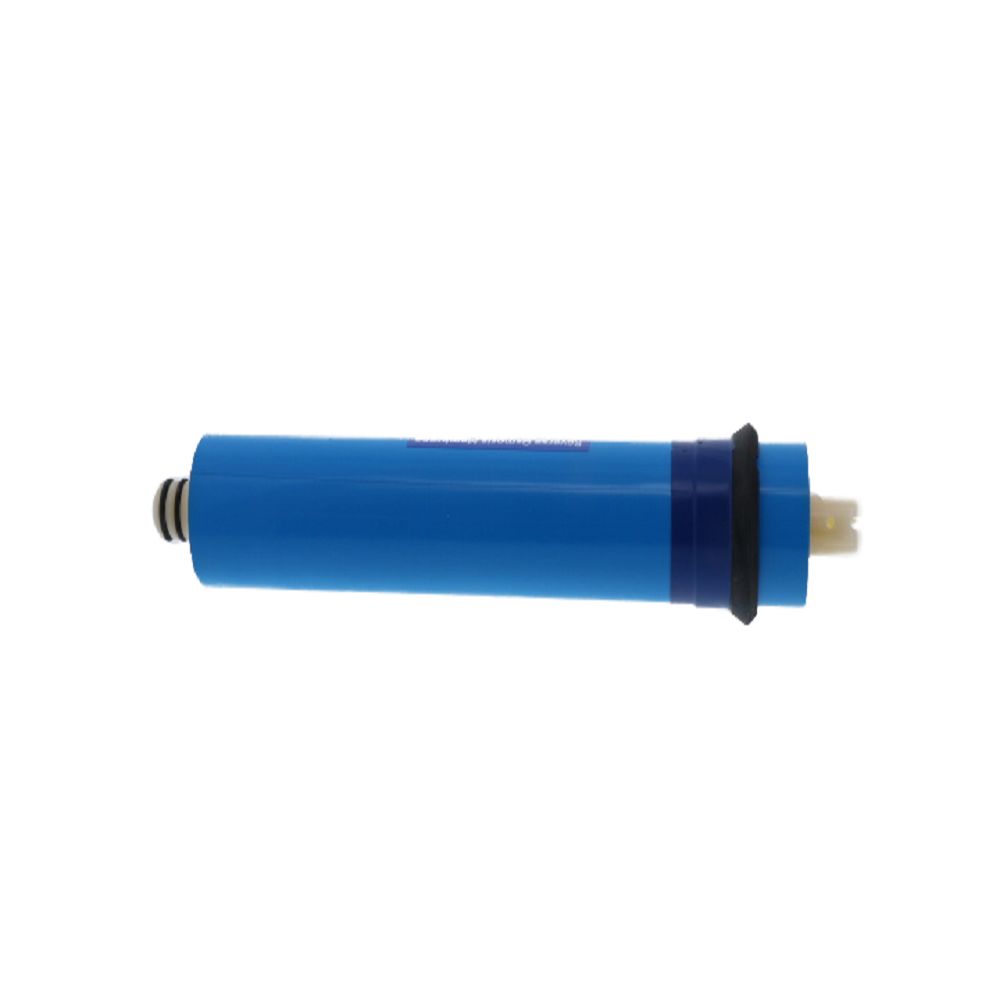

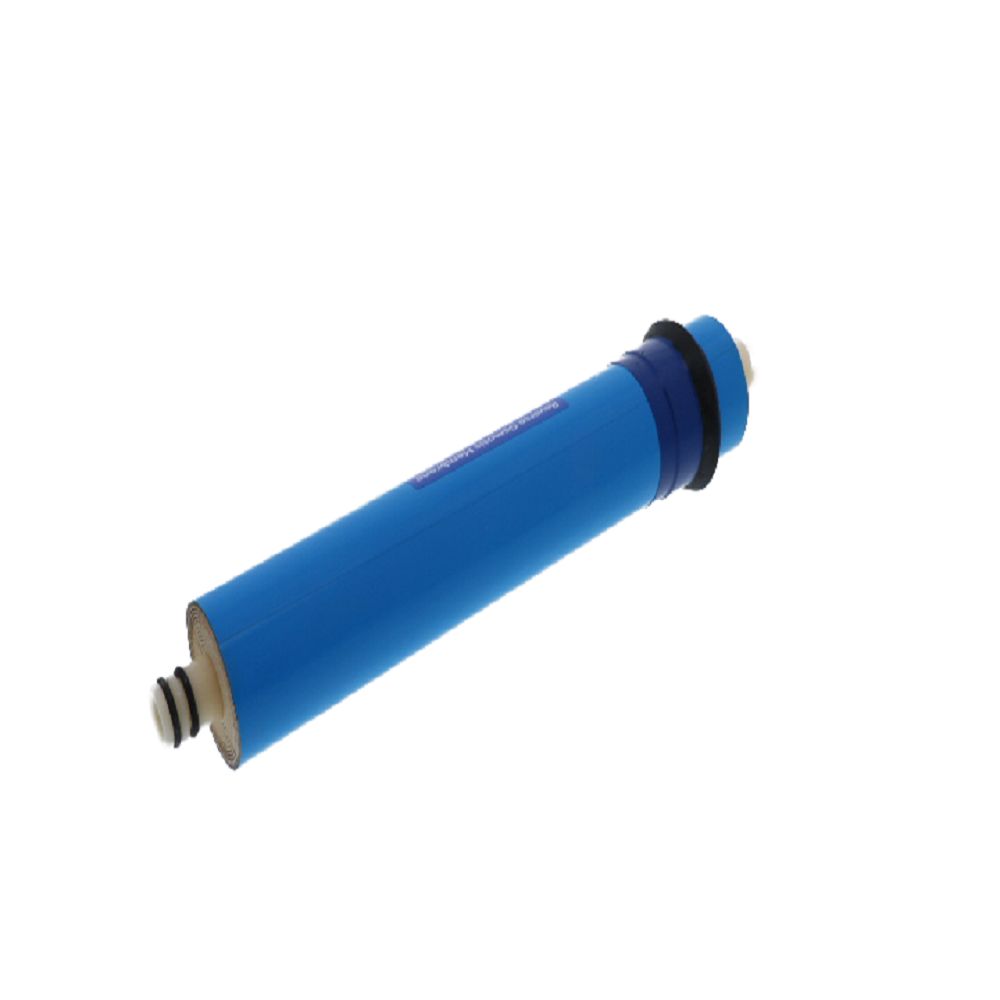

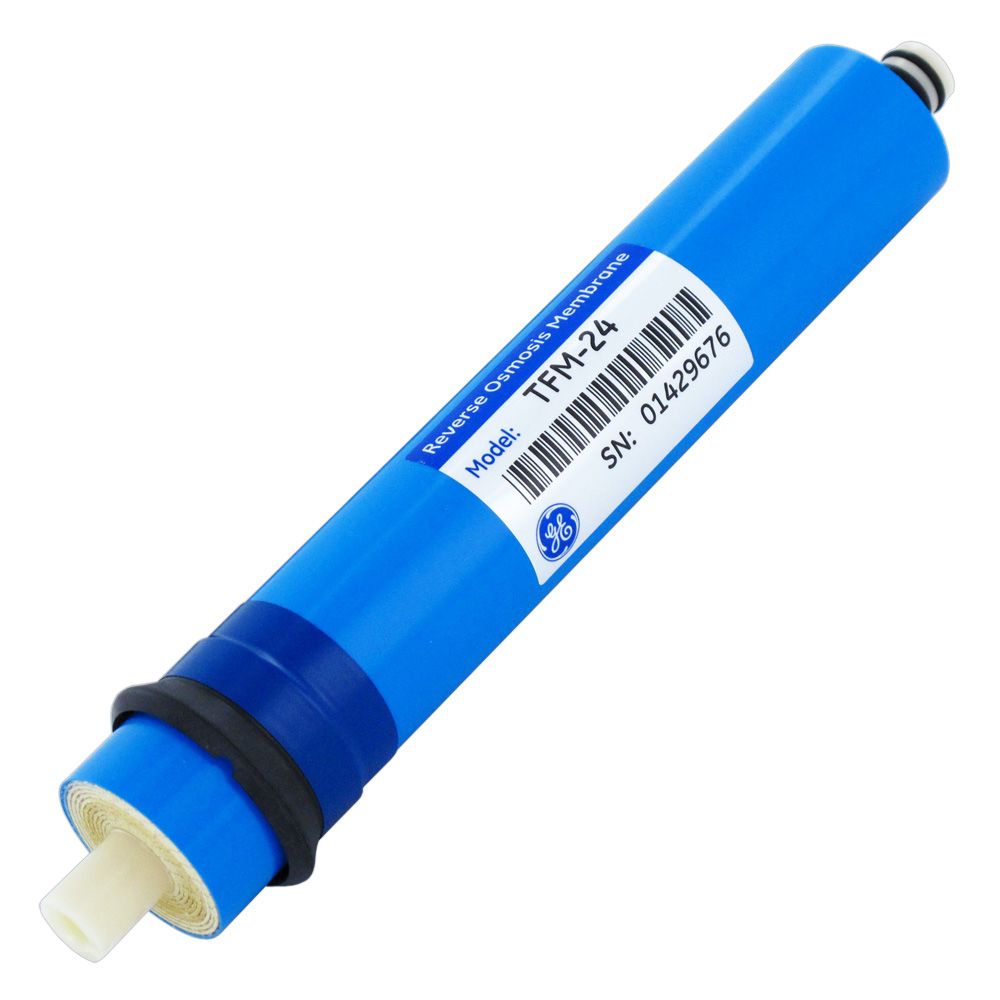

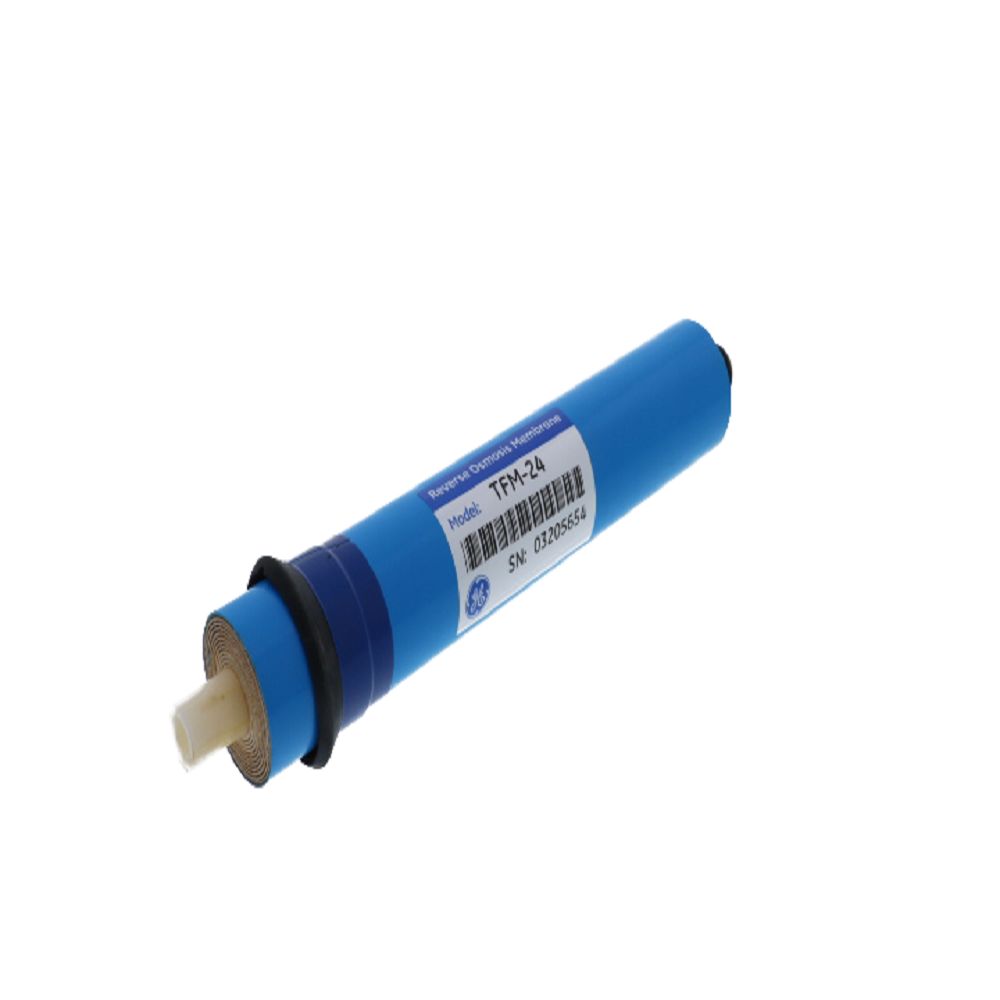

GE Osmonics Desal TFM-24 TFC RO Membrane Element

GE Osmonics Desal TFM-24 TFC RO Membrane 1220189
Mouse over to view larger image.
You might like:

NSF Certified  Made in China

TFM Membrane

Model: TFM-24
Part Number: 1220189
MSRP: $61.67
Price: $44.05

How do we compare?
$44.50 $0.45 more ea @ IsopureWater
  as of Feb 25, 2018

GE Osmonics Desal TFC RO Membrane TFM-24 (24-30 GPD) Features:

GE Osmonics Desal Membrane-Separation Technology employs crossflow filtration where captured impurities on the membrane are constantly swept away by the concentrate stream. This continuously cleaning prolongs membrane life reducing maintenance costs. In common applications, the RO membrane element, within a pressure vessel, accepts inflow pressurized saline feedwater. Crossflow filtration across the membrane then divides the flow into two outflow streams: the cleansed permeate feed and the concentrate or reject stream.

  • Residential Applications:
    • Purify varying qualities of saline water
  • Commercial Applications:
    • Drinking water for restaurants
    • Drinking water vending machines
    • Aquarium water treatment
    • Softened water for homes, hotels, commercial laundries and car washes
    • Post-treatment of deionized water
    • Pure water for pharmaceuticals, laboratories and electronics
    • Hemodialysis
    • Oil/water separation

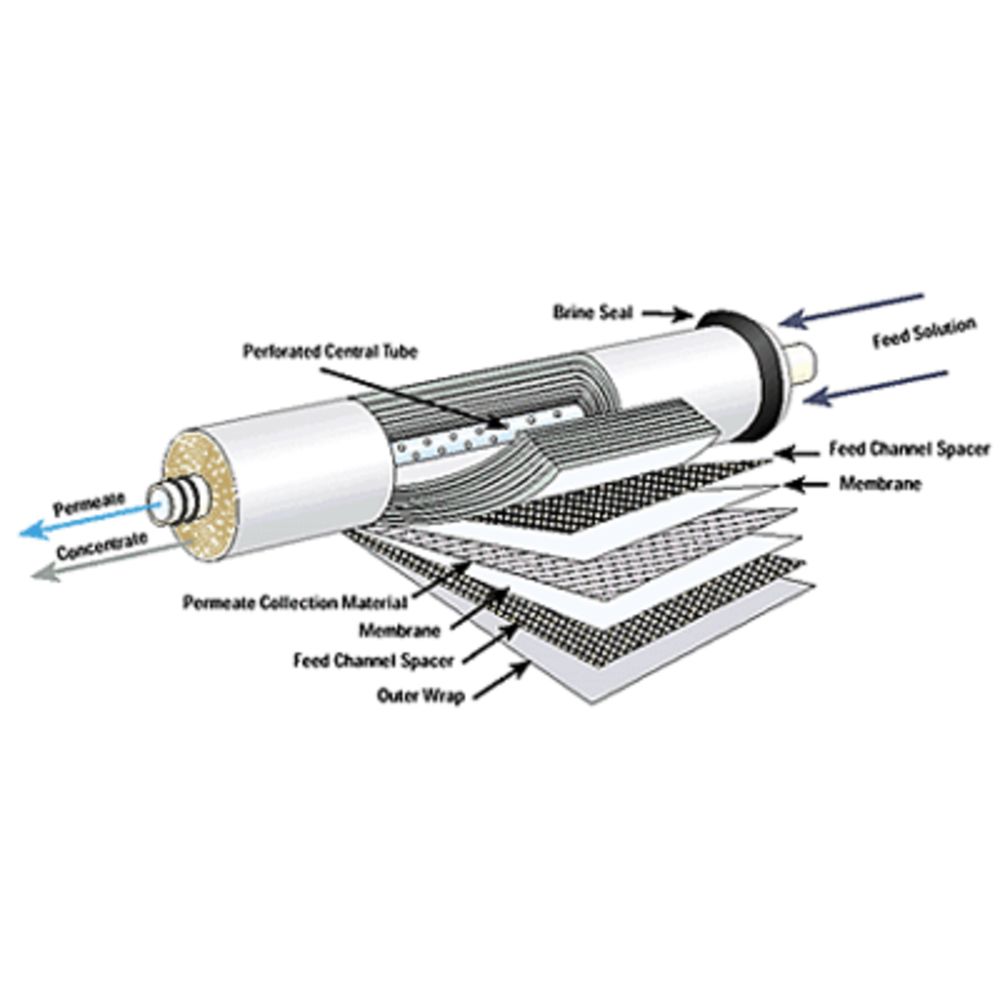

Element Membrane diagram
(not the encapsulated model)

GE Osmonics Desal TFM-24 RO Membrane Specifications

24 gpd
98 %
11.75 "
1.5 "
Operating Conditions
Membrane Specifications
Drop-in Element
24 - 36 months
