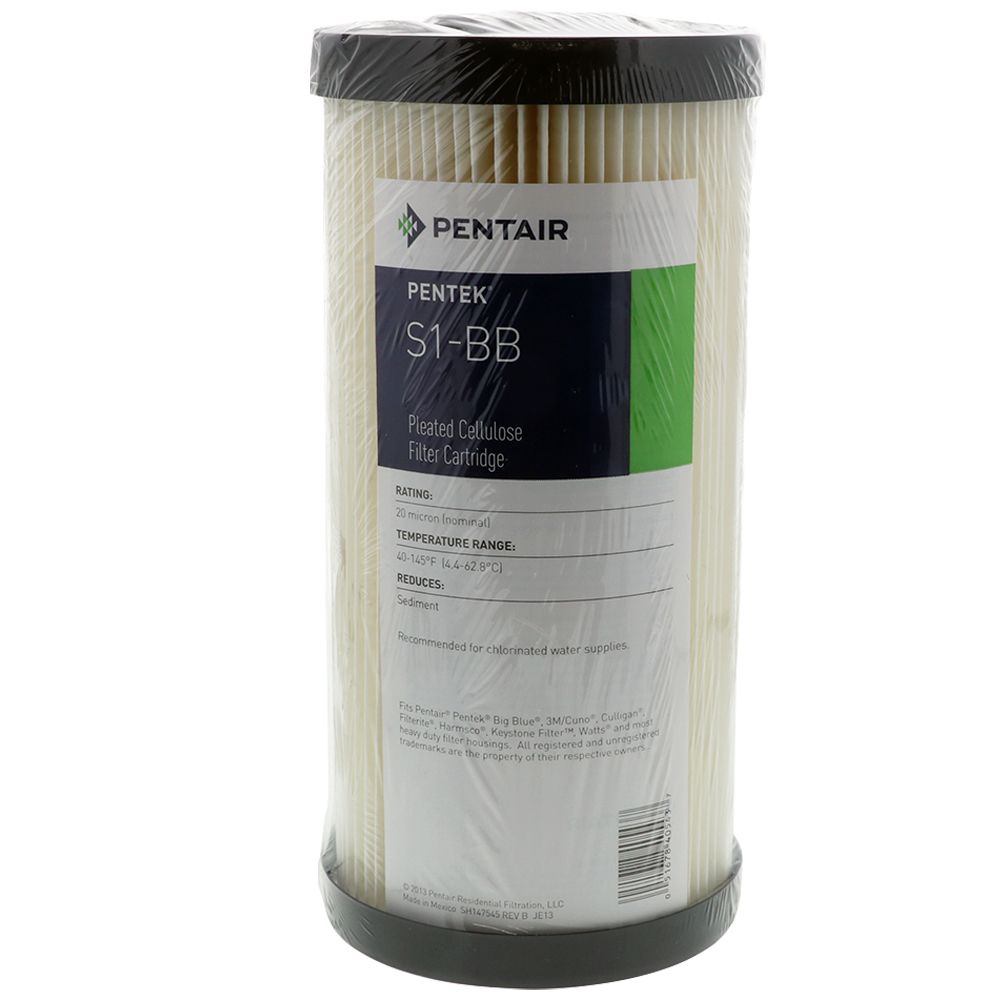

10" BB Pentek S1-BB Pleated Cellulose 20 mic Filter

10-inch Pentek BB S1-BB Pleated Cellulose 20 mic Filter
Mouse over to view larger image.
You might like:

Model: S1-BB
Part Number: 155405-43
MSRP: $12.40
Price: $8.45
8+ for $8.07 ea
Qty:

How do we compare?
$14.99 $6.54 more ea @ DiscountFilterStore
  as of Feb 20, 2018
$8.91 $0.46 more ea @ HomeWaterFilters
  as of Feb 20, 2018

10" BB Pentek S1-BB Pleated Cellulose 20 mic Filter Features:

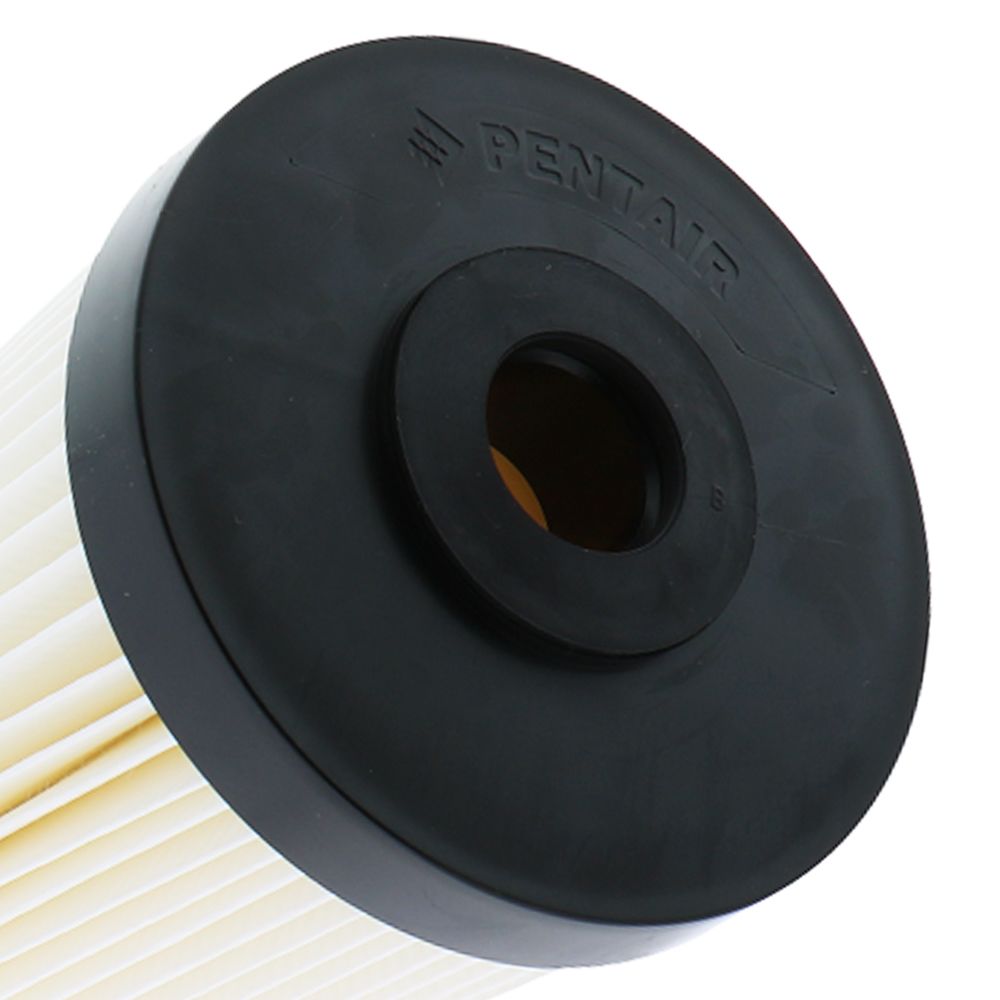

S1 Series cartridges are manufactured from a pleated cellulose media and are designed for general water filtration purposes. The media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unified end cap and gasket.

  • Economically priced
  • Nominal 20-micron rating
  • Reduces sand, sediment, silt, rust particles, and scale particles
  • Pleated cellulose design maximizes dirt-holding capacity

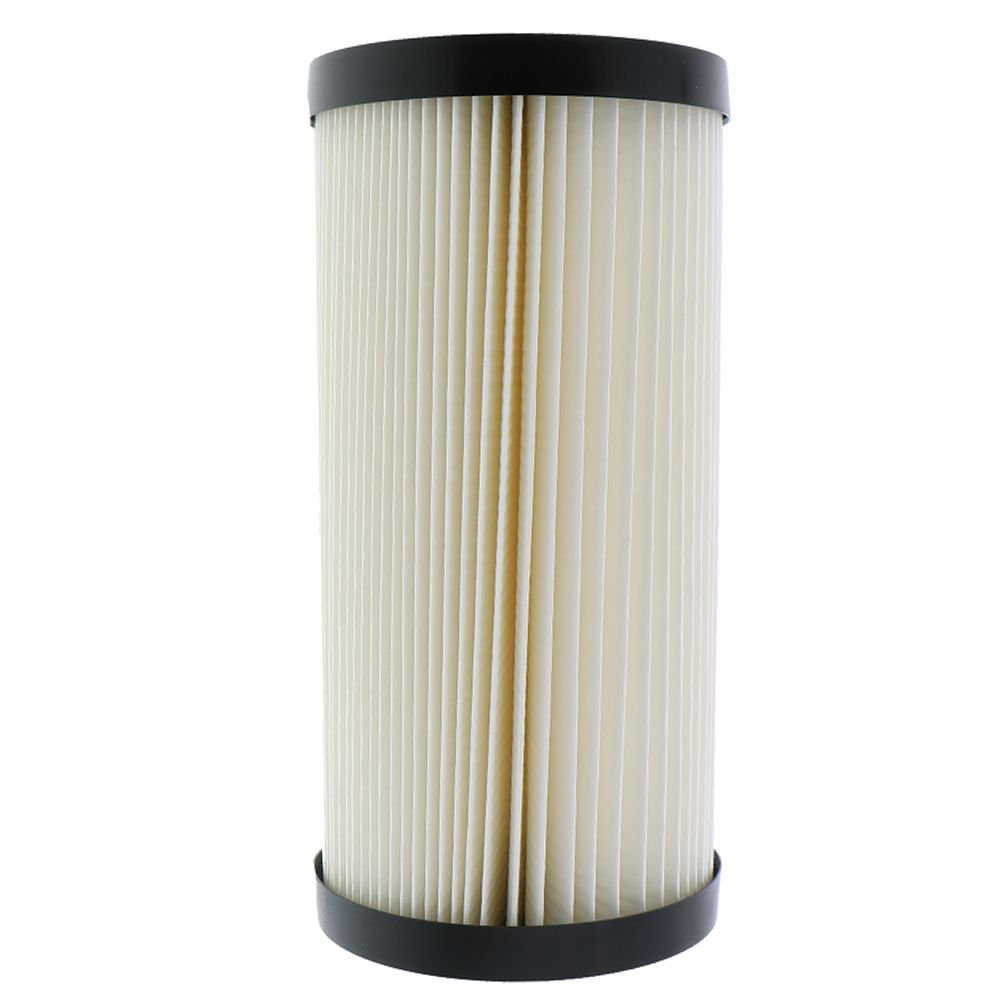

The media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unitized end cap and gasket. An external netted sheath helps retain uniform pleat spacing in high flow and pulsating flow streams. The overlap seam is sonically welded to reduce bypass improving filtration efficiency.

Not Recommended for use with well water or other non-chlorinated sources.  Also known as American Plumber® W20CLHD, the Pentek S1-BB is private labled for many other brands including:  Ametek S1-BB, Bruner S1-BB, Culligan S1-BB, GE FXHSC, Kleen Plus S1-BB, USFilter S1-BB, Plymouth Products S1-BB

Pentek S1-BB Pleated Cellulose Filter Specifications

Also Compatible With:
American Plumber W20CLHD, 155405-51
Purwater PC20-BB-S
Filter Specifications
Drop-In
Sediment/Dirt/Rust
20 µm
2070 in2
Pentek
Dimensions
9-3/4" (24.8 cm)
4.5" (11.4 cm)
8
Operating Conditions
10 gpm
1.2 psid
40-145 °F
Filter Life
As Needed
Materials of Construction
Vinyl-Plastisol
Resin Impregnated Cellulose
DOE
Certifications
