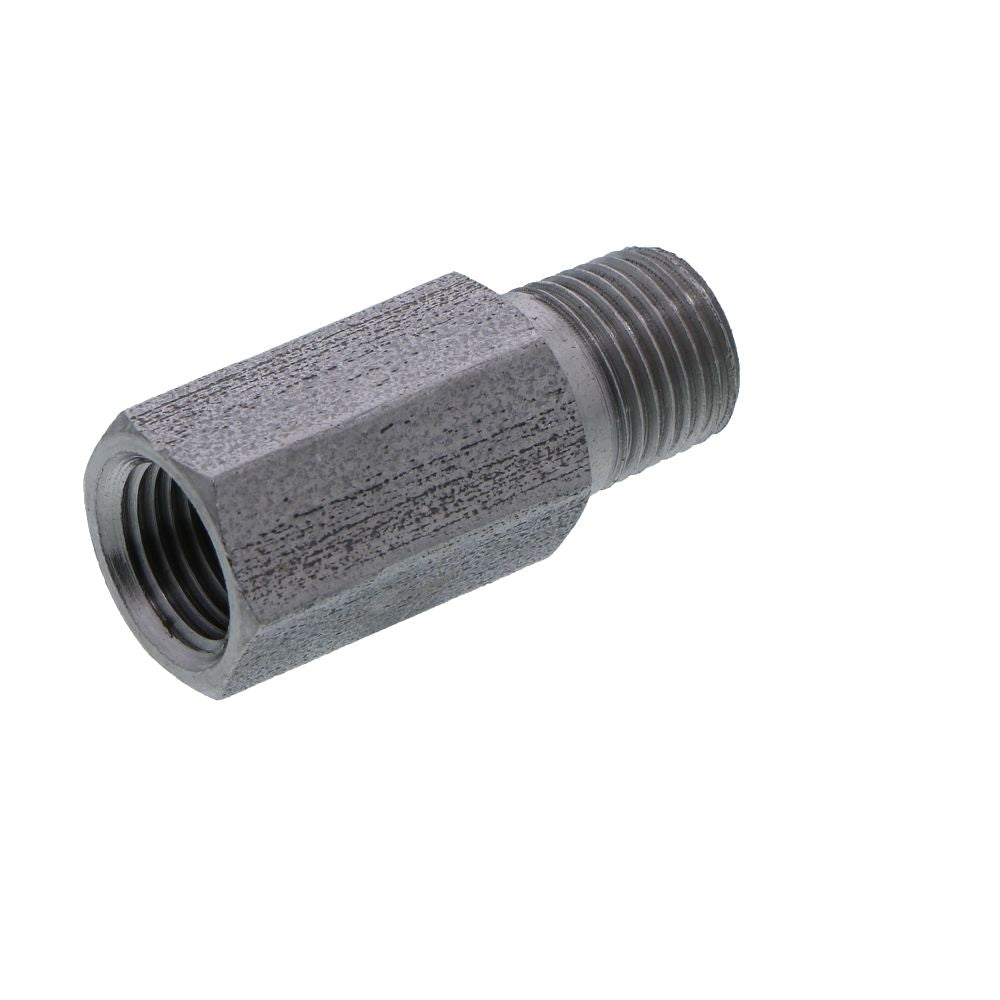

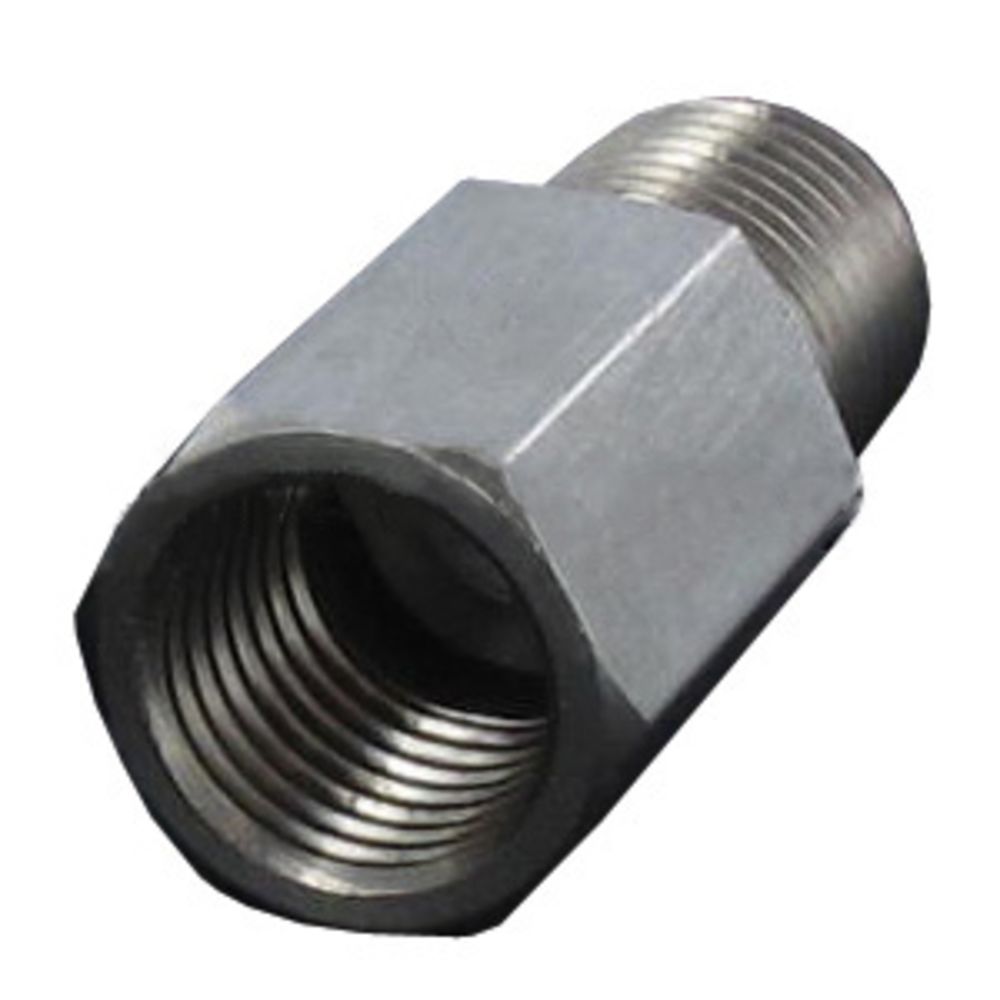

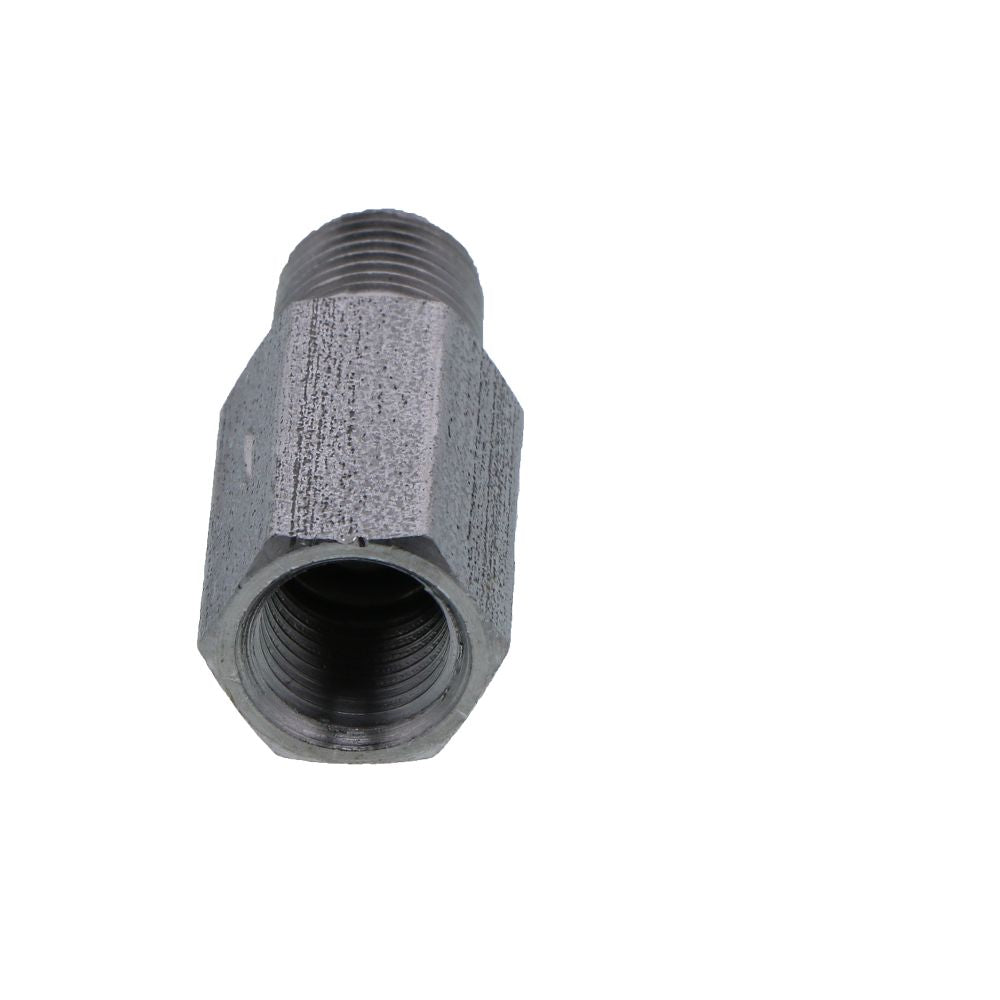

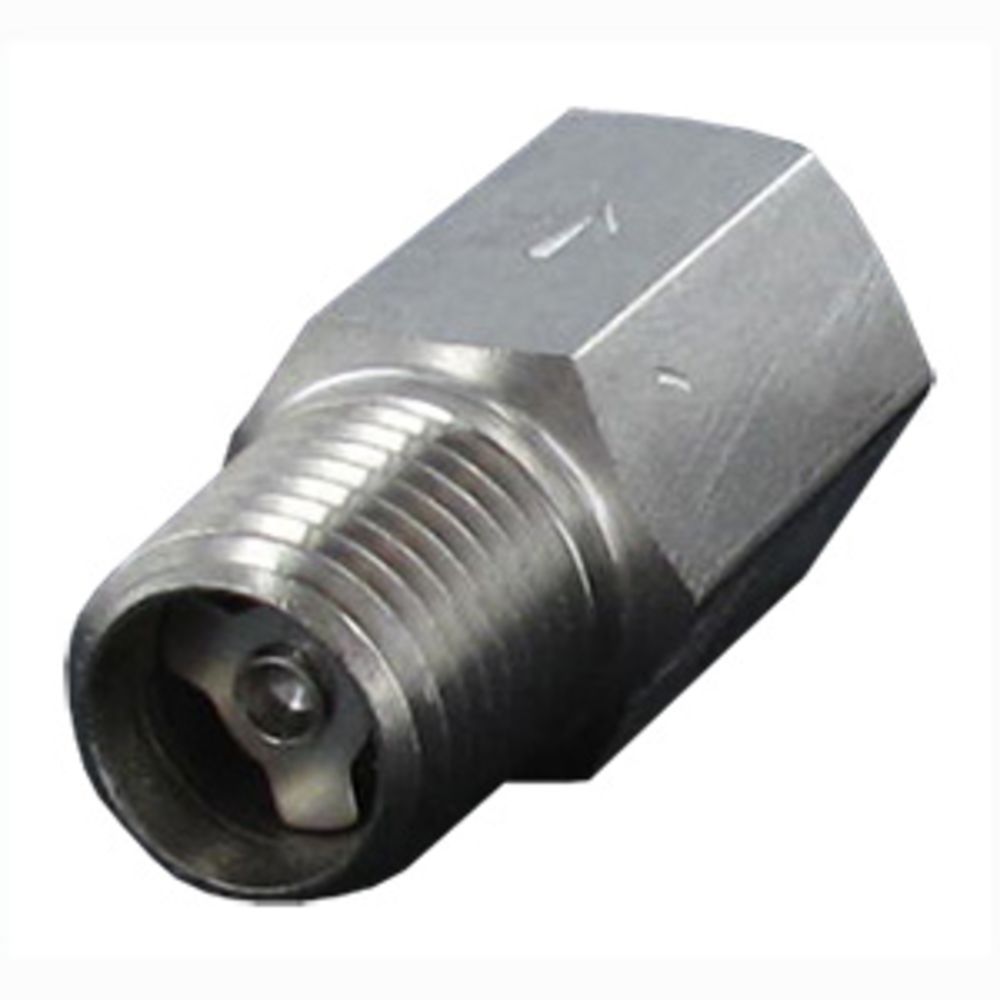

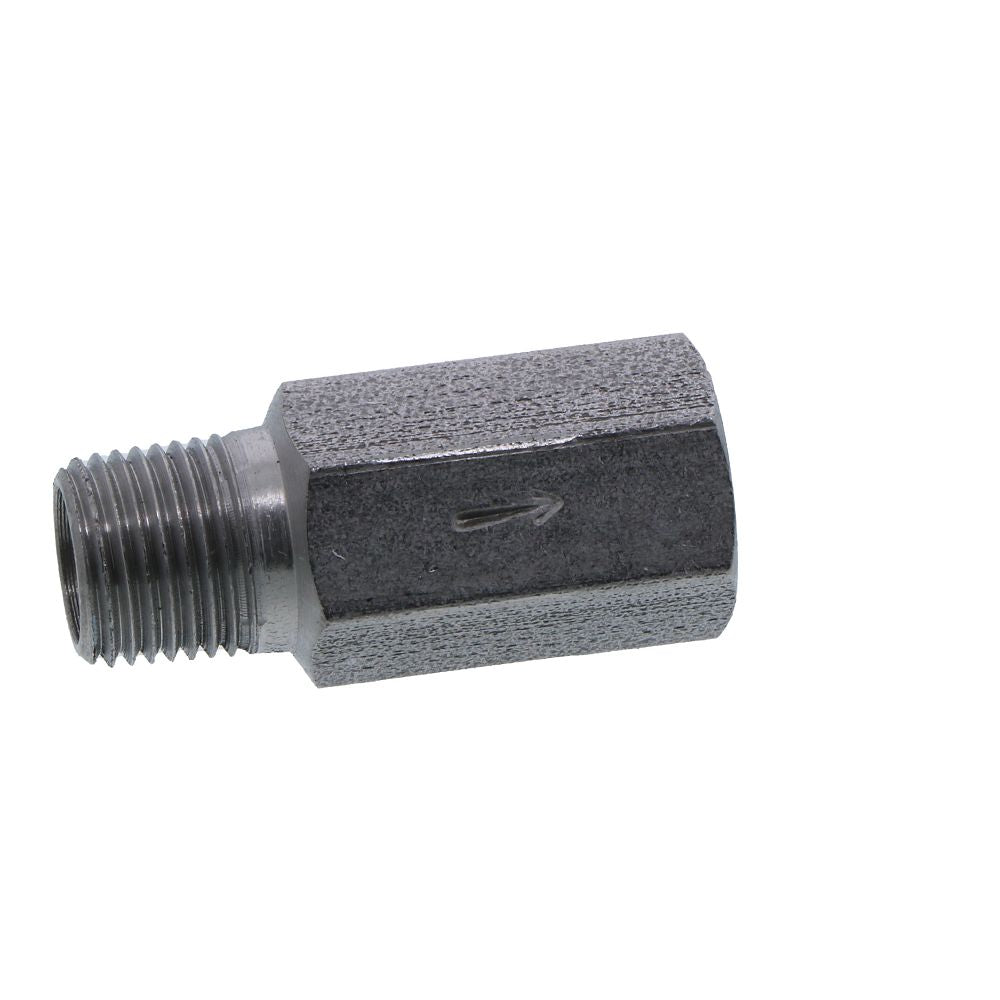

Inline Stainless Steel Check Valve - 1/8 mpt Inlet x 1/8 fpt Outlet

CV18S-MF CV18S-MxF Show Picture 1Show Picture 2

Made in USA

Part Number: CV18S-MF
Alt. Part Number: CV18S-MxF
In Stock, Ready to Ship!
MSRP: $13.16
Price: $9.40
Qty:

How do we compare?
$23.50 $14.10 more ea @ h2oPurificationSystems
  as of Apr 26, 2018

CV18S-MF Inline Stainless Check Valve - 1/8" MPT x 1/8" FPT Features:


Check valves are spring-activated, poppet style design to create a positive seal to prevent reverse flow and cross contamination.

  • Material:  Stainless Steel
  • Connection:  1/8" Male NPTF Inlet x 1/8" Female NPTF Outlet
  • Dimensions:1.04" x 1/2 Hex
  • Cracking Pressure:  1.5 psi +/- 1/2 psi
  • Flow Rates:  .35 gpm @ 5 psi, .64 gpm @ 10 psi, .73 gpm @ 15 psi, .84 gpm @ 20 psi
  • O-Rings: Buna-N FDA grade

Certifications
Dimensions
1.04" x 1/2 Hex
General
Material
Stainless Steel
Operating Condition
.35 gpm @ 5 psi
Mouse over for more information.
