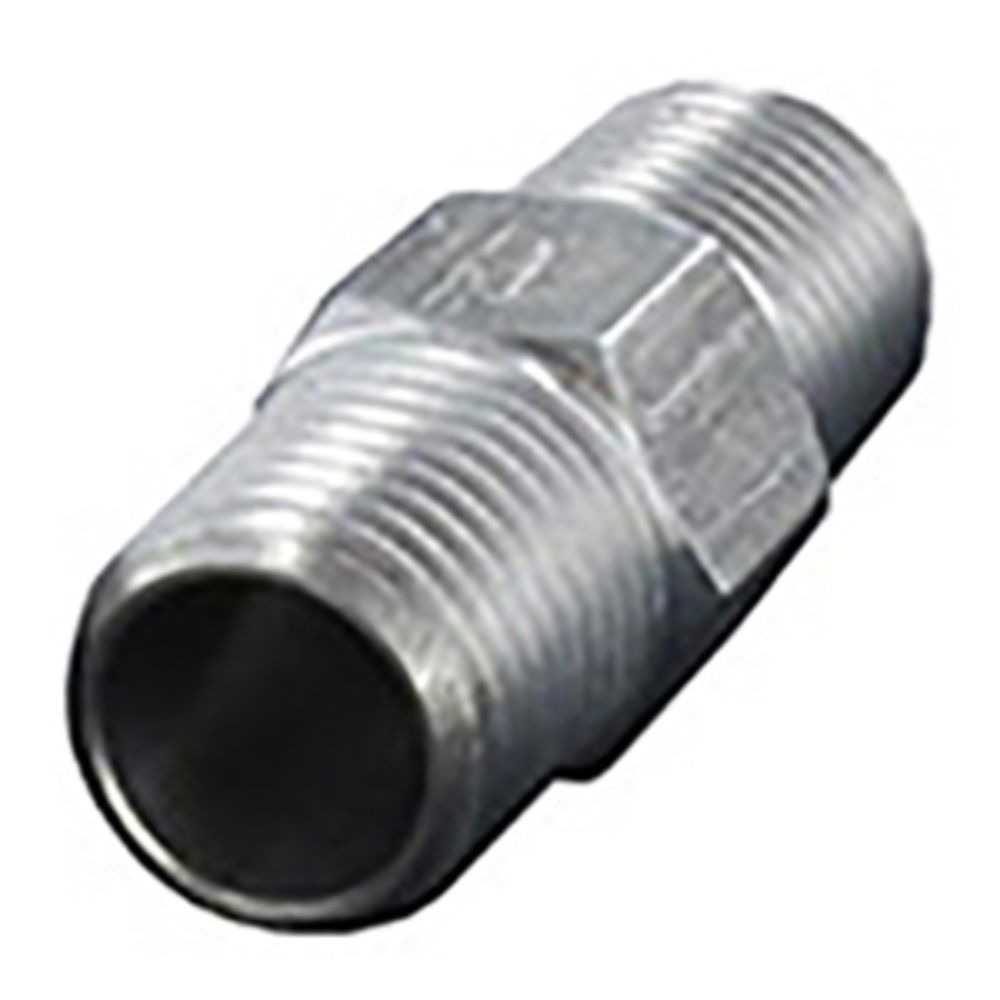

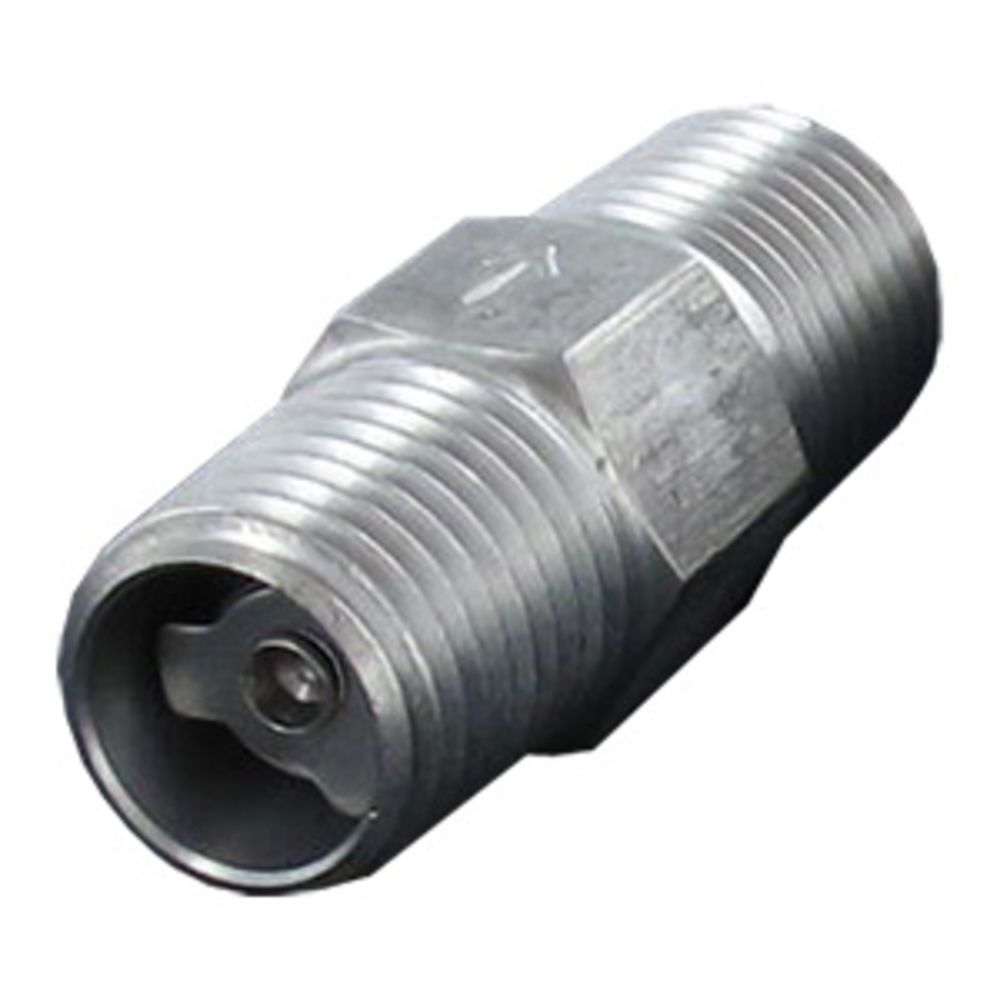

Inline Stainless Steel Check Valve - 1/8" mpt Inlet x 1/8 mpt Outlet

CV18S-MM CV14SS-MxM Show Picture 1Show Picture 2

Made in USA

Part Number: CV18S-MM
Alt. Part Number: CV14SS-MxM
In Stock, Ready to Ship!
MSRP: $12.74
Price: $9.10
Qty:

How do we compare?
$22.75 $13.65 more ea @ h2oPurificationSystems
  as of Sep 21, 2018

CV18SS-MM Inline Stainless Check Valve - 1/8" MPT Features:


Check valves are spring-activated, poppet style design to create a positive seal to prevent reverse flow and cross contamination.

  • Material:  Stainless Steel
  • Connection: 1/8" MPT Inlet x 1/8" MPT Outlet
  • Dimensions: 1" x 7/16" Hex
  • Cracking Pressure:  1.5 psi +/- 1/2 psi
  • Flow Rates:  .35 gpm @ 5 psi, .64 gpm @ 10 psi, .73 gpm @ 15 psi, .84 gpm @ 20 psi
  • O-Rings: Buna-N FDA grade

Certifications
Dimensions
1" x 7/16" Hex
General
Material
Stainless Steel
Operating Condition
.35 gpm @ 5 psi
