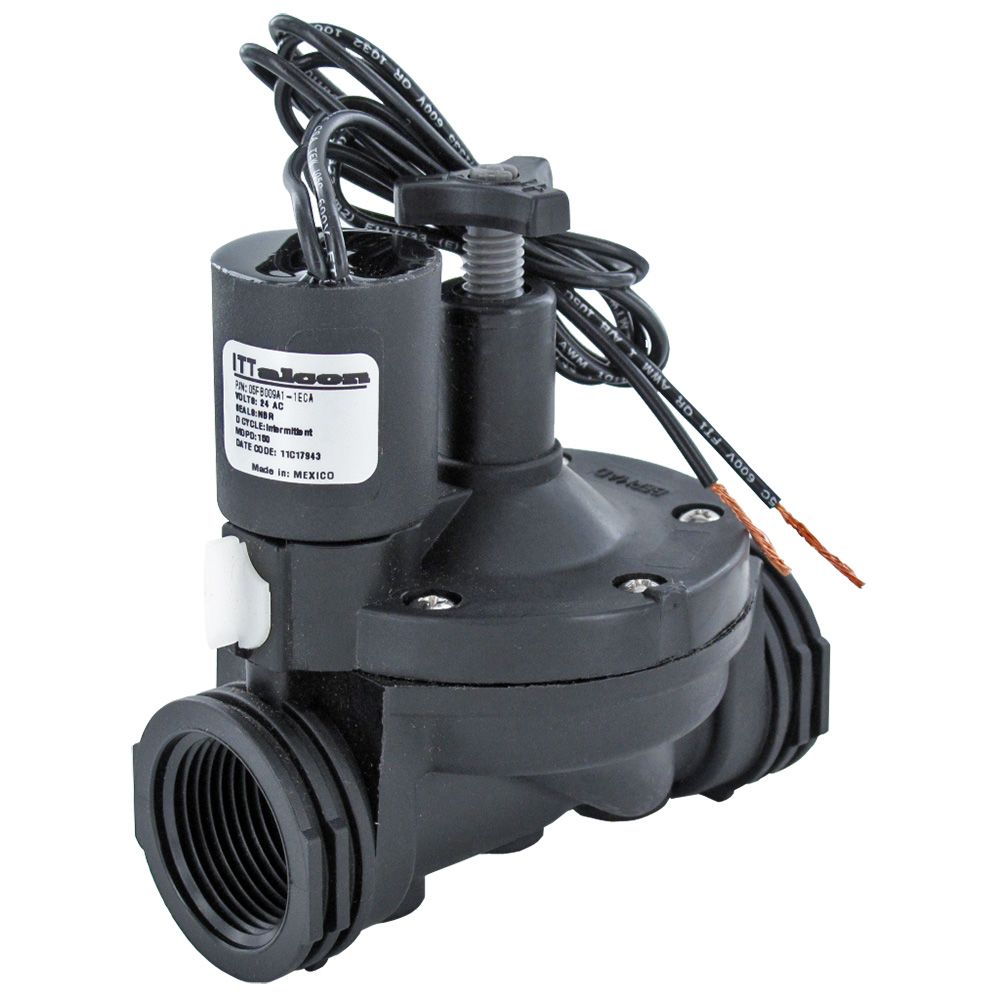

Alcon 05FB009A1-1ECA Solenoid Valve N.C. With Flow Control 1" FPT 24V

Alcon 05FB009A1-1ECA Solenoid Valve N.C. With Flow Control 1-inch FPT 24V
Mouse over to view larger image.

NSF Certified

Part Number: 05FB009A1-1ECA
Alt. Part Number: 954B-1249, C9-212N6252-G0-MF-24VAC

Alcon 05FB009A1-1ECA Solenoid Valve N.C. With Flow Control 1" FPT 24V


The Alcon 05FB009A1-1ECA is a Normally Closed 1" port solenoid valve which is designed to allow maximum flow over a wide range of pressures. The internal diaphragm allows smooth opening and closing preventing problems with surge hazards and water hammer. The body is made of glass reinforced nylon and the diaphragm and seals are Nitrile (Buna-N).

  • Ports: 1" NPT Female
  • Body Material: Glass Reinforced Nylon
  • Internal Components: Stainless Steel
  • Seals: NBR (Buna-N)
  • Voltage: 24V AC
  • Duty Cycle: Intermittent
  • Connection Type: 18 AWG Lead Wires
  • Has adjustable flow control
  • Certified to NSF/ANSI Standard 61

Alcon 05FB009A1-1ECA Solenoid Valve N.C. With Flow Control 1" FPT 24V Applications:


  • Car Wash
  • General Industrial
  • Process Applications
  • Water Industries
  • HVAC

05FB009A1-1ECA Solenoid Valve N.C. With Flow Control 1" FPT 24V Specifications

Certifications
Mexico
Materials
Specifications
1" FPT "
Closed
24V AC
max. 120°F (49°C)
Glass Reinforced Nylon
10 - 150 psi
5 W
